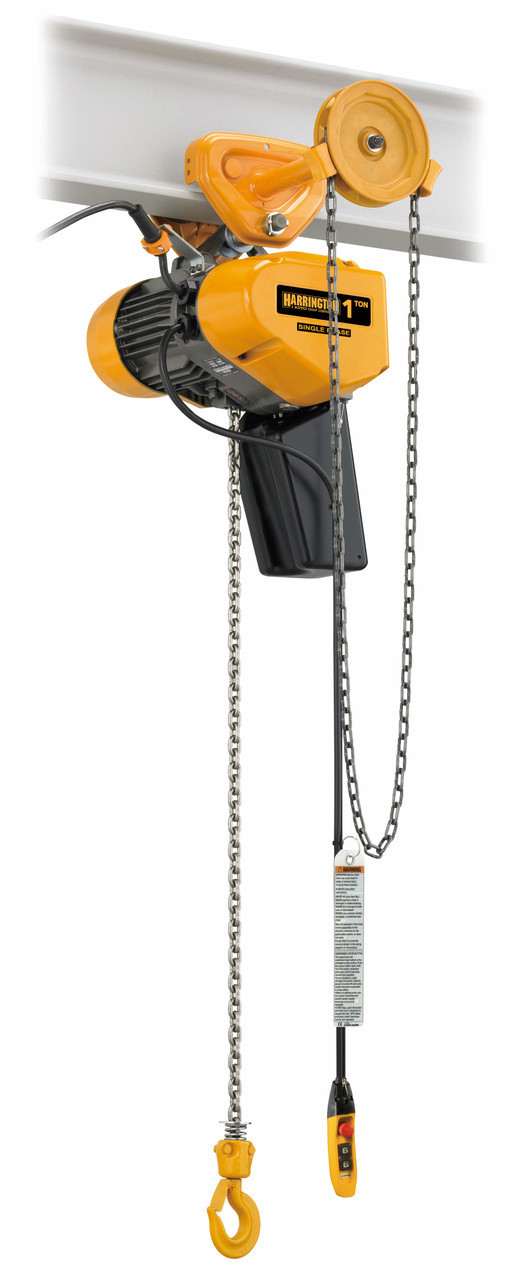

SEQG Electric Chain Hoist with Geared Trolley 15' Lift-Capacity 1 Tons EQG010SD Electric Chain Hoist with Geared Trolley HARRINGTON

Product Overview

The SEQG010SD-15 HARRINGTON SEQG Electric Chain Hoist with Geared Trolley 15' Lift isdesigned to enhance your lifting operations and provide you with a reliable and efficientsolution. This high-quality hoist combines the trusted performance of Harrington's SEQ Series single-phase dual-speed electric chain hoist with the added convenience of ageared trolley.With its VFD control, the SEQG010SD-15 allows you to transport loads with precision andefficiency. The variable frequency drive feature ensures smooth operation, reducing therisk of jerky movements or sudden stops. This makes it ideal for various applications,whether you're working in a warehouse, construction site, or manufacturing facility.One of the standout features of this electric chain hoist with geared trolley is its15' lift capacity. This allows you to easily reach heights and lift heavy loads withease. You can confidently tackle demanding lifting tasks knowing that this hoist isdesigned to handle Capacity ranging from 1 Tons.The SEQG010SD-15 HARRINGTON SEQG Electric Chain Hoist with Geared Trolley is built tolast. It is made from high-quality materials and features a rugged construction that canwithstand heavy-duty use. It is built to withstand the rigors of daily lifting operationsand is built to last.With its ease of use and economical design, this electric chain hoist with geared trolleyprovides a hassle-free lifting solution. Whether you're a professional or a DIY enthusiast,this hoist will help make your lifting tasks more efficient and enjoyable.Invest in the SEQG010SD-15 HARRINGTON SEQG Electric Chain Hoist with Geared Trolley andexperience the power of reliable lifting equipment. Don't settle for less when it comes tolifting heavy loads-choose a hoist that combines durability, precision, and convenience.Equip yourself with the SEQG010SD-15 HARRINGTON SEQG Electric Chain Hoist with Geared Trolleyand elevate your lifting operations to new heights.

Product Specifications

.

Part Number:

SEQG010SD-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 2,000 lb, 15 ft, Geared Trolley, Yellow=Hoist Mount=Geared Trolley

Includes:

Chain Container

Lift Speed:

17/3.9 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

19 19/64 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

3 9/16 in

Body Length:

19 5/16 in

Minimum Radius Curve:

51 1/4 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

19 5/16 in

Motor HP:

1.3 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

19 A

Number of Speeds:

2

Trolley Configuration:

Geared Trolley

Trolley Speed:

Not Applicable

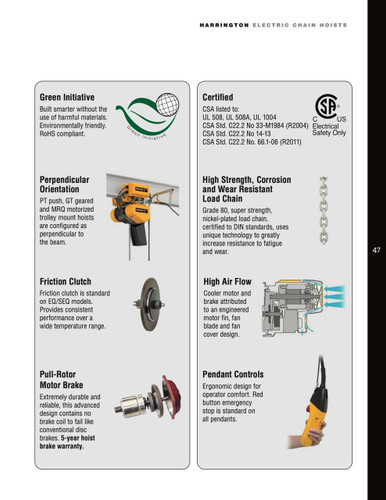

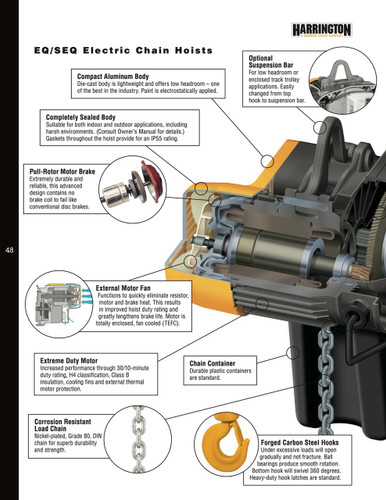

Features:

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

17 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.9 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Geared Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

19 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

19.5 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
