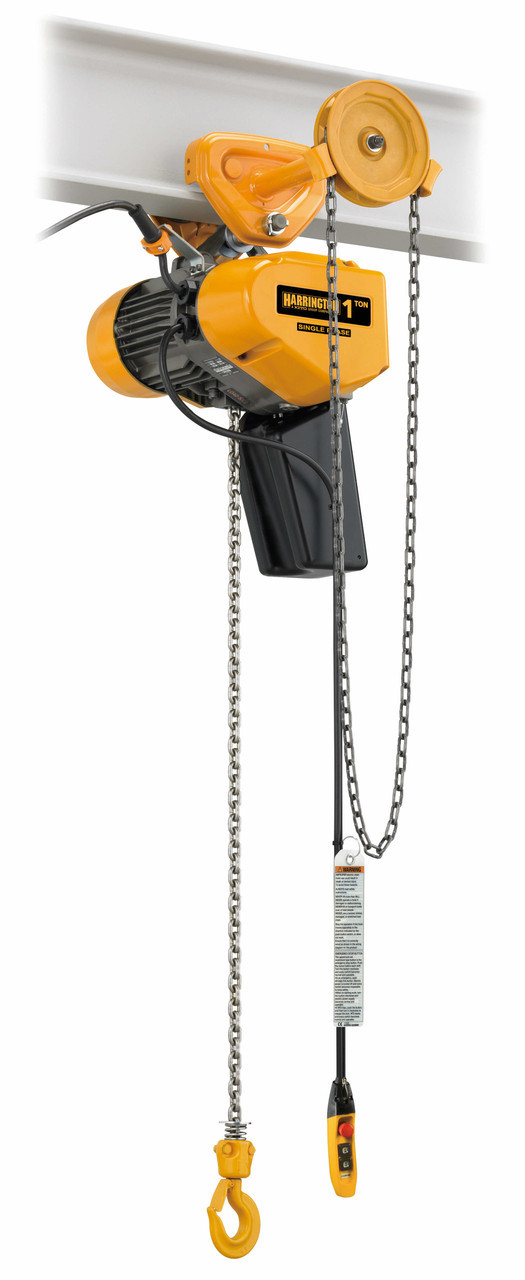

SEQG Electric Chain Hoist with Geared Trolley 10' Lift-Capacity 1 Tons EQG010SD Electric Chain Hoist with Geared Trolley HARRINGTON

Product Overview

Upgrade your lifting operations with the SEQG010SD-10 HARRINGTON SEQG Electric Chain Hoist with Geared Trolley. This powerful hoist is designed to efficiently and safely transport heavy loads in industrial settings. Equipped with a dual-speed feature and variable frequency drive control, the SEQG010SD-10 electric chain hoist allows for precise and controlled lifting and lowering of loads. This advanced technology ensures smooth and effortless load movement, making your work easier and more productive. With a lift capacity of 10 feet and Capacity ranging from 1 Tons this hoist provides the versatility and reliability needed for a wide range of lifting tasks. Whether you need to lift smaller loads or heavier objects, this hoist can handle it all. The seamless integration with the GT geared trolley enhances the performance of this hoist even further. The geared trolley allows for easy movement along the track, ensuring that the load is transported smoothly and safely. Safety is always a top priority, and the SEQG010SD-10 electric chain hoist with geared trolley is designed with safety features to protect both operators and the load. From adjustable upper and lower limit switches to overload protection, this hoist ensures safe and secure lifting operations. With its durable construction and reliable performance, the SEQG010SD-10 electric chain hoist with geared trolley is built to withstand the demands of industrial environments. Whether you are in manufacturing, construction, or logistics, this hoist will get the job done efficiently and effectively. Experience the advanced features and exceptional performance of the SEQG010SD-10 HARRINGTON SEQG Electric Chain Hoist with Geared Trolley today and take your lifting operations to a whole new level.

Product Specifications

.

Part Number:

SEQG010SD-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 2,000 lb, 10 ft, Geared Trolley, Yellow=Hoist Mount=Geared Trolley

Includes:

Chain Container

Lift Speed:

17/3.9 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

19 19/64 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

3 9/16 in

Body Length:

19 5/16 in

Minimum Radius Curve:

51 1/4 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

19 5/16 in

Motor HP:

1.3 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

19 A

Number of Speeds:

2

Trolley Configuration:

Geared Trolley

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

17 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.9 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Geared Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

19 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

19.5 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
