Product Overview

The SEQG001SD-15 HARRINGTON Electric Chain Hoist with Geared Trolley represents a pinnacle of engineering tailored for heavy lifting across various industries. This advanced electrically powered hoist is meticulously designed to deliver exceptional performance while ensuring safety and ease of use.

Boasting a 15-foot lift height and a versatile capacity of 1/8 tons, the SEQG001SD is suitable for a wide range of applications, from warehouse operations to construction tasks. The dual-speed operation, complemented by variable frequency drive (VFD) control, allows for smooth, precise lifting and lowering of loads, facilitating meticulous handling of even the heaviest of items.

Constructed with robust materials, this electric chain hoist promises durability and resilience against demanding work environments, thus ensuring it withstands rigorous daily operations without compromising on performance. Its user-friendly features simplify operation, making it accessible for both seasoned professionals and newcomers alike.

The integrated geared trolley allows for seamless movement along the beam, enhancing maneuverability and overall efficiency during lifting procedures. The combination of portability and dependable load management increases productivity, enabling workers to accomplish more in less time.

With a thoughtful design that prioritizes safety and reliability, the SEQG001SD Electric Chain Hoist with Geared Trolley is a long-term investment for those looking to elevate their lifting capabilities. Experience the convenience and effectiveness that comes with cutting-edge technology blended with years of industry expertise. Transform your lifting operations and trust the SEQG001SD to deliver superior results time after time, ensuring that no job is too tough to handle. Choose quality, choose reliability, and elevate your work with HARRINGTON‚ exceptional electric chain hoist solution.

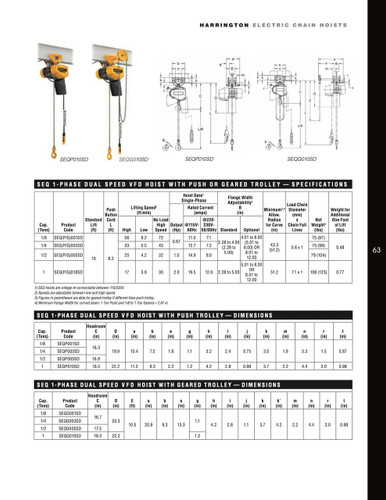

Product Specifications

.

Part Number:

SEQG001SD-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 250 lb, 15 ft, Geared Trolley, Yellow=Hoist Mount=Geared Trolley

Includes:

Chain Container

Lift Speed:

56/9.3 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

16 45/64 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

16 23/32 in

Minimum Radius Curve:

51 1/4 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 11/16 in

Load Capacity:

250 lb

Minimum Between Hooks:

16 7/16 in

Motor HP:

0.67 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

10.8 A

Number of Speeds:

2

Trolley Configuration:

Geared Trolley

Trolley Speed:

Not Applicable

Features:

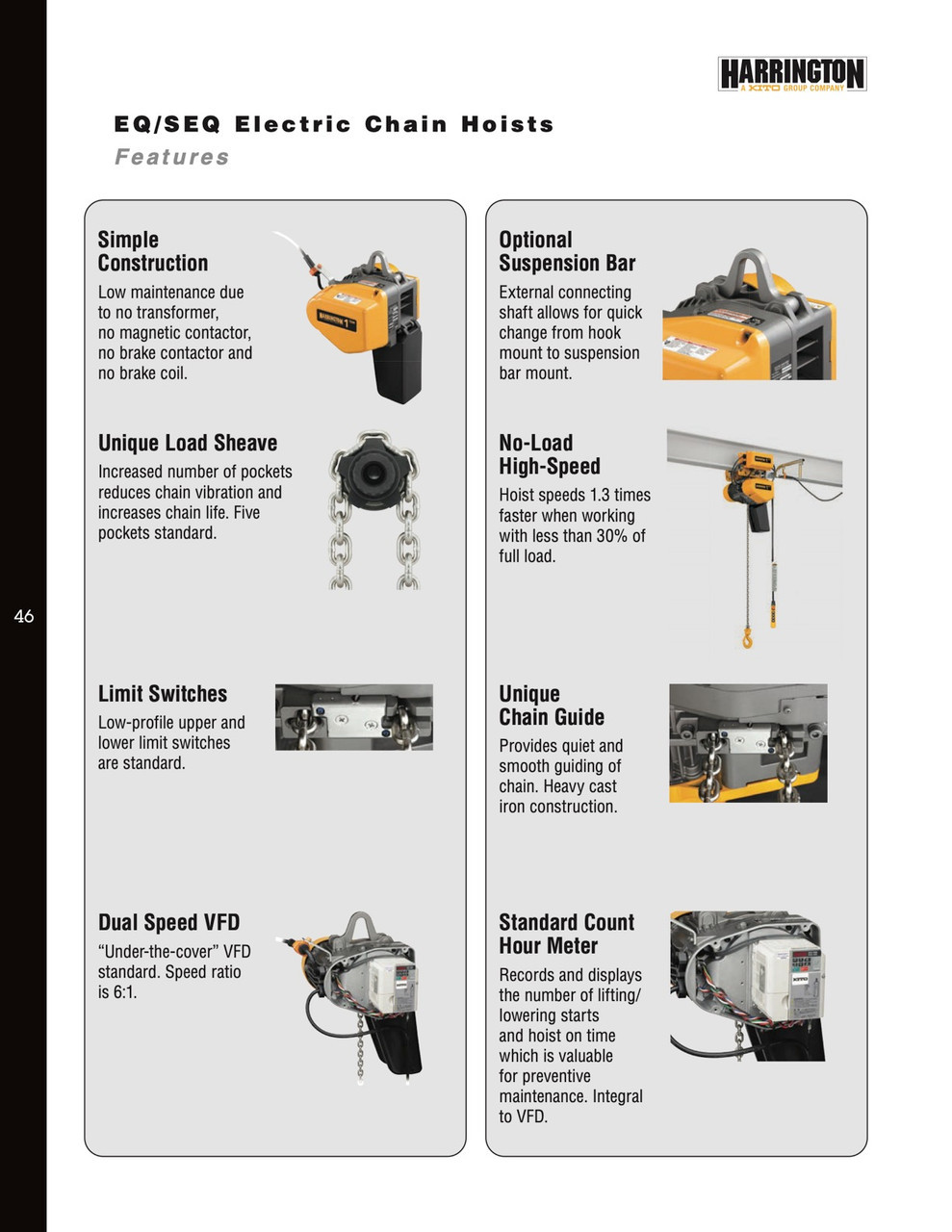

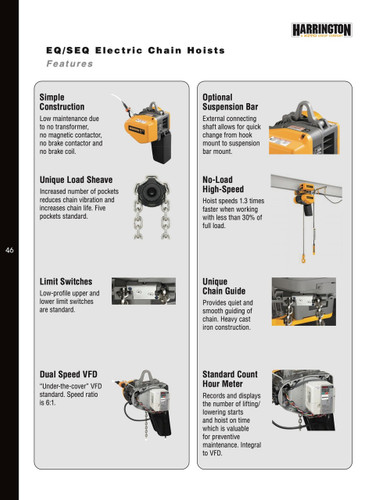

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

56 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

9.3 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Geared Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

16 13/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

250 lb

Current at Minimum Voltage:

0.458333333333333

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

7.1 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
