Part Number
Part Number SEQ010SD-15
Color Yellow
Hoist Lift 15 ft

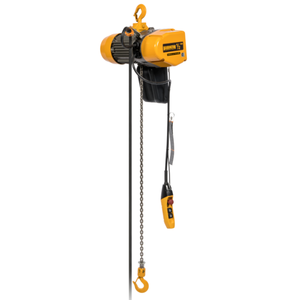

Product Electric Chain Hoist, 2,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes Chain Container
Lift Speed 17/3.9 fpm
Housing Width 15 29/32 in
Manufacturers Warranty Length 3 yr
Housing Depth 9 39/64 in
Housing Length 20 45/64 in
For Minimum Beam Flange Width Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 3 yr
Body Width 15 29/32 in
Body Depth 9 5/8 in
For Minimum Beam Height 15 in
Body Length 20 23/32 in
Minimum Radius Curve 10 in
Maximum Lifting Length 15 ft
Controller Cord Length 11 ft
Trolley Wheel Diameter Not Applicable
Lifting Hook Opening Width 1 3/16 in
Minimum Retracted Length 20 11/16 in
Load Capacity 2,000 lb
Minimum Between Hooks 17 5/16 in
Motor HP 1.3 hp
Phase 1
Standards ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage 115V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 1
Thermal Protection Yes
Control 110v
Control Cord 11 ft
Amps @ Low Volts 19 A
Number of Speeds 2
Trolley Configuration Hook Mounted
Trolley Speed Not Applicable

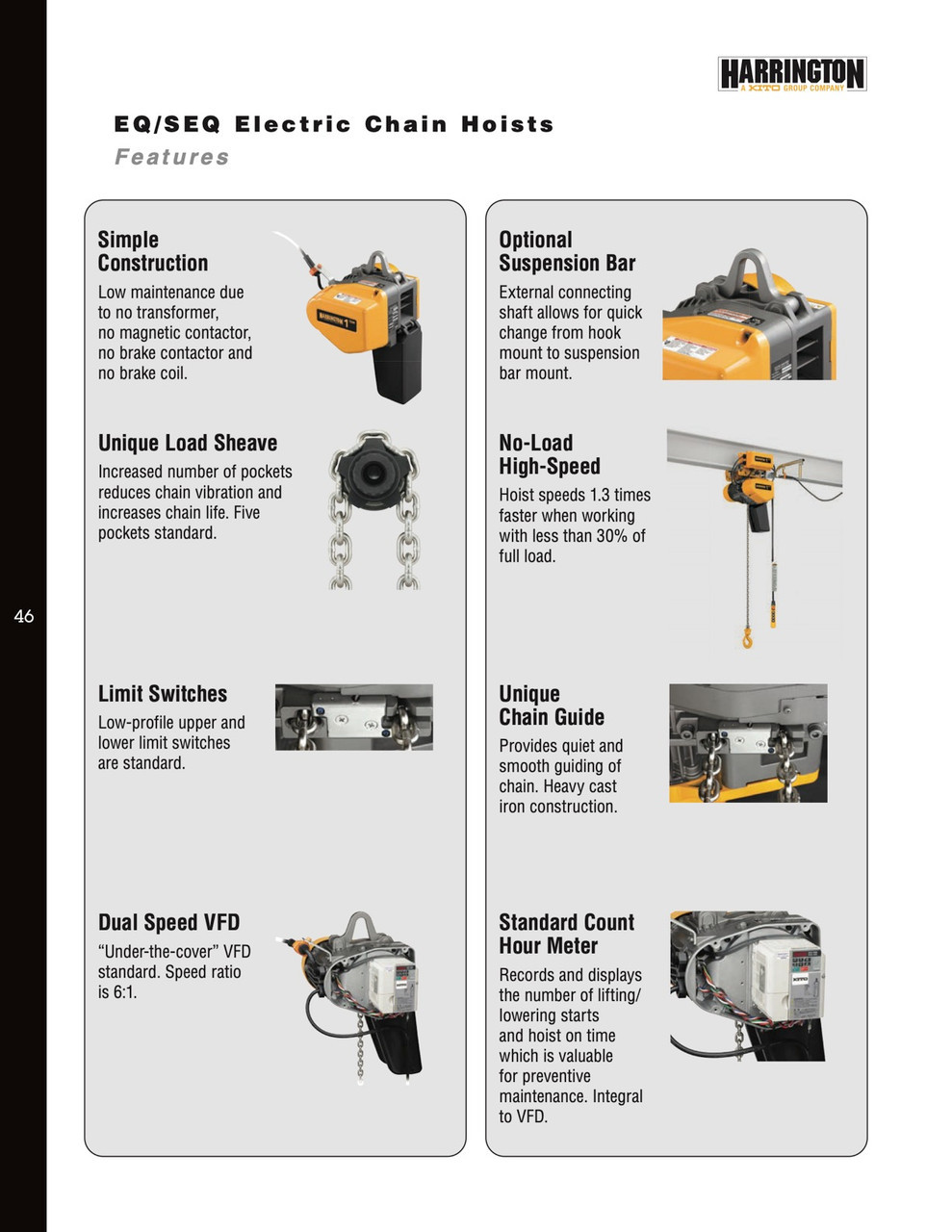

Features No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type Pull Rotor
Chain Grade Grade 80
Maximum Lift Speed 17 fpm
Included Components Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed Not Applicable
Clutch Type Friction
Minimum Lift Speed 3.9 fpm
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour 120, 240
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Motor Horsepower 1 1/4 hp
Headroom 17 5/16 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 2,000 lb
Current at Minimum Voltage 19.5 A
Trolley Wheel Material Not Applicable
Current at Maximum Voltage 0
Body Finish Epoxy Painted
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Programmable by Internal Controls
