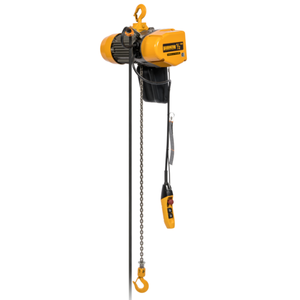

SEQ Electric Hoist 20' Lift-Capacity 1/2 Tons EQ005SD Electric Hoist HARRINGTON

Product Overview

The SEQ005SD-20 HARRINGTON SEQ Electric Hoist 20' Lift is a powerful and versatile solution for medium-and heavy-duty industrial applications. With its innovative single-phase dual-speed (VFD Control) technology, this electric chain hoist offers effortless installation and operation.Designed by Harrington, a trusted name in the industry, this hoist is built to last. Its durable construction ensures long-lasting performance, making it a reliable choice for your lifting needs. With a lift capacity of 20', this electric hoist allows you to reach new heights, giving you the flexibility to tackle a wide range of lifting tasks. Whether you need to lift heavy machinery, equipment, or materials, the SEQ005SD-20 has got you covered.The dual-speed capability of this hoist provides added convenience and control. You can easily switch between speeds to match the requirements of your specific application, ensuring efficient and precise lifting.Installation of the SEQ005SD-20 HARRINGTON SEQ Electric Hoist is a breeze thanks to its user-friendly design. The VFD Control technology further simplifies the process, allowing for quick and hassle-free setup.Once installed, operating this electric hoist is also seamless. Its intuitive controls make it easy to maneuver and lift heavy loads with precision and safety. You can count on the SEQ005SD-20 to get the job done efficiently and effectively.Whether you're working in a factory, warehouse, construction site, or any other industrial setting, the SEQ005SD-20 HARRINGTON SEQ Electric Hoist 20' Lift is the ideal solution for your lifting needs. Its power, versatility, and reliability make it the perfect choice for any medium-to heavy-duty lifting task. Trust in Harrington's expertise and experience the superior performance of the SEQ005SD electric hoist.

Product Specifications

.

Part Number:

SEQ005SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 1,000 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

25/4.2 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

18 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

15 in

Body Length:

18 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

18 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

17 5/16 in

Motor HP:

1 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control:

16 ft

Control Cord:

16 ft

Amps @ Low Volts:

14.8 A

Number of Speeds:

2

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

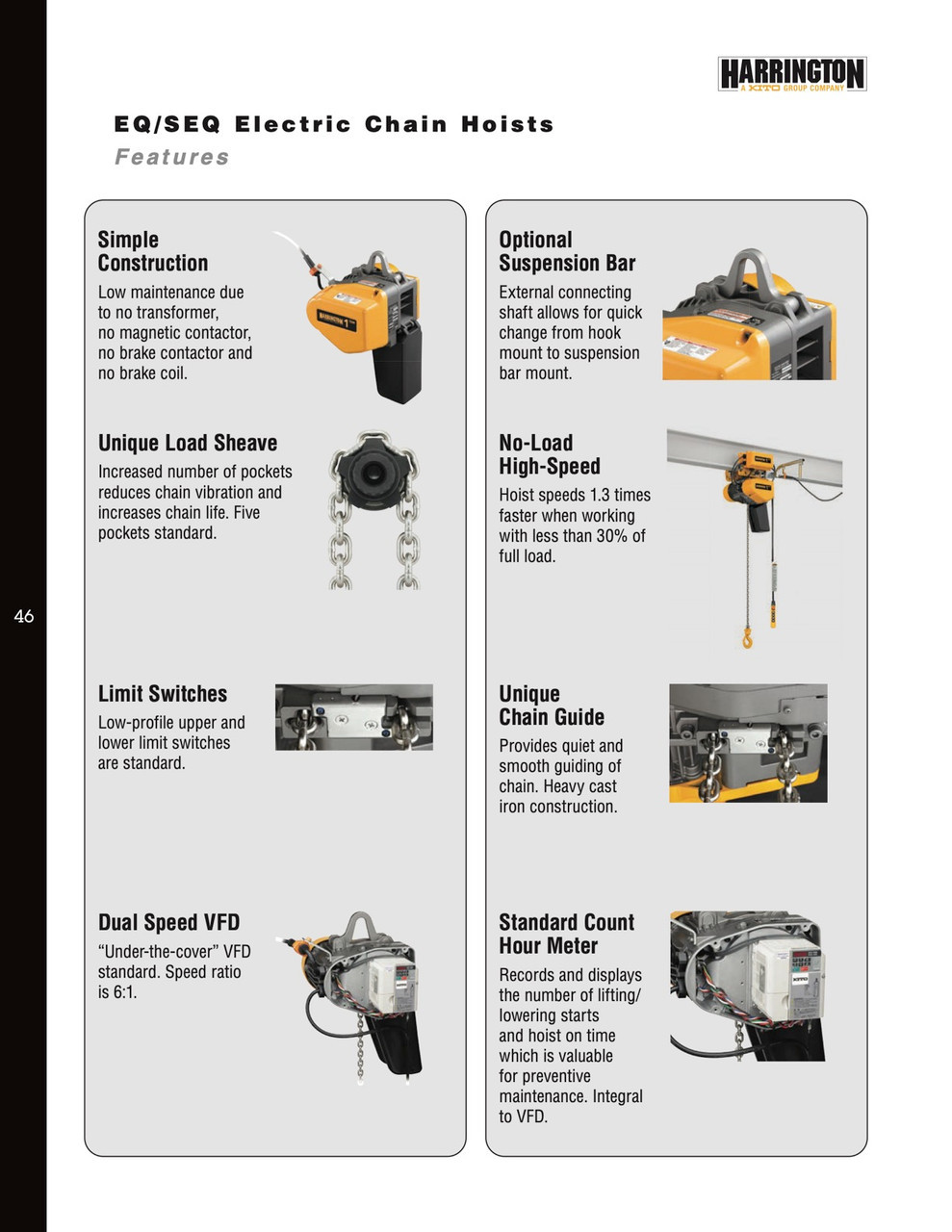

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

25 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

4.2 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

14.9 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.375

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
