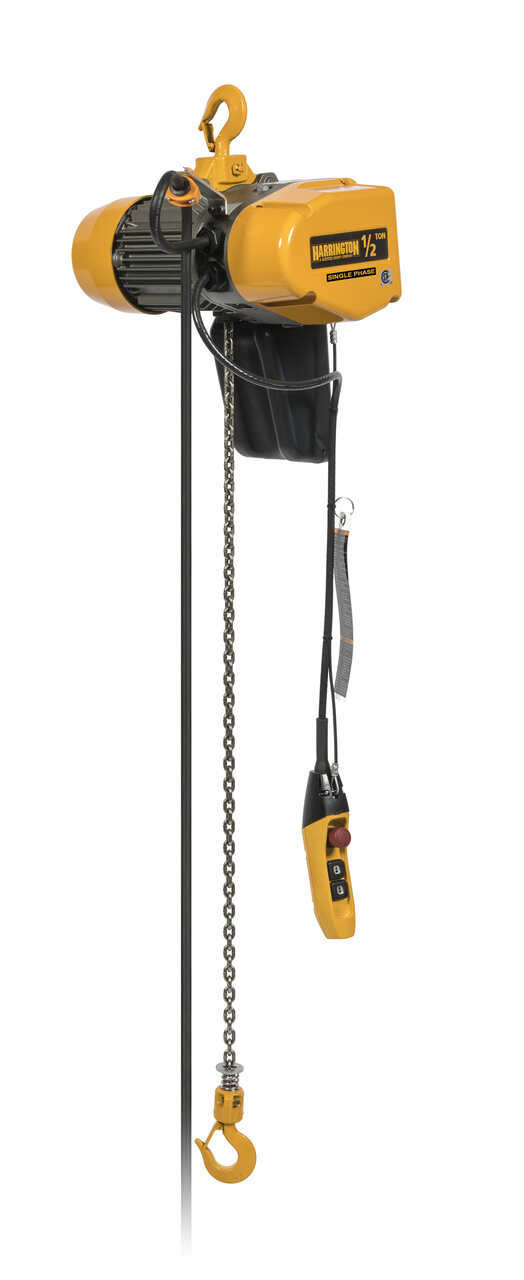

SEQ Electric Hoist 10' Lift-Capacity 1/2 Tons EQ005SD Electric Hoist HARRINGTON

Product Overview

The SEQ005SD-10 HARRINGTON SEQ Electric Hoist is engineered for exceptional power and versatility, making it a vital asset for various lifting applications. With a robust 10-foot lift capacity and a dependable 1/2-ton load capability, this electric chain hoist excels in meeting the demands of medium-to-heavy-duty industrial tasks effortlessly.

A standout feature of the SEQ005SD-10 is its cutting-edge single-phase dual-speed (VFD Control) system. This innovative technology allows for precise control over lifting speed and performance, making it easy to manage different load types with absolute accuracy. Whether you are lifting heavy machinery or moving lighter materials, this hoist delivers consistent power and efficiency.

Constructed with durability in mind, the SEQ005SD-10 is designed to endure the rigors of harsh working environments. Its solid build ensures reliability over time, so you can depend on its performance no matter how challenging your lifting tasks are. This hoist is not just about strength; it is crafted to deliver long-lasting service, even in the most demanding situations.

Ease of use is another highlight of the SEQ005SD-10. Featuring intuitive controls, even those new to hoisting equipment will find it straightforward to operate. This user-friendly design promotes efficiency, allowing you to focus on your work without unnecessary delays.

Installation is hassle-free, allowing you to set up the SEQ005SD-10 quickly and with minimal disruption to your operations. This makes it an ideal choice for businesses looking to enhance their lifting capabilities without extensive downtime.

Elevate your industrial lifting capabilities with the SEQ005SD-10 HARRINGTON SEQ Electric Hoist. Experience cutting-edge power, precision, and unmatched durability, ensuring that your lifting requirements are met with ease and excellence.

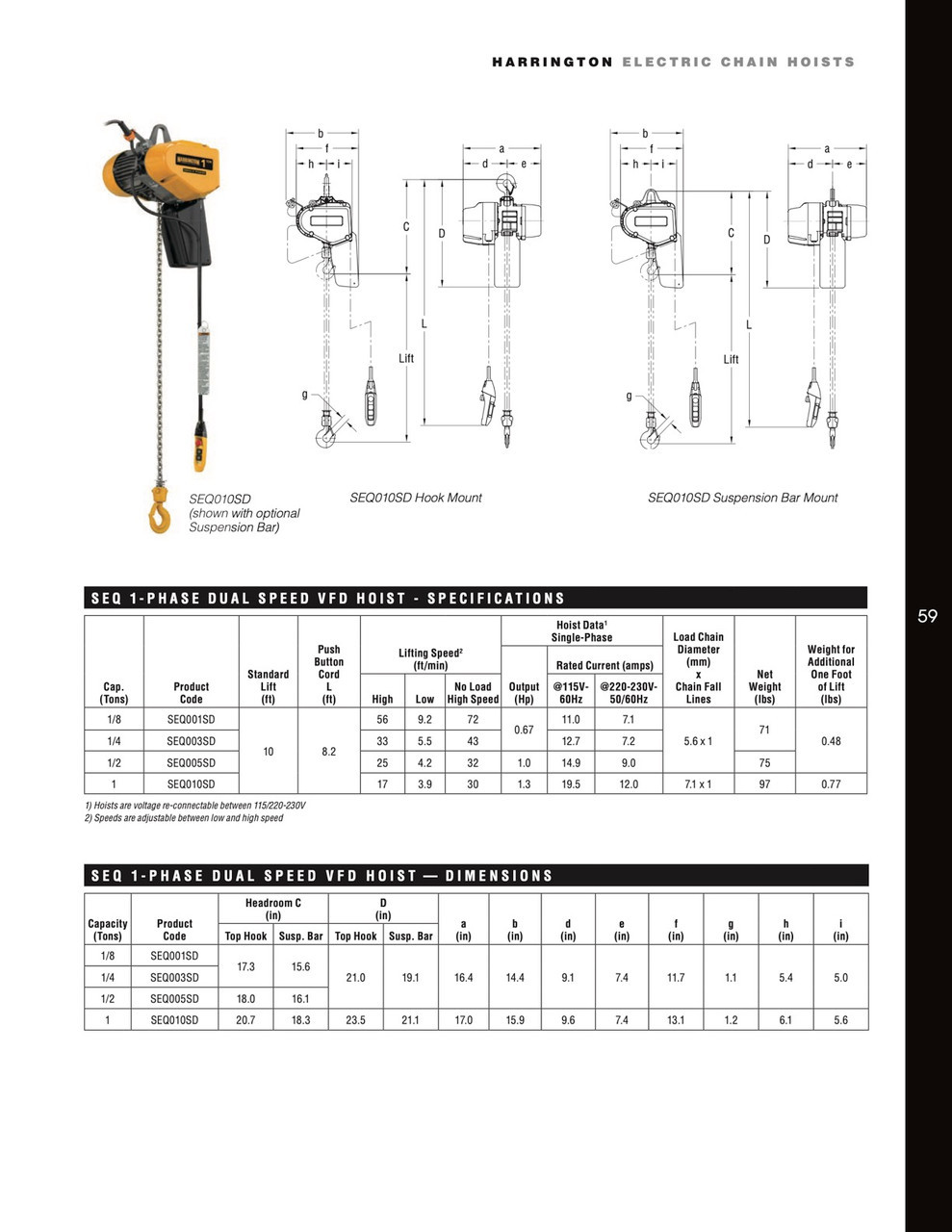

Product Specifications

.

Part Number:

SEQ005SD-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 1,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

25/4.2 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

18 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

15 in

Body Length:

18 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

18 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

18 in

Motor HP:

1 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

14.8 A

Number of Speeds:

2

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

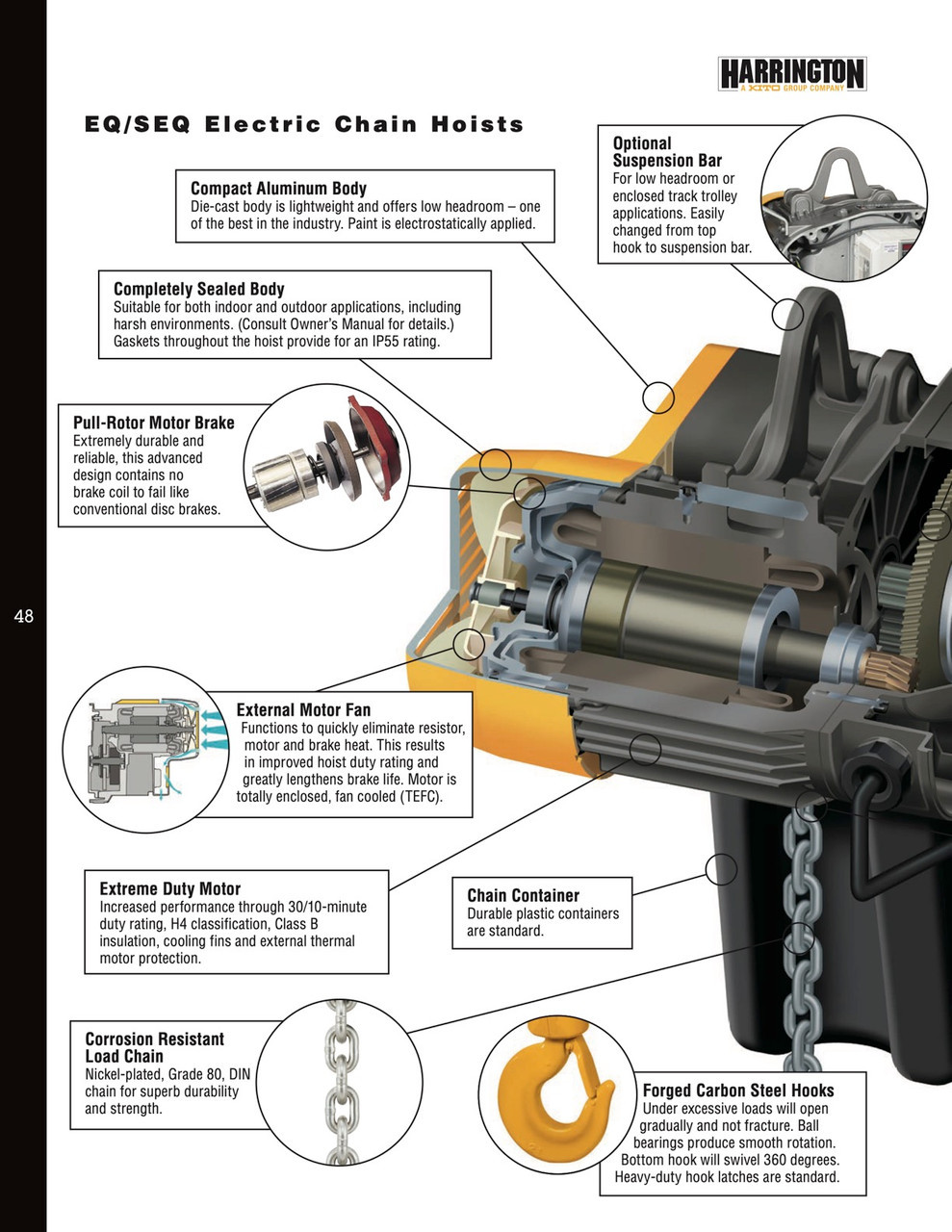

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

25 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

4.2 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

14.9 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.375

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
