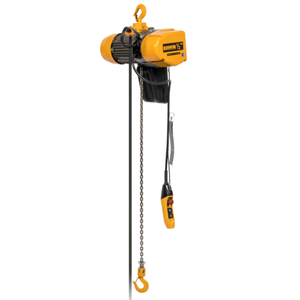

SEQ Electric Hoist 20' Lift-Capacity 1/4 Tons EQ003SD Electric Hoist HARRINGTON

Product Overview

The SEQ003SD-20 HARRINGTON SEQ Electric Hoist is the ultimate solution for medium-and heavy-duty industrial applications. This electric chain hoist features advanced VFD control and dual-speed capabilities, making installation and operation a breeze. With a 20-foot lift and load Capacity 1/4 Tons, this hoist offers impressive performance that will meet the demands of any job.With its state-of-the-art design, the SEQ003SD-20 HARRINGTON SEQ Electric Hoist ensures efficiency and reliability. This hoist is built to last and is capable of performing even the toughest tasks with ease. Its advanced VFD control allows for precise handling and operation, making it the perfect choice for precision work.The dual-speed capabilities of this hoist provide flexibility and adaptability. Whether you need to lift heavy loads quickly or require slower and more controlled movements, the SEQ003SD-20 HARRINGTON SEQ Electric Hoist can handle it all. This feature allows you to easily adjust the speed based on your specific needs, improving productivity and workflow.Not only is the SEQ003SD-20 HARRINGTON SEQ Electric Hoist efficient and reliable, but it is also designed with safety in mind. It is equipped with a range of safety features, including a thermal motor protection system and a limit switch that prevents overhoisting or overlowering. These features ensure the safety of both the operator and the load being lifted.Upgrade your workflow today with the SEQ003SD-20 HARRINGTON SEQ Electric Hoist. Experience unmatched performance, precision, and reliability with this state-of-the-art hoisting equipment. Whether you're lifting heavy machinery or working on a construction site, this electric chain hoist will meet all your lifting needs. Don't settle for ordinary hoists when you can have the best. Invest in the SEQ003SD-20 HARRINGTON SEQ Electric Hoist and take your industrial applications to the next level.

Product Specifications

.

Part Number:

SEQ003SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 500 lb., 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

33/5.5 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

17 19/64 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

15 in

Body Length:

17 5/16 in

Minimum Radius Curve:

10 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

17 5/16 in

Load Capacity:

500 lb.

Minimum Between Hooks:

17 5/16 in

Motor HP:

0.67 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

12.3 A

Number of Speeds:

2

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

33 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

5.5 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

12.7 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

7.2 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
