SKU:
SEQ001SD-15-15
Condition:
New
Availability:
In stock
Weight:
46.50 LBS
Shipping:
Free Shipping
Part Number:
SEQ001SD-15
Color:
Yellow
Hoist Lift:
15 ft
Product:

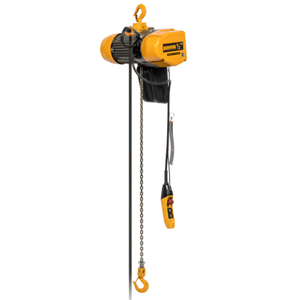

Electric Chain Hoist, 250 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes:
Chain Container
Lift Speed:
56/9.3 fpm
Housing Width:
14 13/32 in
Manufacturers Warranty Length:
3 yr
Housing Depth:
9 7/64 in
Housing Length:
17 19/64 in
For Minimum Beam Flange Width:
Not Applicable
For Maximum Beam Flange Width:
Not Applicable
For Maximum Beam Height:
Not Applicable
MFR Warranty Length:
3 yr
Body Width:
14 13/32 in
Body Depth:
9 1/8 in
For Minimum Beam Height:
15 in
Body Length:
17 5/16 in
Minimum Radius Curve:
10 in
Maximum Lifting Length:
15 ft
Controller Cord Length:
11 ft
Trolley Wheel Diameter:
Not Applicable
Lifting Hook Opening Width:
1 3/32 in
Minimum Retracted Length:
17 5/16 in
Load Capacity:
250 lb
Minimum Between Hooks:
17 5/16 in
Motor HP:
0.67 hp
Phase:
1
Standards:
ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage:
115V
Fits Brand:
Harrington Hoists Inc
Lubrication:
Oil Bath
Reeving:
1
Thermal Protection:
Yes
Control Cord:
11 ft
Amps @ Low Volts:
10.8 A
Number of Speeds:
2
Trolley Configuration:
Hook Mounted
Trolley Speed:
Not Applicable
Features:
No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material:
Carbon Steel
Includes Clutch:
Clutch Included
Overload Protection Included:
Yes
Brake Type:
Pull Rotor
Chain Grade:
Grade 80
Maximum Lift Speed:
56 fpm
Included Components:
Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed:
Not Applicable
Clutch Type:
Friction
Minimum Lift Speed:
9.3 fpm
Pendant IP Rating:
IP65
Chain Finish:
Nickel Plated
Controls:
Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour:
120, 240
Duty Classification:
H4
Maximum Pulling Capacity:
Not Applicable
Number of Reeves:
1
Motor Horsepower:
5/8 hp
Headroom:
17 5/16 in
Includes Brake:
Brake Included
For Outdoor Use:
Yes
Hoist IP Rating:
IP55
Lifting Hook Type:
Swivel Hook with Safety Latch
Maximum Lifting Capacity:
250 lb
Current at Minimum Voltage:
0.458333333333333
Trolley Wheel Material:
Not Applicable
Current at Maximum Voltage:
7.1 A
Body Finish:
Epoxy Painted
Number of Load Chains:
1
Body Material:
Aluminum
Trolley IP Rating:
Not Applicable
Programmable:
Programmable by Internal Controls
