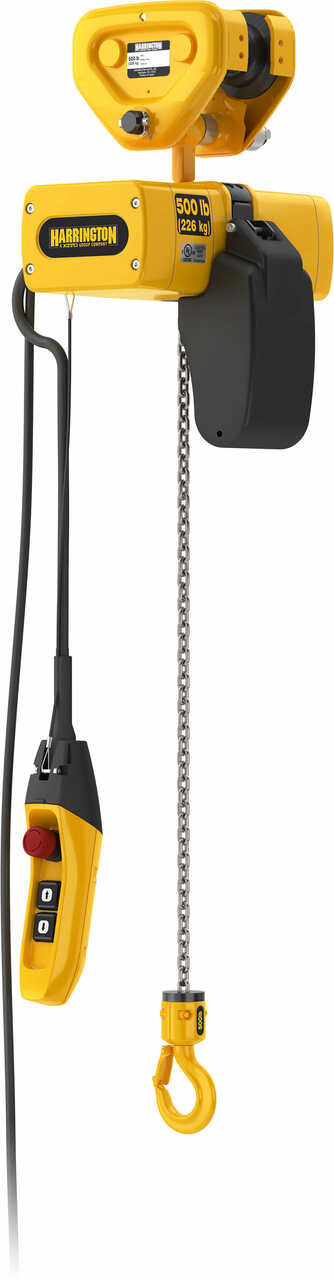

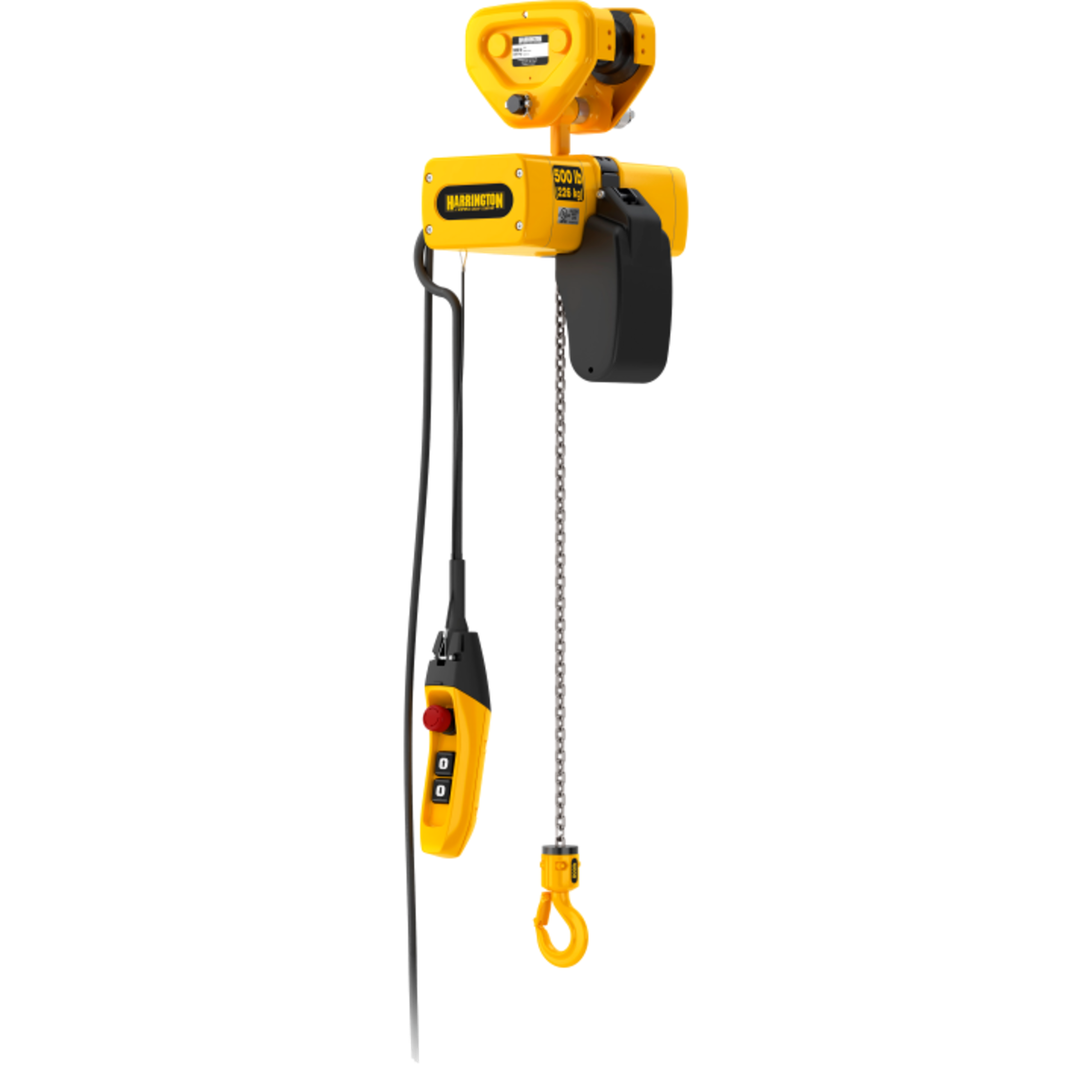

SEMP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1000 Lbs SEMP005C Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SEMP Electric Chain Hoist with Push Trolley (SEMP005C-20) redefines material handling efficiency, making it an essential tool for industries that demand reliability and power. With an impressive 20-foot lift and a robust 1000 lbs capacity, this electric chain hoist effortlessly tackles heavy lifting tasks, whether in construction, manufacturing, or warehouse operations.

Featuring a durable PT push trolley, the SEMP005C-20 provides unmatched versatility and adaptability within your workspace. This innovative trolley design allows for easy repositioning, so you can transport materials without the strain of manual labor. By prioritizing efficiency, this hoist streamlines your operations, enabling quicker job completions while enhancing safety.

Crafted with durability in mind, the SEMP005C-20 is engineered to withstand rigorous daily use. Its high-quality components ensure smooth and reliable performance, allowing operators to concentrate on their work rather than equipment reliability. This electric chain hoist not only increases productivity but also minimizes the risk of injury associated with manual lifting.

Investing in the SEMP005C-20 means investing in a powerful and dependable lifting solution that simplifies your workload. This hoist is not just a tool; it's a long-term ally in your pursuit of operational excellence. By automating your heavy-duty lifting tasks, you save both time and effort, allocating resources to more critical aspects of your business.

Transform your material handling capabilities with the SEMP005C-20 HARRINGTON Electric Chain Hoist with Push Trolley. Elevate your workplace with advanced technology designed for efficiency and sustainability. With the SEMP005C-20, elevate your potential and move forward with confidence in your operational toolbox. Don‚t compromise; make the superior choice in hoisting solutions today.

Product Specifications

.

Part Number:

SEMP005C-20

Color:

Yellow

Hoist Lift:

1

Product:

Electric Hoists=Hoist Mount=

Includes:

3 1/2 in

For Minimum Beam Flange Width:

2 9/32 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

5 yr

Body Width:

11 1/2 in

Body Depth:

9 13/32 in

For Minimum Beam Height:

3 1/2 in

Body Length:

11 1/2 in

Minimum Radius Curve:

43 5/16 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

8 3/16 ft

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

14 5/16 in

Phase:

1

Control:

LED Error Indicator, Protects the Hoist from Over winding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chai

Number of Speeds:

1

Features:

LED Error Indicator, Protects the Hoist from Over winding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chai

Lifting Hook Material:

Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Electromagnetic

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Rubber Bumpers

Fixed Lift Speed:

6 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

=Mount Type=Push Trolley

Starts and Stops per Hour:

300

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Motor Horsepower:

1/4 hp

Headroom:

14 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP65

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

4.6 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.3 A

Number of Load Chains:

1

Body Material:

Die-Cast Aluminum

Programmable:

Non-Programmable
