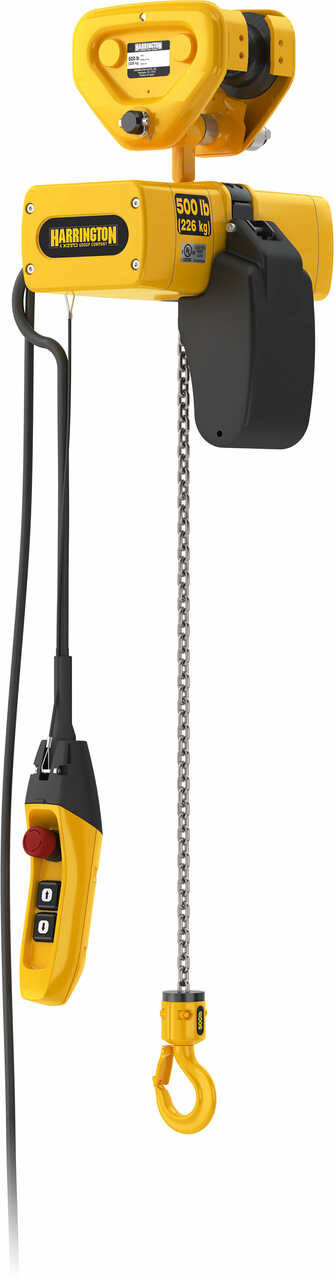

The SEMP005C-10 HARRINGTON SEMP Electric Chain Hoist with Push Trolley is the ultimate tool for all your material handling needs. Designed specifically for areas with single-phase power and infrequent moves, this hoist is both reliable and efficient.With a lifting capacity 1000 lbs, this electric chain hoist can effortlessly handle even the heaviest loads. No more struggling to transport materials from one location to another-with the SEMP005C-10, it's a breeze. The 10-foot lift provides ample reach, making it easy to move materials across various distances.The compact design of this hoist means that it won't take up too much space in your workspace. Whether you need to move materials in a small workshop or a large warehouse, this hoist is the perfect solution. And with the push trolley compatibility, you have even more versatility in its use. Easily attach the push trolley and maneuver your materials with ease.Investing in the SEMP005C-10 HARRINGTON SEMP Electric Chain Hoist with Push Trolley means streamlining your operations. No more wasting time and energy on manual lifting-let this hoist do the hard work for you. Increase productivity and efficiency in your workplace with this high-quality electric chain hoist.Don't settle for less when it comes to your material handling tasks. Trust in the SEMP005C-10 HARRINGTON SEMP Electric Chain Hoist with Push Trolley to get the job done. With its reliable performance, versatile design, and impressive lifting capacity, this hoist is the perfect addition to any workplace. Upgrade your material handling equipment today and experience the ease and efficiency of the SEMP005C-10.
Product Specifications
.
Part Number:
SEMP005C-10
Color:
Yellow
Hoist Lift:
1
Product:
Electric Hoists=Hoist Mount=1
Includes:
4.6 A
Lift Speed:
11 1/2 in
For Minimum Beam Flange Width:
2 9/32 in
For Maximum Beam Flange Width:
4 in
For Maximum Beam Height:
Not Applicable
MFR Warranty Length:
5 yr
Body Width:
11 1/2 in
Body Depth:
9 13/32 in
For Minimum Beam Height:
3 1/2 in
Body Length:
11 1/2 in
Minimum Radius Curve:
43 5/16 in
Maximum Lifting Length:
10 ft
Controller Cord Length:
8 3/16 ft
Lifting Hook Opening Width:
29/32 in
Minimum Retracted Length:
14 5/16 in
Phase:
1
Clutch:
Clutch Included
Number of Speeds:
1
Features:
LED Error Indicator, Protects the Hoist from Over winding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chai
Lifting Hook Material:
Steel
Includes Clutch:
Clutch Included
Overload Protection Included:
Yes
Brake Type:
Electromagnetic
Chain Grade:
Grade 80
Maximum Lift Speed:
Not Applicable
Included Components:
Chain Container, Pendant, Rubber Bumpers
Fixed Lift Speed:
6 fpm
Clutch Type:
Friction Clutch
Minimum Lift Speed:
Not Applicable
Pendant IP Rating:
IP65
Chain Finish:
Nickel Plated
Controls:
Push Button Pendant=Mount Type=Push Trolley
Starts and Stops per Hour:
300
Duty Classification:
H4
Maximum Pulling Capacity:
Not Applicable
Number of Reeves:
2
Motor Horsepower:
1/4 hp
Headroom:
14 5/16 in
Includes Brake:
Brake Included
For Outdoor Use:
Yes
Hoist IP Rating:
IP65
Lifting Hook Type:
Hook with Safety Latch
Maximum Lifting Capacity:
1,000 lb
Current at Minimum Voltage:
4.6 A
Trolley Wheel Material:
Steel
Current at Maximum Voltage:
2.3 A
Number of Load Chains:
1
Body Material:
Aluminum
Programmable:
Non-Programmable
