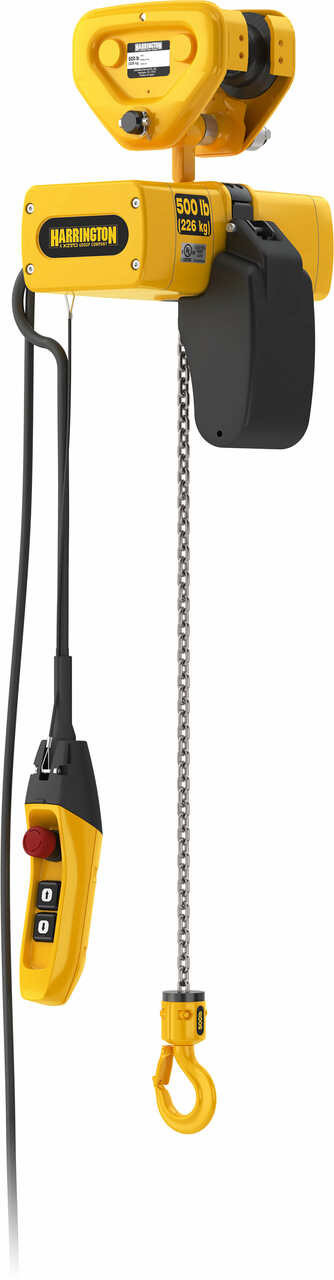

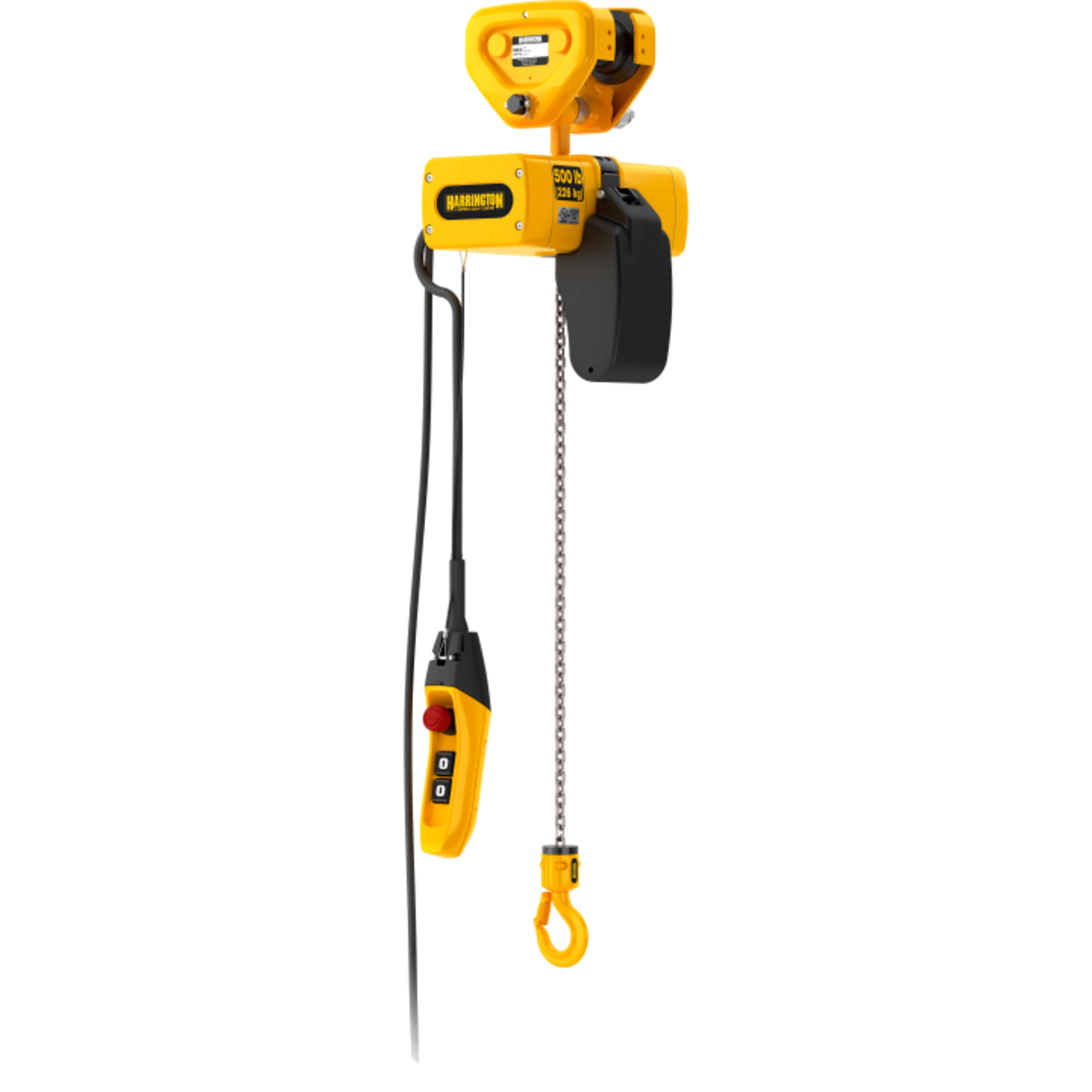

SEMP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 500 Lbs SEMP003L Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

Enhance your material handling efficiency with the SEMP003L-20 HARRINGTON Electric Chain Hoist featuring a Push Trolley. This cutting-edge hoist is engineered to transport loads of up to 500 lbs effortlessly, making it an ideal solution for a wide range of light to medium-duty applications. Boasting a remarkable 20' lift capacity, the SEMP003L-20 allows for seamless material movement between various work zones, streamlining your operations and boosting productivity.

The hoist operates with a powerful single-phase motor, ensuring smooth and reliable performance even in demanding environments. With the addition of a conveniently designed push trolley, maneuvering heavy loads becomes a breeze, enabling flexibility and ease when navigating tight spaces. The robust construction of the SEMP003L-20 prioritizes safety, featuring a durable braking system that ensures unwavering load stability during operation. Its expertly designed load chain resists twisting, significantly minimizing the risk of accidents and protecting your materials.

Safety features extend to the built-in limit switch, which effectively prevents overtravel, safeguarding both the operator and the load. This hoist is crafted from high-quality, corrosion-resistant materials, promising longevity and durability for many years of use. Its compact and lightweight design facilitates easy transport and storage, allowing you to conveniently take the hoist to any job site or location.

User-friendly controls and straightforward setup mean you can begin operating the SEMP003L-20 in no time at all. Ideal for warehouses, construction sites, and other industrial settings, this electric chain hoist is designed to meet and exceed your expectations. Elevate your lifting capabilities and experience unmatched reliability and performance with the SEMP003L-20 HARRINGTON Electric Chain Hoist with Push Trolley‚ where efficiency meets safety, making your material handling tasks effortless.

Product Specifications

.

Part Number:

SEMP003L-20

Color:

Yellow

Hoist Lift:

1

Product:

Electric Hoists=Hoist Mount=1

Includes:

12 3/16 in

For Minimum Beam Flange Width:

2 9/32 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

5 yr

Body Width:

11 1/2 in

Body Depth:

7 29/32 in

For Minimum Beam Height:

3 1/2 in

Body Length:

11 1/2 in

Minimum Radius Curve:

43 5/16 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

8 3/16 ft

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

12 3/16 in

Phase:

1

Number of Speeds:

1

Features:

LED Error Indicator, Protects the Hoist from Over winding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chai

Lifting Hook Material:

Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Electromagnetic

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Rubber Bumpers

Fixed Lift Speed:

12 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

300

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1/4 hp

Headroom:

12 3/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP65

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

4.6 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.3 A

Number of Load Chains:

1

Body Material:

Die-Cast Aluminum

Programmable:

Non-Programmable
