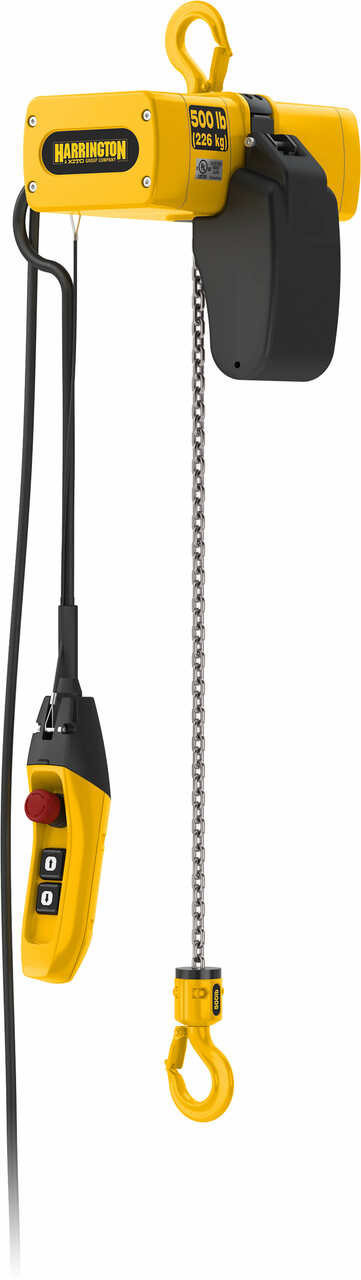

SEM Electric Hoist 20' Lift-Capacity 500 Lbs SEM003L Electric Hoist HARRINGTON

Product Overview

The SEM Electric Hoist SEM003L-20 HARRINGTON offers a seamless solution for heavy lifting in constrained spaces. With a robust lift capacity of 500 lbs and an impressive lift height of 20 feet, this compact electric hoist is engineered for efficiency and reliability. It is perfectly suited for various applications, including lifting machinery, moving materials, or facilitating intricate work environments.

Incorporating advanced Solid State Relay (SSR) technology alongside a microcontroller unit (MCU), this hoist promises durability and unfailing operation. Designed for single-phase power, the SEM003L-20 makes it easy to utilize in homes, workshops, or industrial settings where power sources may be limited.

The user-friendly design ensures that even those with minimal experience can operate the hoist effortlessly. Its lightweight structure simplifies portability, making it ideal for moving between job sites or repositioning within the same area. Whether you're a small business owner seeking to optimize your workflow or a DIY enthusiast tackling larger projects, the SEM003L-20 is an invaluable addition to your toolkit.

Investing in the SEM003L-20 HARRINGTON SEM Electric Hoist translates to enhanced productivity and elevated safety standards. By eliminating manual lifting, this hoist not only protects your workforce from potential injuries but also maximizes efficiency, allowing for quicker project completions.

Experience the difference that advanced engineering can make in your lifting tasks. The SEM Electric Hoist SEM003L-20 stands out for its reliable performance, making it the go-to choice for those seeking a dependable lifting solution. Elevate your operational capabilities and rediscover the benefits of modern lifting technology by choosing the SEM003L-20 – the perfect blend of power, efficiency, and safety in a compact form.

Product Specifications

.

Part Number:

SEM003L-20

Color:

Yellow

Hoist Lift:

1

Product:

Electric Hoists=Hoist Mount=1

Includes:

Friction Clutch

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

5 yr

Body Width:

11 1/2 in

Body Depth:

7 29/32 in

For Minimum Beam Height:

Not Applicable

Body Length:

11 1/2 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

11 19/32 in

Phase:

1

Voltage:

4.6 A

Number of Speeds:

1

Features:

LED Error Indicator, Protects the Hoist from Over winding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chai

Lifting Hook Material:

Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Electromagnetic

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Rubber Bumpers

Fixed Lift Speed:

12 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

300

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1/4 hp

Headroom:

11 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP65

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

4.6 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

2.3 A

Number of Load Chains:

1

Body Material:

Die-Cast Aluminum

Programmable:

Non-Programmable
