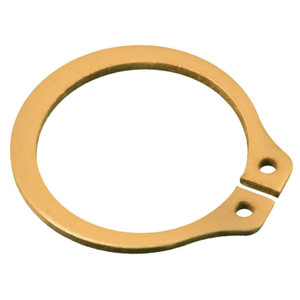

Retaining Ring “ SKU: 653 The Drum Shaft Locking Set That Keeps Your 3-Ton Hoist Assembly Secured at Full Load In precision mechanical assemblies under extreme loads, it's the smallest components that prevent catastrophic movement. The Retaining Ring (SKU: 653) is the genuine OEM drum shaft retaining ring set that locks the drum shaft axially in place within the main frame of Lug-All's heaviest-duty portable come-along hoist. This retaining ring set is compatible with Lug-All model 6000-15 only. DTIC The Lug-All model 6000-15 is a heavy-duty, industrial-grade 3-ton cable come along hoist ” delivering 3,000 lbs single-line capacity with 15 feet of cable, or 6,000 lbs double-line capacity with 7 feet 6 inches of cable. ShoreLandr Per the official 6000-15SH parts list, the SKU 653 is listed as the "Drum Shaft Retaining Ring (Set of 2)" ” one unit consists of two retaining rings, one installed on each end of the drum shaft to prevent axial displacement in either direction. The drum shaft (Part #652) passes through the main frame and drum assembly, and these two retaining rings seat into precision-machined grooves at each shaft end, creating the axial stops that prevent the shaft from working loose or migrating under repetitive load and vibration cycles. Without both rings properly seated and in good condition, the drum shaft can shift longitudinally ” causing drum misalignment, uneven cable layering, and increased wear on the main frame bushings. J Harlen Co. At 6,000 lbs of double-line pull, the forces acting through the drum shaft are substantial. The 6000-15 uses a flexible 133-strand 5/16-inch aircraft cable and a double interlocking pawl mechanism that ensures one pawl is always holding the load ” and the axial position of the drum shaft relative to those pawl-engaging ratchet teeth must remain consistent and precise. A retaining ring that has been distorted by overtorquing, corroded in field conditions, or inadvertently compressed out of its groove during disassembly must be replaced before the hoist is returned to service. Lug-All Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU / Part Number653Part NameRetaining RingDescriptionDrum Shaft Retaining Ring SetQuantity per Set2 ringsCompatible ModelLug-All #6000-15 onlyHoist Type3-Ton Cable Ratchet Winch HoistHoist Capacity (Single Line)3,000 lbsHoist Capacity (Double Line)6,000 lbsSecuresDrum Shaft (Part #652)Component CategoryDrum Assembly / Shaft Retention HardwareCountry of OriginUSA

Critical Installation Note Always replace both rings in the set simultaneously ” never replace only one retaining ring after disassembly. Retaining rings that have been compressed or removed must never be reused, as they may not achieve the required retention force in the groove. Inspect the shaft grooves for wear or distortion before installing the new set. Order SKU 653 today and keep the drum shaft of your Lug-All 6000-15 axially secured at full 3-ton capacity.
