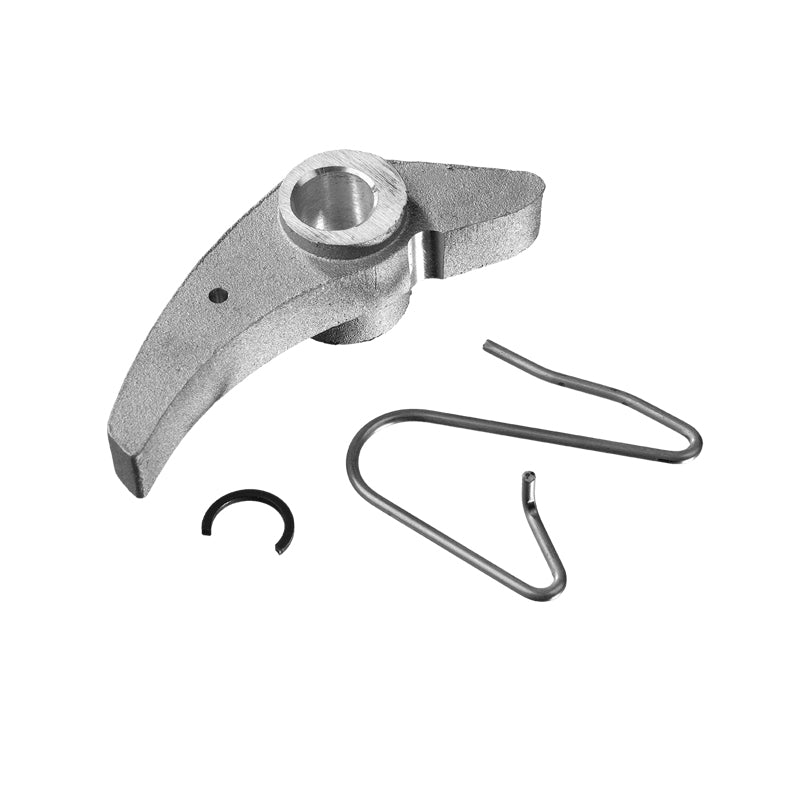

669-K - Replacement Main Frame Pawl & Spring Kit
Write a Review
LUG-ALL
669-K - Replacement Main Frame Pawl & Spring Kit
669-K - Replacement Main Frame Pawl & Spring Kit
Replacement Main Frame Pawl & Spring Kit “ SKU: 669-K The Complete Load-Holding Restoration Kit for Your 3-Ton Lug-All Hoist The main frame pawl is one of the two interlocking pawls that form the heart of every Lug-All hoist's load-holding system ” and the spring that keeps it engaged is what makes that load-holding automatic under every condition. The Replacement Main Frame Pawl & Spring Kit (SKU: 669-K) provides both critical components in a single kit, making it the most efficient and complete way to restore the main frame pawl system to factory specification on the Lug-All model 6000-15. This replacement main frame pawl and spring kit is compatible with Lug-All model 6000-15 only, with a net weight of 0.236 lbs. Hoists Direct The Lug-All model 6000-15 is a heavy-duty, industrial-grade 3-ton cable come along hoist featuring double or single line lift capabilities ” delivering 3,000 lbs in single line with 15 feet of cable, or 6,000 lbs in double line with 7 feet 6 inches of cable. ShoreLandr Per the official 6000-15SH parts list, the main frame pawl (Part #669) is positioned at reference #41 in the hoist assembly, and the main frame pawl spring (Part #200) at reference #40 ” immediately adjacent, confirming their paired function. The main frame pawl seats against the drum ratchet teeth and holds the load statically between handle strokes. The spring keeps the pawl under continuous tension against the drum face, ensuring it re-engages the next tooth automatically after each stroke ” without requiring the operator to set or manually hold it. Hoists Direct The 6000-15 features a double interlocking pawl mechanism ” one of two interlocking pawls is always holding the load, so no load brakes can slip or fail, providing positive load-holding in all environments. The main frame pawl and spring are one half of that system. A worn pawl with a rounded engagement face, or a fatigued spring that no longer keeps the pawl firmly seated, undermines the double-interlocking guarantee ” at 6,000 lbs of double-line capacity, that is an unacceptable risk. Lug-All Purchasing the pawl and spring as a matched kit ensures you replace both components together at the same service interval. Since the spring is what drives the pawl into engagement, a worn spring installed with a new pawl ” or vice versa ” delivers suboptimal performance. The 669-K eliminates that guesswork. Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All
Product Specifications SpecificationDetailSKU / Part Number669-KPart NameReplacement Main Frame Pawl & Spring KitNet Weight0.236 lbsKit ContentsMain Frame Pawl (#669) + Main Frame Pawl Spring (#200)Compatible ModelLug-All #6000-15 onlyHoist Type3-Ton Cable Ratchet Winch HoistHoist Capacity (Single Line)3,000 lbsHoist Capacity (Double Line)6,000 lbsComponent CategoryMain Frame / Pawl SystemCountry of OriginUSA
Know Your Kit The SKU 669-K is exclusive to the 6000-15 large frame model ” not compatible with any other Lug-All cable or web strap hoist. For the main frame pawl and spring kit covering medium/large cable hoists (3000-30, 4000-20, 4-A, 4-B, etc.), see Part #203-K. Order SKU 669-K today and fully restore your Lug-All 6000-15 main frame pawl system to factory condition.
The seller warrants that the Lug-All Hoist be free from defects in material and workmanship for a term of one year from the date of purchase by the original consumer. In the event of a defect, malfunction, or other failure of the Lug-All product not caused by unreasonable use, failure to provide reasonable and necessary maintenance, or damage to the product while in the possession of the consumer, the seller will remedy the defect or failure within 30 days of return to seller. The remedy will consist solely of repair or replacement of the product at the seller's option. If after a reasonable number of attempts by the seller to remedy the defect, malfunction, or other failure, the remedy fails in its essential purpose, the consumer is entitled to elect either a refund or a replacement, without charge.
What Is Not Covered?
This warranty does not apply to defects caused by modification, alteration, repair, or service of the Lug-All by anyone other than Lug-All. This warranty extends to only the original purchaser of the Lug-All.
Obtaining Warranty Service
In order to obtain performance under the warranty, the consumer must deliver the Lug-All and all ancillary parts to PtP Lug-All Corporation, along with a written explanation of the defect or failure. Delivery expenses and insurance for warranty service to and from Lug-All are the responsibility of the buyer. Proof of purchase ”such as a sales receipt or other documentation ”is required when requesting warranty service.
Limits of Liability
IN NO EVENT SHALL THE SELLER (INCLUDING ITS AFFILIATES, CONTRACTORS, DIRECTORS, EMPLOYEES, AND/OR AGENTS) BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, ECONOMIC, DIRECT, INDIRECT, GENERAL, OR SPECIAL DAMAGES OF ANY KIND, INCLUDING LOST BUSINESS, LOST SAVINGS, LOST DATA AND LOST PROFITS, REGARDLESS OF THE CAUSE AND WHETHER ARISING IN CONTRACT (INCLUDING FUNDAMENTAL BREACH), TORT, (INCLUDING NEGLIGENCE), OR OTHERWISE, EVEN IF THE SELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the exclusion or limitation in the paragraph may not apply to you.
Accident & Malfunction Notice
The buyer shall notify the seller promptly within thirty (30) days of becoming aware of any accident or malfunction involving the seller's products that arise out of or relate to any personal injury or damage to property and shall cooperate fully with the seller in investigating and determining the cause of such accident and malfunction. To the extent that a buyer fails to give such notice to the seller and provide such cooperation, the buyer shall be liable to the seller for the consequences of such failure.
Your Legal Rights
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
Related Products
113-K - Replacement Main Frame Pawl & Spring Kit
203-K - Replacement Main Frame Pawl & Spring Kit

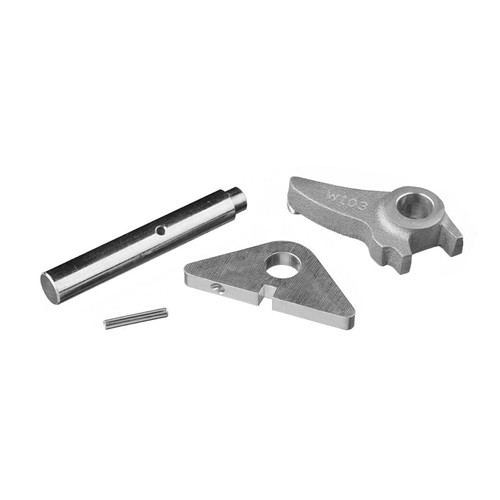

103-K-851 - Replacement Pawl Kit for 851
