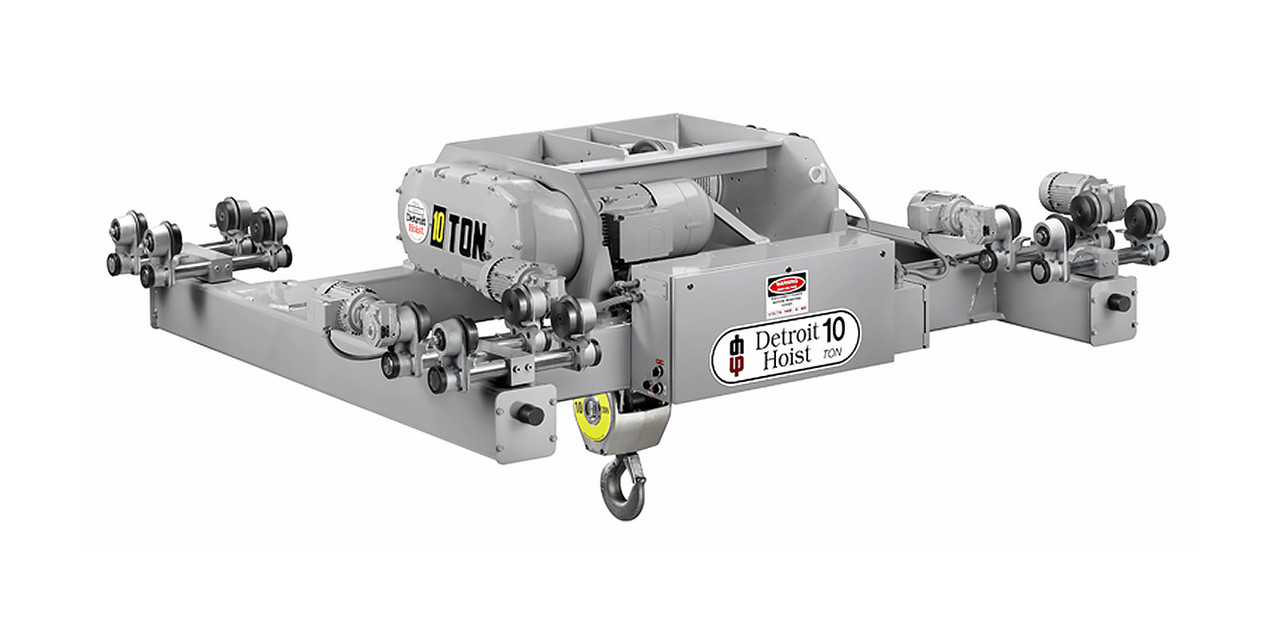

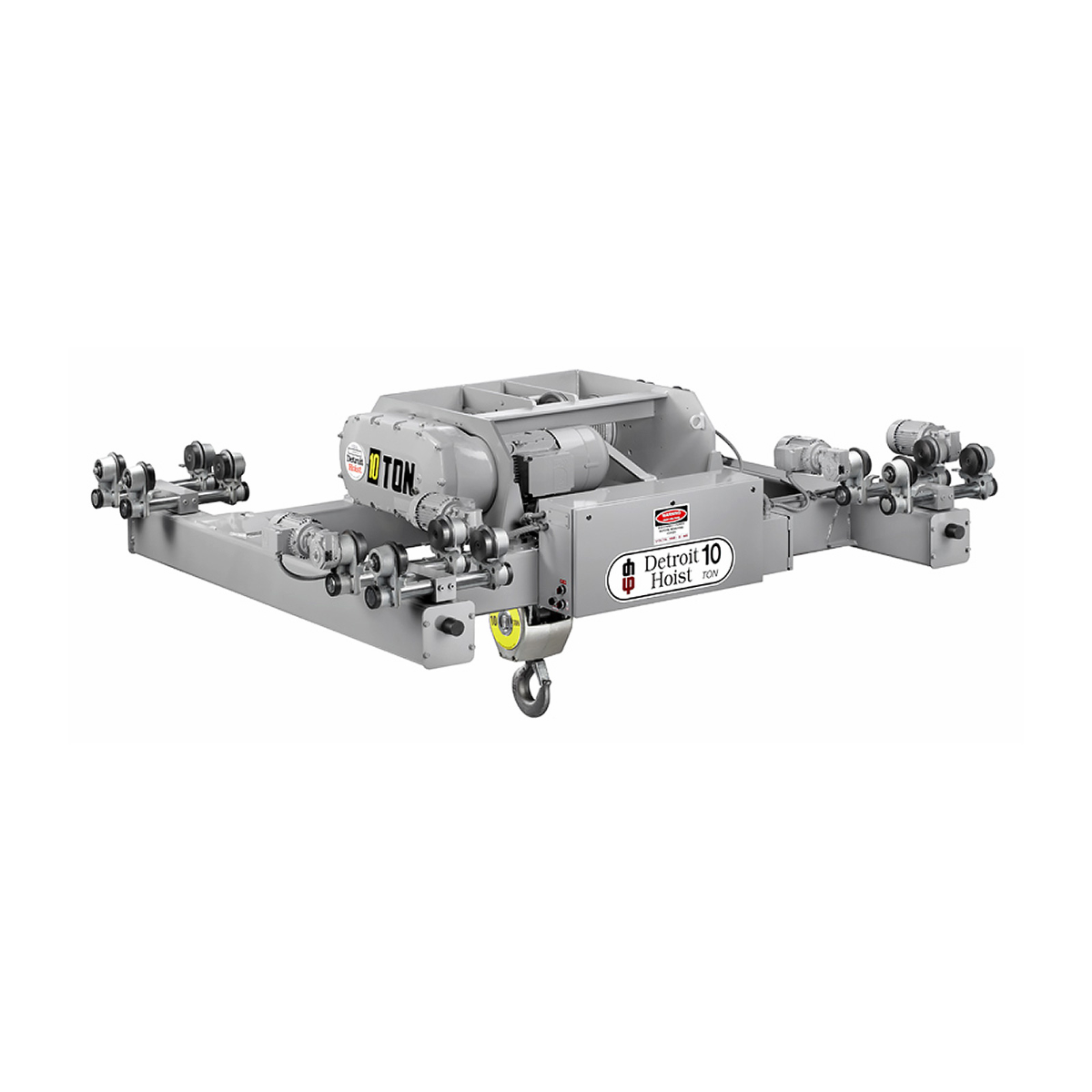

Detroit Hoist Under Running Double Girder Crane, 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 84" Trolley Gauge, 230V 3PH 60Hz, VFD Controls, Model DB22U20-13

Write a Review
$46,000.00
$40,250.00
(You save $5,750.00 )
SKU: DB22U20-13
Weight: 1,999.00 LBS
Shipping: $1,594.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Detroit Hoist Under Running Double Girder Crane, 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 84" Trolley Gauge, 230V 3PH 60Hz, VFD Controls, Model DB22U20-13

Detroit Hoist Under Running Double Girder Crane, 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 84" Trolley Gauge, 230V 3PH 60Hz, VFD Controls, Model DB22U20-13

$46,000.00
$40,250.00
(You save $5,750.00 )

Detroit Hoist Under Running Double Girder Crane, 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 84" Trolley Gauge, 230V 3PH 60Hz, VFD Controls, Model DB22U20-13

$46,000.00
$40,250.00
(You save $5,750.00 )

Engineered for optimal performance in demanding industrial environments, the UNDER RUNNING DOUBLE GIRDER Model DB22U20-13 guarantees exceptional reliability and efficiency in heavy-duty lifting operations. With a capacity of 11.00 tons, this crane stands out as a powerful solution for all material handling needs.

Designed specifically for robust applications, this double girder crane incorporates advanced technology ensuring precise and controlled lifting. Operating at a hoist lift speed of 13.00 feet per minute and a maximum trolley speed of 80.00 feet per minute, it enhances productivity significantly, allowing operators to handle larger loads with ease and accuracy.

  • **Heavy-Duty Capacity**: 11.00 tons capacity ideal for demanding industrial use.
  • **Advanced Reeving System**: Equipped with a 4-part reeving mechanism offering lift heights of 20 feet and 2 inches.
  • **Efficient Hoist Lift Speed**: Maximum lift speed of 13.00 FPM for controlled load handling.
  • **Powerful Hoist Motor**: 7.5 kW motor ensures reliable performance under heavy loads.
  • **Precision Hoist Control**: Closed-loop vector Variable Frequency Drive (VFD) control for optimal performance and safety.
  • **Rapid Trolley Speed**: Trolley speed of 80.00 FPM for enhanced horizontal load movement.
  • **High-Efficiency Trolley Motors**: Four 0.3 kW motors delivering precise and controlled trolley operation.
  • **Advanced Trolley Control**: Sensorless vector VFD control for refined and efficient trolley movements.
  • **Compatible Power Supply**: Operates on 230VAC-3PH-60HZ, ensuring easy integration with existing systems.
  • **Durable and Reliable**: Constructed to withstand various indoor standard service conditions with a CMAA Class D rating.
  • **Sturdy Trolley Gauge**: Trolley gauge of 84.0000 inches for optimal stability and alignment during operations.
  • **Significant Weight**: Approximate weight of 2800.00 lbs ensures robust construction for heavy-duty lifting.

The UNDER RUNNING DOUBLE GIRDER Model DB22U20-13 not only meets but exceeds industry standards for safety and reliability, making it the ideal choice for companies focused on operational excellence in lifting and material handling. Invest in this advanced lifting solution and elevate your productivity today.

The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
