Product Overview
These manual cable hoists lift, pull, and apply tension on heavy loads that travel long distances and high heights. Cable is strong, supports heavy loads, and is less susceptible to corrosion and cutting damage than rope and web straps.

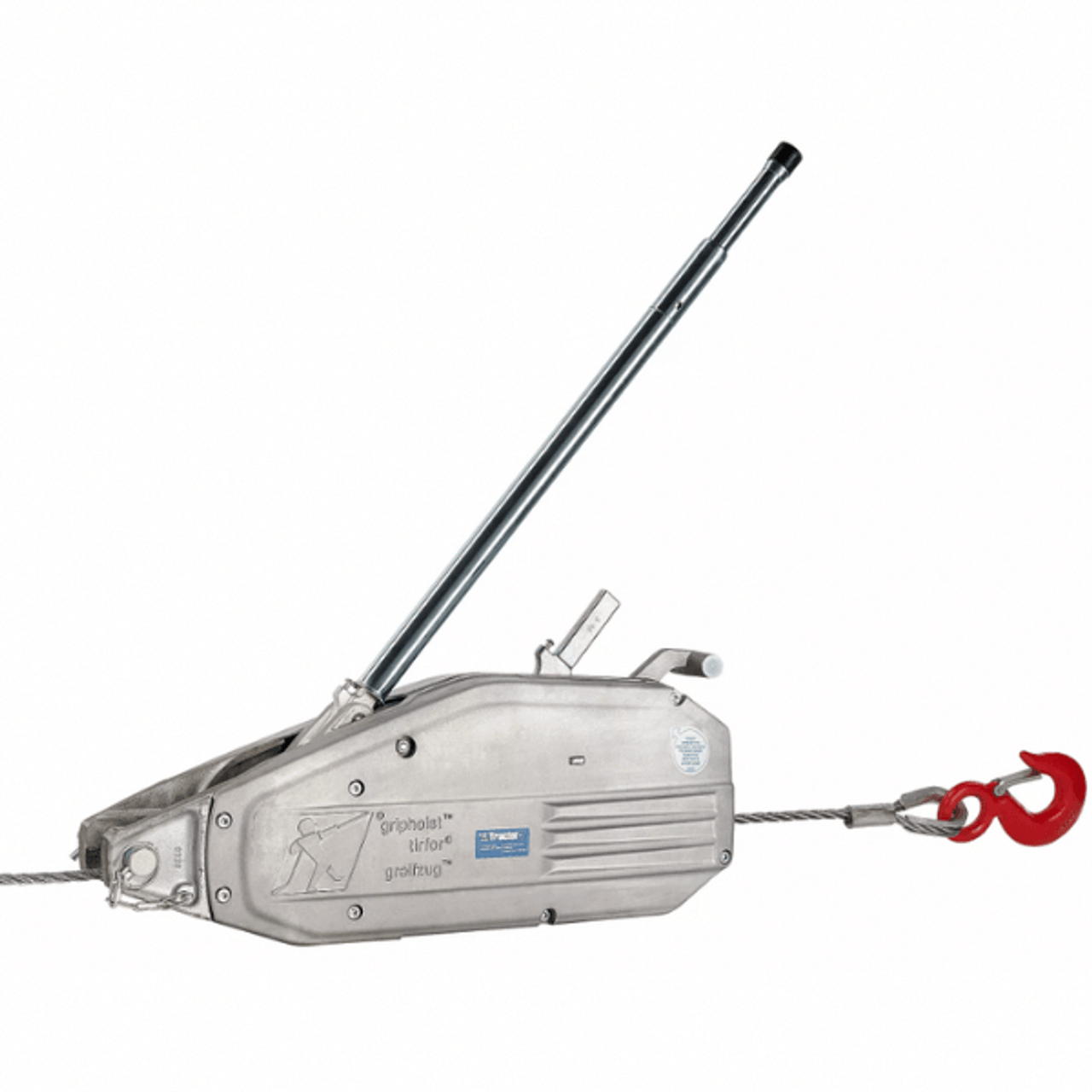

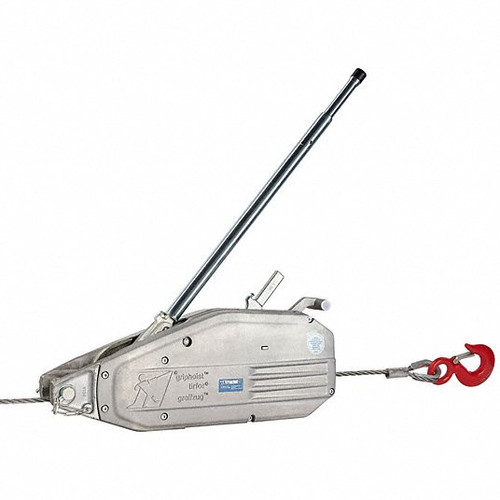

Put power where you need it with a TU32 Griphoist®/Tirfor® – 4 ton / 8,000 lb. capacity
The Griphoist/Tirfor wire rope hoist was built to be safe, reliable, and can pull and lift at a faster rate with less effort. Suitable for any lifting and pulling job, the Griphoist/Tirfor is particularly useful for longer pulls and higher lifts since any length of rope can be used. The Griphoist/Tirfor is a manual, hand-operated hoist and can be used anywhere – no electricity required.
Designed specifically to be used with maxiflex wire ropes with one hook end of any length to suit the application. The wire ropes can be easily removed from the hoist and replaced with longer Griphoist/Tirfor wire ropes. Tractel’s gGriphoist/Tirfor wire rope is the result of 30+ years of R&D experience and was developed to be the perfect companion to your Griphoist/Tirfor.
The TU series uses a different jaw shape to its older companion, the T500 series Griphoist/Tirfor hoist. The T500 Griphoist/Tirfor hoist only has two same shape jaws; whereas the newer TU hoist has jaws shaped like a ‘U’ which provides more grip and pressure to make the hoist stronger. Due to its strength and durability, the TU series Griphoist/Tirfor hoist is approved by UL and is qualified to be used as man-riding equipment.
THE ‘U’ ADVANTAGE
- The U-shaped jaws maintain cylindrical shape of the rope resulting in increased mechanical yield and ensures maximum life
- Can be very easily dismantled and reduces the amount of time to maintain
- Allows considerable savings in the number of parts to be repaired
- Perfect choice of hoist if used in daily operation
EASE OF USE
- Works in any position: horizontal, vertical, or angled
- Easy installation and operation
- Lightweight and portable – less effort and manpower are required
CONVENIENT
- Can be positioned in any anchoring place
- Does not need to change anchor points, as continuous pull is possible
- Direction of pull can be adjusted using sheave blocks
- Reduced maintenance
SAFE AND RELIABLE
- All Griphoist/Tirfor units come equipped with overload shear pins to prevent damage to the hoist if the maximum weight capacity is exceeded
- Can operate in reverse
- Built with experience and quality for longevity: Griphoist/Tirfor has been a customer favorite for decades
TU32 SPECIFICATIONS
- Nominal capacity: 8,000 lb. for material handling / 6,000 lb. for man-riding
- Wire rope diameter: 5/8 in.
- Wire rope weight: 8 lb./30 ft.
- Unit weight: 64 lb.
APPLICATIONS
A Griphoist/Tirfor can replace conventional winches and other hoists to be used in a variety of applications.
- Garden maintenance
- Forest and agriculture
- Tensioning fences
- Fire rescue or as a 4x4 emergency winch
- Suspension of large platforms for construction
- Installation and removal of machine tools
- Installation of window frames, large façade signs, panels
- Loading and unloading of heavy equipment
- Public works contracting
- Bridge building
- Steel construction
- Mining
- Pulling telephone cables, replacement of poles, or erection of mobile television aerials, antennas
- And many more!
STANDARDS
- UL certified for man-riding
Product Details
Catalog PageN/ABrandTRACTELMount TypeHook Mounted - No TrolleyProduct TypeWire Rope HoistOperating PositionHorizontal; VerticalLifting Capacity8,000 lbTonnage - Lifting Capacity4 TonPulling Capacity16,000 lbMaximum Lifting Length28 ftMinimum Line Length30 ftMaximum Line Length30 ftLine Length30 ftLine TypeRopeLine Diameter5/8 inLine MaterialGalvanized SteelMinimum Retracted Length31 inHeadroom32-1/2 inHook Opening Width1 inLifting Hook MaterialSteelLever Length45 inIncludes ClutchClutch Not IncludedBody MaterialSteelBody Width6 inBody Depth27 inIncluded ComponentsWire RopeBody FinishZinc PlatedStandardsUL ListedManufacturer Part Number03219902430KSub-brandTractel,Tirfor(R)UNSPSC24101602Country of OriginFrance (subject to change)
