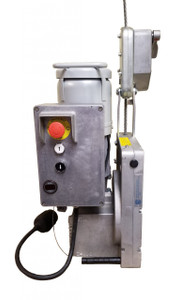

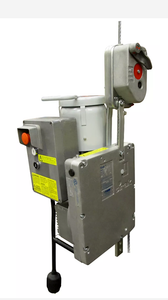

Tractel Tirak™ X-Series Man-Riding Electric Hoist XE500P+ – 1,000 lb Capacity, 208V Three-Phase - 258009K2

Product Description

The Tractel Tirak™ X-Series Man-Riding Electric Hoist XE500P+ is a durable vertical access solution that has been designed for safe personnel lifting and material handling in various environments. Certified for man-riding use, this hoist is equipped with the BS/BSO 500 overspeed safety device, which automatically activates in the event of excessive descent speed to provide dependable fall protection.

With a 1,000 lb (454 kg) lifting capacity and a smooth 33 feet per minute lifting speed, the XE500P+ delivers controlled vertical movement for personnel and tools in elevated work areas. Powered by 208V three-phase electricity, this model offers efficient motor performance, consistent operation, and compatibility with industrial power systems.

The hoist operates using a 5/16 in. wire rope and a friction-drive lifting system that allows for unlimited lifting height, limited only by rope length. This design gives you reliable traction, precise load control, and reduced rope wear.

The XE500P+ supports both temporary and permanent installations. It is an ideal choice for various vertical access systems that require certified man-riding safety and dependable performance.

Specifications

• Capacity: 1,000 lbs (454 kg)

• Hoist Type: Man-riding electric wire rope hoist

• Model: XE500P+

• Power Supply: 208V, three phase

• Current Draw: 6.3 A

• Lifting Speed: 33 ft/min

• Wire Rope Diameter: 5/16 in.

• Safety Device: BS/BSO 500 overspeed device included

• Drive System: Friction drive for unlimited lifting height

• Typical Applications: Man-riding access, maintenance, inspection, construction, industrial vertical access
