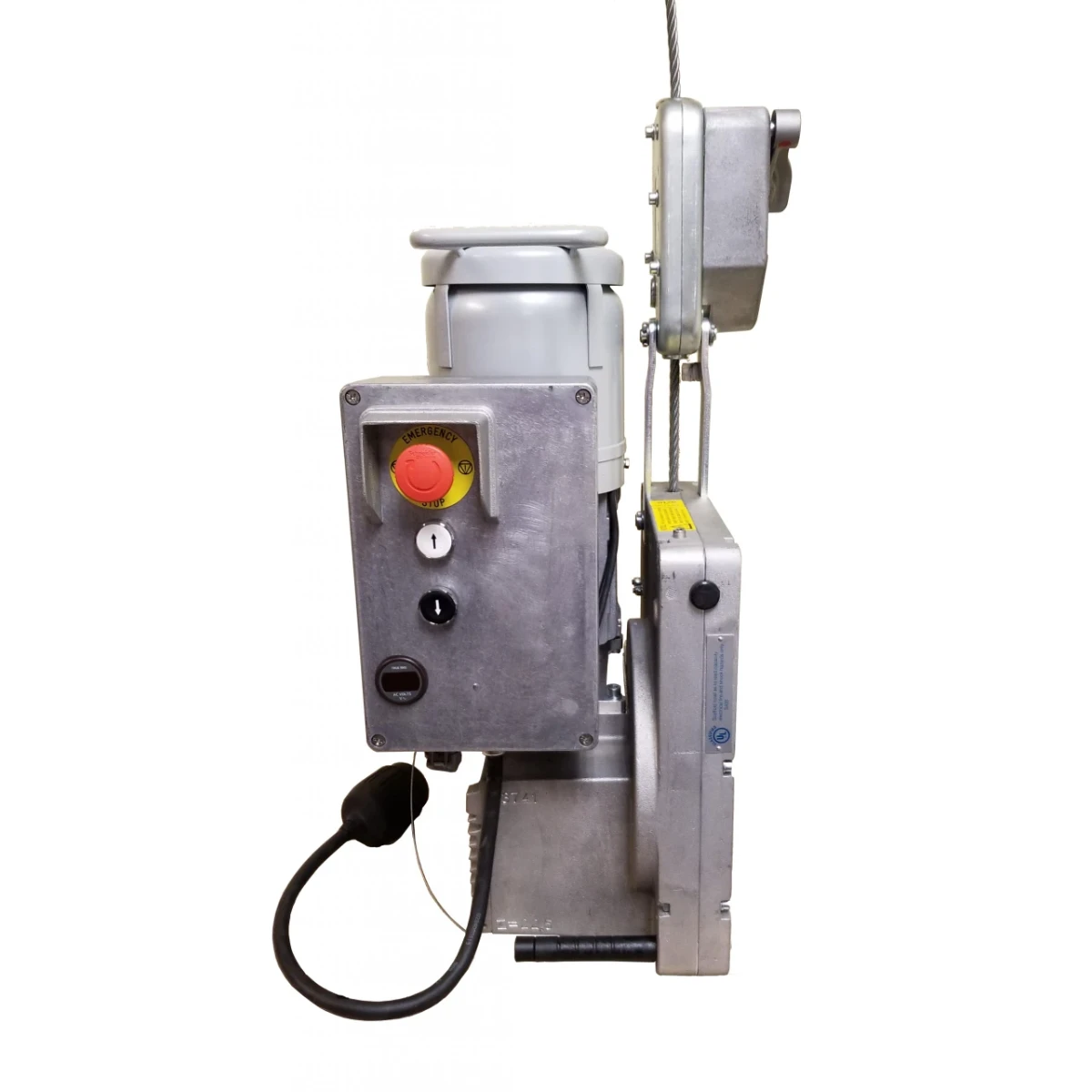

Tractel Tirak™ X-Series Man-Riding Electric Hoist XE501P+ – 1,000 lb Capacity, 208V Single-Phase - 302429K2

Product Description

The Tractel Tirak™ X-Series Man-Riding Electric Hoist XE501P+ is a dependable vertical access solution that was engineered for safe personnel lifting and efficient material handling in construction, maintenance, and industrial environments. Certified for man-riding applications. This hoist is equipped with the BS/BSO 500 overspeed safety device that automatically engages if an excessive descent speed is detected. Hoist provides reliable fall protection for operators working at heights.

With a 1,000 lb (454 kg) lifting capacity and a 35 feet per minute lifting speed. The XE501P+ gives you smooth, controlled movement that improves productivity without compromising on safety. Operating on 208V single-phase motor. This model is well-suited for job sites and facilities requiring flexible power options while maintaining strong hoisting performance.

The hoist uses a 5/16 in. wire rope and a friction-drive lifting system that allows for unlimited lifting height, limited only by rope length. This proven design ensures consistent traction, precise load control, and reduced rope wear, even during frequent positioning and continuous operation.

Compact and rugged, the XE501P+ supports both temporary and permanent installations. It is an excellent choice for various construction applications where certified man-riding safety and dependable performance are needed.

Specifications

• Capacity: 1,000 lbs (454 kg)

• Hoist Type: Man-riding electric wire rope hoist

• Model: XE501P+

• Power Supply: 208V, single phase

• Current Draw: 8.3 A

• Lifting Speed: 35 ft/min

• Wire Rope Diameter: 5/16 in.

• Safety Device: BS/BSO 500 overspeed device included

• Drive System: Friction drive for unlimited lifting height

• Typical Applications: Man-riding access, maintenance, inspection, construction, industrial vertical access
