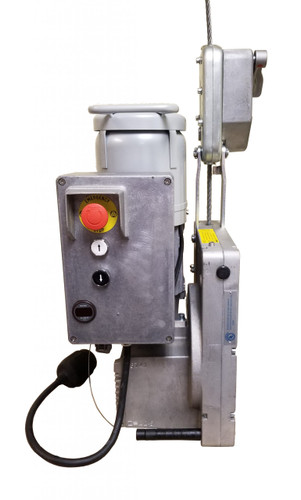

Tractel Tirak™ X-Series Man-Riding Electric Hoist XE2050P1 – 4,400 lb Capacity, 480V Three-Phase - 39089K

Product Description

The Tractel Tirak™ X-Series Man-Riding Electric Hoist XE2050P1 is a high-capacity vertical access solution that has been engineered for safe personnel lifting and heavy-duty material handling in demanding industrial environments. Certified for man-riding applications. This hoist is equipped with the BSO 2050 overspeed safety device that automatically engages if excessive descent speed is detected. This gives operators dependable fall protection for those working at heights.

Designed for heavy loads and controlled operations. The XE2050P1 offers a 4,400 lb (2,000 kg) lifting capacity with a 23 feet per minute lifting speed. This makes it ideal for applications that require precision, stability, and operator safety. Powered by a 480V three-phase electric motor. This model gives users efficient motor performance with reduced current draw.

The hoist utilizes a 9/16 in. wire rope and a friction-drive lifting system that allows for unlimited lifting height, limited only by rope length. This system delivers consistent traction, precise load control, and reduced rope wear, even in high-load and continuous-use applications.

The XE2050P1 can be used for both temporary and permanent installations. It is well-suited for industrial maintenance, construction projects, inspection platforms, and vertical access systems where high-capacity, certified man-riding equipment is required.

Specifications

• Capacity: 4,400 lbs (2,000 kg)

• Hoist Type: Man-riding electric wire rope hoist

• Model: XE2050P1

• Power Supply: 480V, three phase

• Current Draw: 9 A

• Lifting Speed: 23 ft/min

• Wire Rope Diameter: 9/16 in.

• Safety Device: BSO 2050 overspeed device included

• Drive System: Friction drive for unlimited lifting height

• Typical Applications: Man-riding access, heavy industrial maintenance, construction, inspection, vertical access systems
