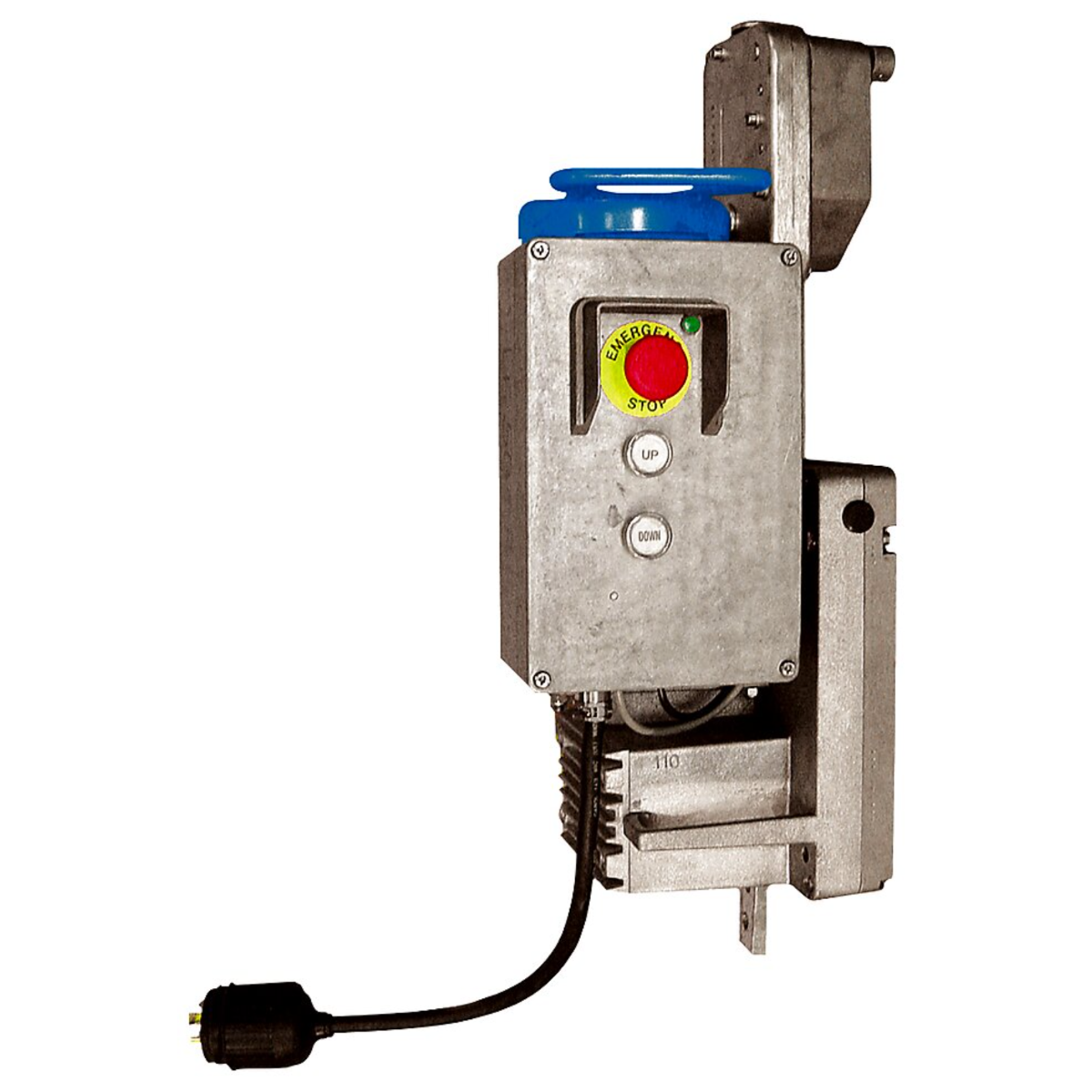

Tractel Tirak™ L Man-Riding Electric Hoist LE501PA1 – 1,000 lb Capacity, 110V - 100909K

Product Description

The Tractel Tirak™ L Man-Riding Electric Hoist LE501PA1 is a high-performance lifting solution that has been engineered specifically for personnel lifting and material handling in demanding industrial environments. Designed for safety, and reliability. This hoist features an integrated BSO 500 overspeed safety device that makes it suitable for certified man-riding applications where operator protection is critical.

With a 1,000 lb (454 kg) lifting capacity, the tirak L delivers smooth, controlled vertical movement at a consistent 20 feet per minute, providing efficient access for maintenance, inspection, and construction tasks. Powered by a 110V single-phase supply, this model is ideal for job sites and facilities where standard power is required, eliminating the need for specialized electrical infrastructure.

The hoist operates with 5/16 in. wire rope and uses a friction-drive system that allows unlimited lifting height, limited only by rope length. This design gives operators consistent traction, and minimal rope wear. The integrated BSO 500 overspeed device automatically engages in the event of excessive descent speed, providing an essential layer of fall protection for personnel.

Compact and rugged, the tirak L is built for portable or fixed installations and performs reliably in construction, industrial maintenance, utilities, and confined-space access applications. Hoists motor performance and low current draw are what make this hoist the trusted choice for professionals who require safe, and efficient vertical access.

Specifications

• Capacity: 1,000 lbs (454 kg)

• Hoist Type: Man-riding electric wire rope hoist

• Model: LE501PA1

• Power Supply: 110V, single phase

• Current Draw: 10.5 A

• Lifting Speed: 20 ft/min

• Wire Rope Diameter: 5/16 in.

• Safety Device: BSO 500 overspeed device included

• Drive System: Friction drive for unlimited lifting height

• Typical Applications: Man-riding access, maintenance platforms, construction, inspection, utilities, industrial access systems
