Product Overview

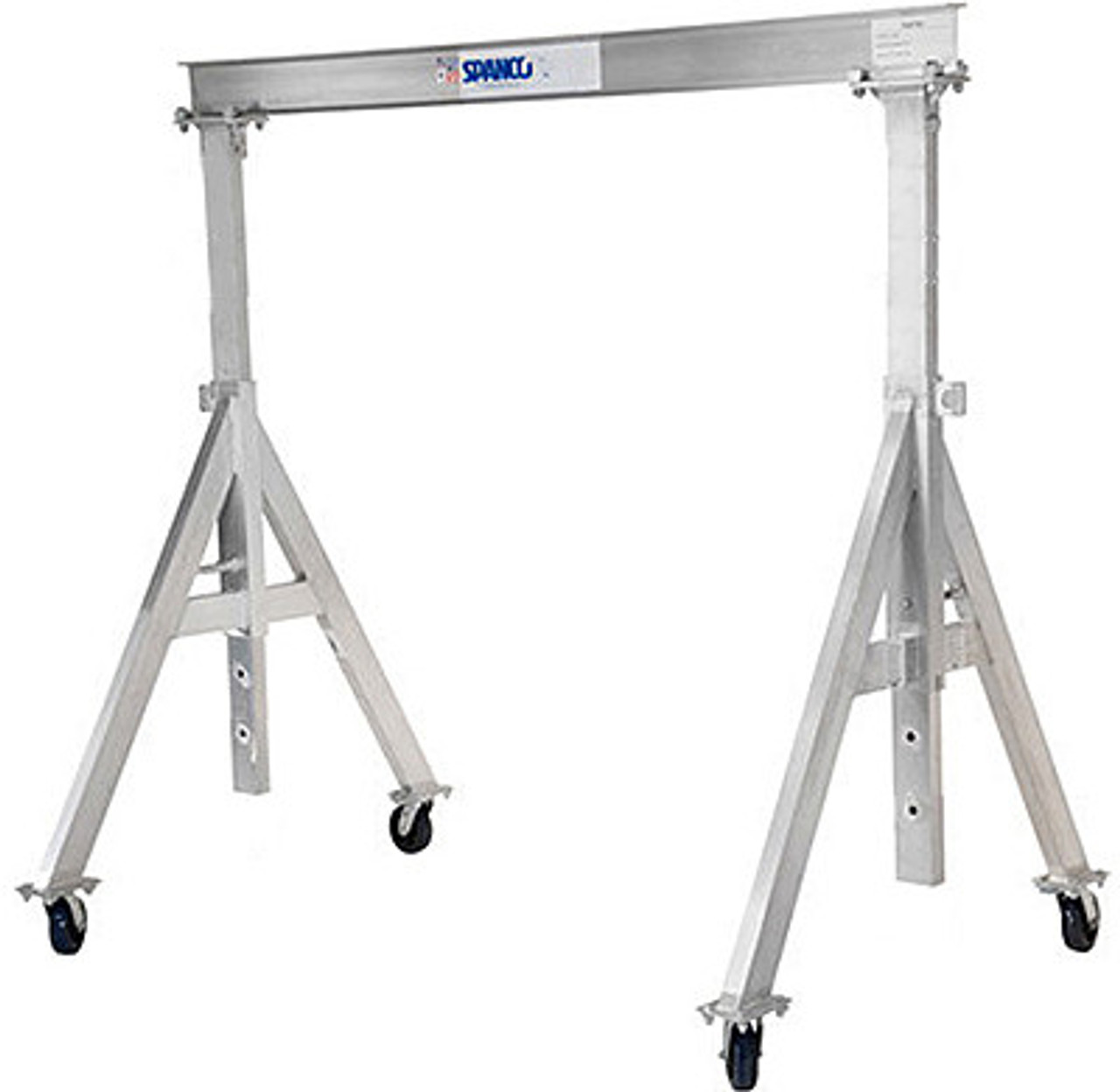

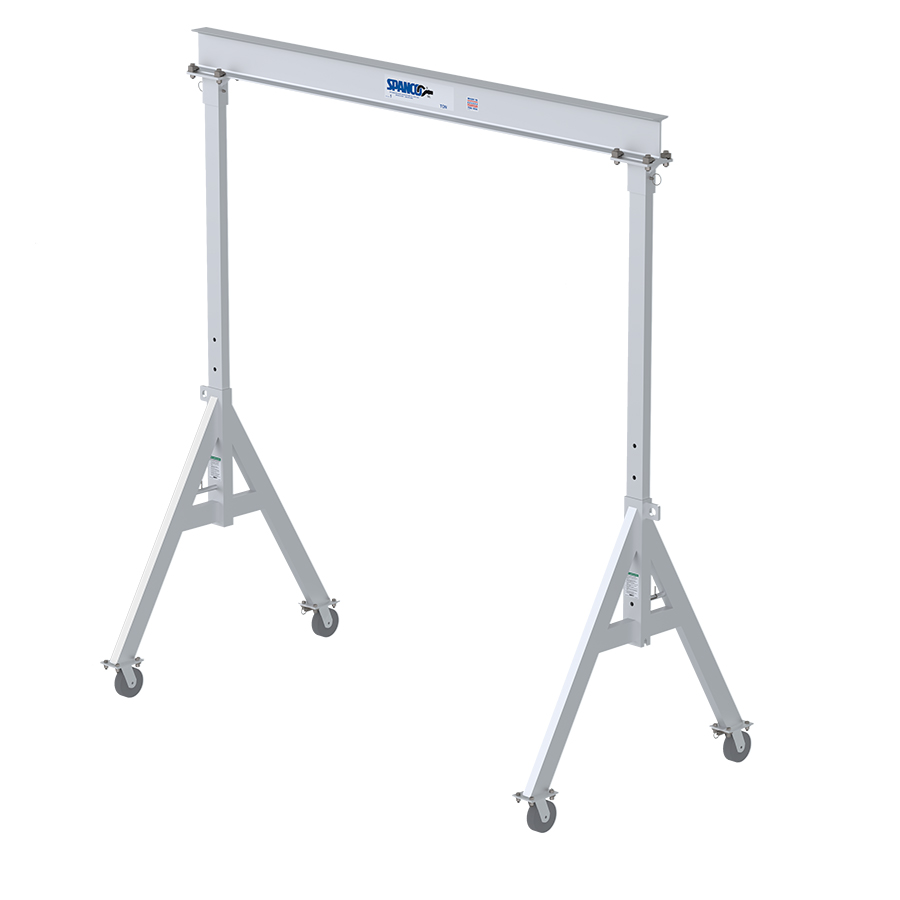

The Spanco 2ALU1012 Aluminum Gantry crane stands out as a lightweight and corrosion-resistant solution, engineered for the efficient lifting and transportation of loads weighing up to 4,000 lbs. This gantry crane is particularly favored by operators requiring highly mobile overhead lifting equipment due to its ease of assembly, disassembly, and maneuverability, achievable with the assistance of one or two workers.
Its height adjustment mechanism operates in precise 6-inch increments, offering an adaptable under-beam height range from 9’10” to 12’4". Noteworthy is the optional height adjustment kit, featuring spring-loaded steel locking pins that automatically engage when reaching height positioning holes, ensuring a secure and stable lifting configuration. The crane's design incorporates an adjustable span, allowing it to be efficiently shortened for seamless transport in narrow spaces.
The Spanco 2ALU1012 Aluminum Gantry crane is equipped with 4-position, swivel-lock casters featuring mold-on polyurethane wheels, optimizing floor protection during operation. As a testament to its adherence to industry standards, this gantry crane meets OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards.

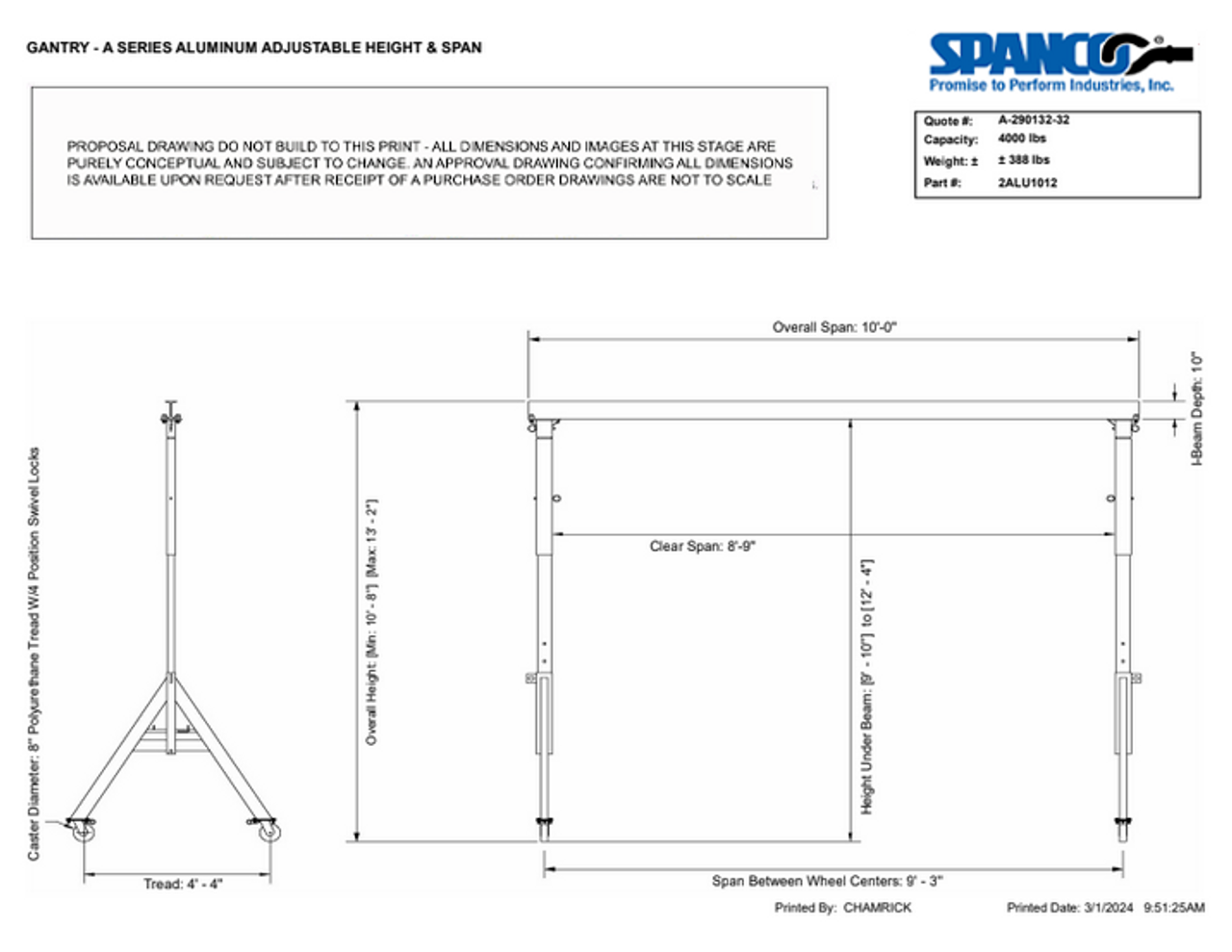

GANTRY - A SERIES ALUMINUM ADJUSTABLE HEIGHT & SPAN
- Height Adjustment Type: Aluminum Adjustable Height
- Capacity: 4000 lbs
- Overall Span: 10'-0''
- Clear Span: 8'-9''
- Height Under Beam: 9' - 10'' to 12' - 4''
- Overall Height: Min: 10' - 8'' Max: 13' - 2''
- Wheel Tread: 4' - 4''
- Beam Size: ALU10X8.76#
- Flange Width: 4-5/8"
- Casters: 8'' Polyurethane Tread W/4 Position Swivel Locks
- Coating & Painting: Aluminum
The inclusion of a removable 2-foot height extension kit enhances the crane's adaptability to varying lifting scenarios.
