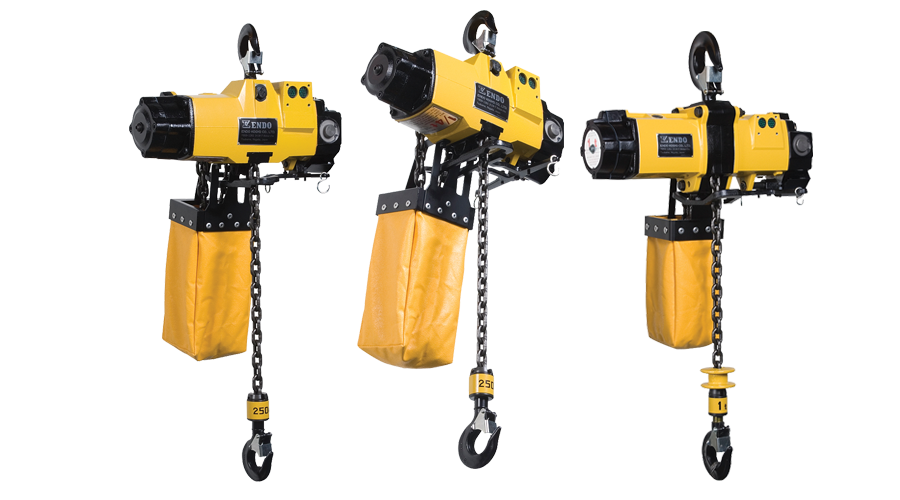

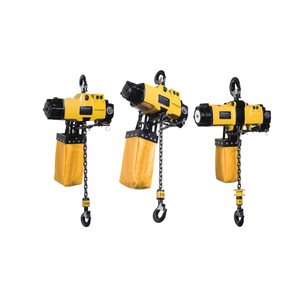

Single Chain Air Hoist, 3000KG, 3M Rp3/4 Conductix XA-EHL-3TS

The Conductix_Wampfler XA_EHL_3TS Air Hoist is a rugged, high-capacity chain hoist designed for demanding industrial lifting up to 3_000_kg (6_613_lb). Part of the compact EHL_TS series, this single-chain unit delivers powerful performance while minimizing headroom thanks to its streamlined design Equipped with a 3-meter (9.8_ft) standard lift chain and pull-chain control, the hoist can also be upgraded with pendant-style control (with or without emergency stop) for ergonomic flexibility . The chain itself is a durable 13___39_mm load chain (5 links per 191_mm) selected for high strength and wear resistance Operating on lubricated compressed air via an Rp_3/4 inlet, the hoist incorporates a rotary-vane motor and a reliable automatic, maintenance-free friction brake to ensure smooth lifting and secure load retention. Lifting speeds range from 2.0_m/min at 4_bar to 3.0_m/min at 6_bar, with air consumption between 53 and 111_cfm accordingly Weighing approximately 176_lb (80_kg), the XA_EHL_3TS is well-suited for integration into overhead crane systems, monorails, air or manual trolleys, and jib cranes. Optional lift lengths (1–20_m) and accessories like overload protection are available to support tailored, safe, and efficient operations Key Features: Capacity: 3_000_kg (6_613_lb) Standard Lift: 3_m (9.8_ft); optional up to 20_m Chain Size: 13___39_mm, 5 links/191_mm Control: Pull-chain standard; pendant optional (with E_Stop) Air Inlet: Rp_3/4 lubricated compressed air Speed (at 6_bar): ~3.0_m/min; (at 4_bar): ~2.0_m/min Air Consumption: 53–111_cfm (1.5–3.1_m_/min) depending on pressure Brake: Automatic friction brake—maintenance free Weight: ~176_lb (80_kg) Design: Compact, low-headroom for heavy-duty hoisting Mounting: Compatible with cranes, monorails, and trolleys Optional Accessories: Pendant controls, extended chain, overload protection
