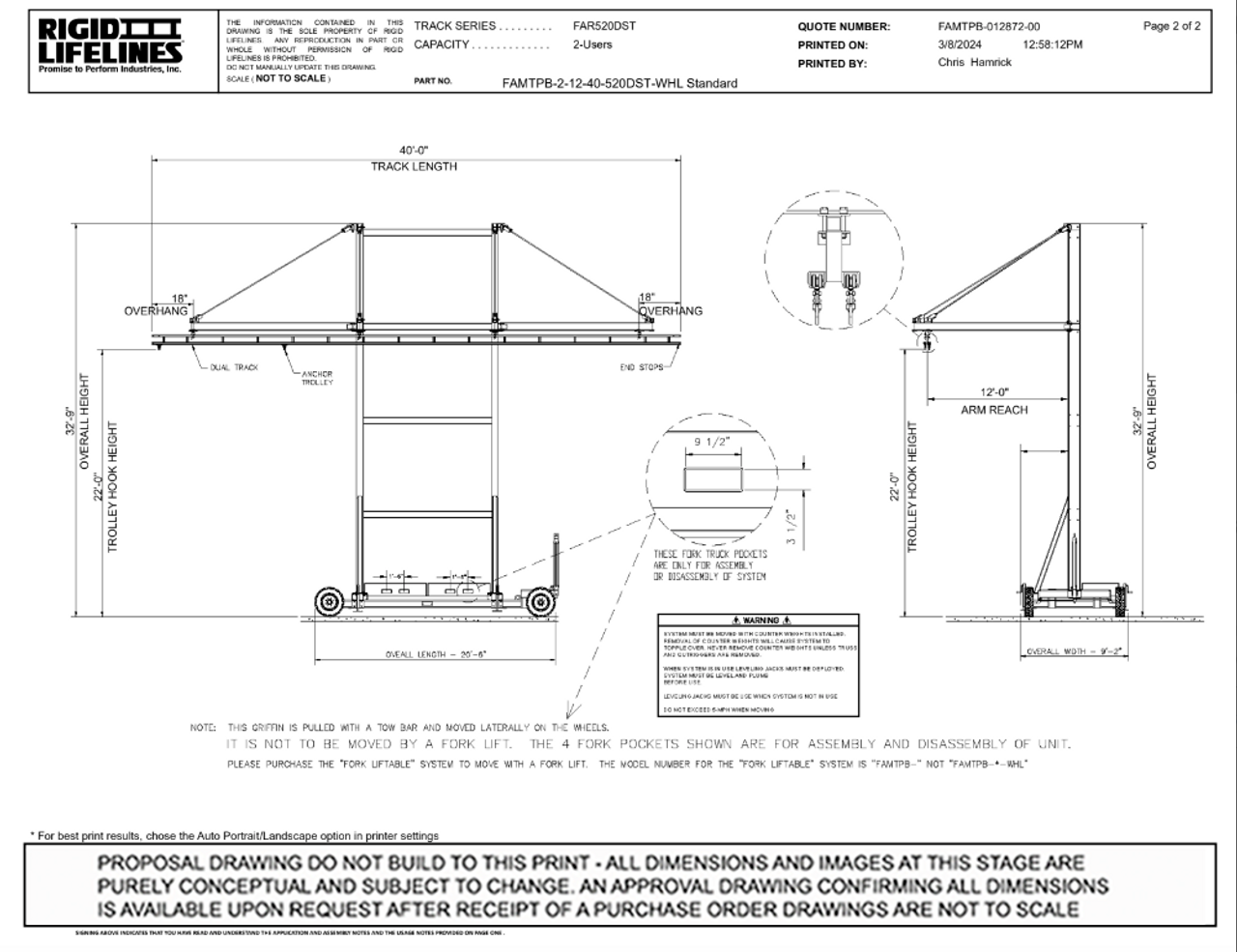

Standard Griffin Wheeled System 2-Person, Track Length: 40'-0" Including 18" Overhangs on Both Ends, Trolley-Hook Height: 22'-0", Arm Reach: 12'-0, Centerline of Track: 6'-9" FAMTPB-2-12-40-520DST-WHL Rigid Lifelines

1. Worker Capacity: 2-Users (Passable): This indicates that the equipment is designed to safely accommodate two workers simultaneously. The term "Passable" suggests that it meets or exceeds safety standards for this capacity, ensuring a secure working environment for those using it.

2. Trussed Dual Track: The equipment features a dual track system that incorporates trussing. Trussing provides additional structural support, enhancing stability and load-bearing capacity. This design is particularly beneficial in environments where heavy loads or extended reach are required.

3. Track Length: 40'-0" Including 18" Overhangs on Both Ends: The track of the equipment spans 40 feet in length, inclusive of 18-inch overhangs on both ends. This length provides ample coverage for traversing work areas, allowing for efficient movement and accessibility.

4. Trolley-Hook Height: 22'-0": The height at which the trolley hook can be suspended is 22 feet. This height enables the equipment to lift and transport materials or equipment to elevated locations, facilitating various tasks within the designated workspace.

5. Overall Height: ± 0: The overall height of the equipment remains constant or can be adjusted within a negligible range, denoted by "± 0." This ensures consistency in height during operation, contributing to stability and safety.

6. Arm Reach: 12'-0": The equipment has an arm reach of 12 feet, referring to the maximum horizontal distance it can extend. This feature allows for efficient maneuverability and accessibility within the work area, enabling users to reach distant points with ease.

7. Edge of Base to Centerline of Track: 6'-9": This measurement indicates the distance from the edge of the equipment's base to the centerline of the track, which is 6 feet 9 inches. Understanding this distance is crucial for positioning the equipment accurately within the workspace, ensuring proper alignment and functionality.

8. Trolleys: 2 Anchor Trolleys with Patented Auto-Brake Technology: The equipment is equipped with two anchor trolleys featuring patented auto-brake technology. This innovative feature enhances safety by automatically applying brakes to the trolleys, preventing unintended movement and ensuring control during operation.

9. Weight: ± 21,016 lbs: The equipment has an approximate weight of 21,016 pounds. Understanding the weight is essential for transportation, installation, and load-bearing capacity considerations, ensuring proper handling and usage.

10. Painted with Armorpoxy Safety Yellow for Outdoor Application: The equipment is coated with Armorpoxy Safety Yellow paint, specifically designed for outdoor application. This high-visibility color enhances safety by improving visibility in various lighting conditions and environments, reducing the risk of accidents and ensuring compliance with safety regulations.

In summary, these expanded specifications provide comprehensive insights into the design, capabilities, and safety features of the equipment, demonstrating its suitability for demanding industrial or construction applications.
