Rigid Lifelines Standard Griffin Wheeled System, 2-Person, 40 ft Track, 8 ft Arm Reach

Write a Review
$98,807.00
$85,632.73
(You save $13,174.27 )
SKU: FAMTPB-2-08-40-520DST-WHL
Weight: 1,999.00 LBS
Shipping: $5,912.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Rigid Lifelines Standard Griffin Wheeled System, 2-Person, 40 ft Track, 8 ft Arm Reach

Rigid Lifelines Standard Griffin Wheeled System, 2-Person, 40 ft Track, 8 ft Arm Reach

$98,807.00
$85,632.73
(You save $13,174.27 )

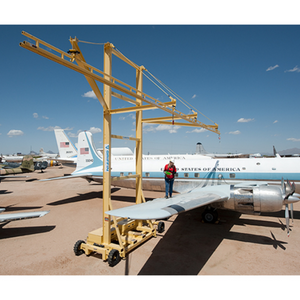

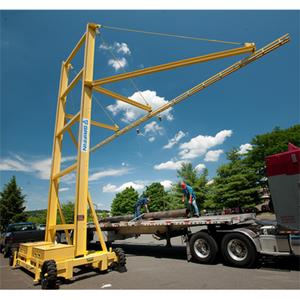

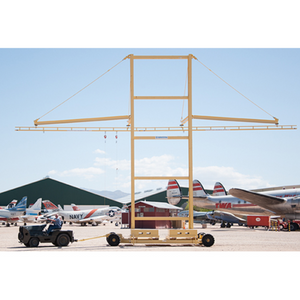

For crews inspecting or loading vehicles, railcars, or aircraft in different locations, FAMTPB-2-08-40-520DST-WHL keeps you covered wherever the job takes you. This unit is the wheeled version of this system, configured as a 2-users (passable), dual track setup with a 40 foot track length and a 8 foot arm reach. It carries a Low Headroom design and a total system weight of approximately 19000 pounds, so you can move it into place with a heavy duty pickup truck whenever your project relocates. The wheeled base rolls on hard rubber tires with a steerable chassis, and it includes a drawbar eye coupler for a pintle hitch along with bubble levels, leveling jacks, a bottle jack, and a bottle jack plate so you can level the system quickly once it is in position.

The trolley hook height sits at 22 feet, and the trolley itself gives your worker up to 30 degrees of off center coverage while traversing the tops of trucks, railcars, or aircraft. Like all Rigid Lifelines track systems, the enclosed and internally tapered track self centers the trolley for smooth, quiet rolling motion and keeps dirt or dust from interfering with performance.

Field assembly uses bolt together components, so there is no welding required to get the system operational on site. This system is rated for a maximum person weight, including tools, of 310 pounds when used with a 1350 MAAF energy absorbing self retracting lanyard. Custom systems are available for heavier workers up to 420 pounds, so contact your Rigid Lifelines sales team if your crew needs a higher rated configuration. You can level the system quickly on site and get your crew working safely within minutes of arrival.


Product Info:
•  System Type: Griffin Wheeled Anchor Track System
•  Base Type: Wheeled
•  Worker Capacity and Track Type: 2-Users (Passable), Dual Track
•  Track Length: 40 ft
•  Arm Reach: 8 ft
•  Trolley Hook Height: 22 ft standard
•  Coverage: Up to 30 degrees off center
•  Approximate System Weight: approximately 19000 pounds
•  Maximum Rated User Weight: 310 lbs with 1350 MAAF SRL, up to 420 lbs on custom systems
•  Assembly: Bolt together field assembly, no welding required
•  Compliance: Meets or exceeds OSHA and ANSI standards
•  Available Options: Custom heights and spans, single, dual, or multi track configurations, custom paint or galvanized finishes, dual steer with two tow bars

Rigid Lifelines warrants its products to be free from defects in material and workmanship as follows: engineered track equipment, wearable end truck wheels, and Anchor Trolley(TM) wheels and teeth for ten years; motorized products, drive components, and paint and finishes for non-aluminum components for two years; and soft goods, devices, connectors, and accessories for one year. Specifically, manual Anchor Track(TM) systems and equipment are warranted against defects in material and workmanship for ten years or 20,000 hours from the date of shipment to the first retail purchaser, covering only nonwearable parts except that wearable wheels on end trucks and wearable Anchor Trolley wheels and teeth are also included; motorized equipment is warranted for two years or 4,000 hours from the date of shipment, and paint and finishes are warranted for two years, with coating-related claims requiring documentation of the product's application and environmental conditions from delivery through the time of claim; and fall protection soft goods, devices, connectors, and accessories are warranted for one year from the date of shipment to the first retail purchaser. All warranty claims must be approved by Rigid Lifelines before any work is performed, and its sole obligation is to repair or replace products at the factory or an approved location, with no other express, implied, or statutory warranties honored - including any warranty of merchantability or fitness for a particular purpose - and Rigid Lifelines reserves the right to reject claims due to harsh or inappropriate environmental conditions. Rigid Lifelines is not liable for indirect, incidental, or consequential damages (including lost profits, operating costs, loss of production, or travel expenses); components or accessories not manufactured by Rigid Lifelines (except soft goods components and accessories it sells and warrants, which are governed by the original manufacturer's warranty terms); defective equipment or system failure caused by misuse, negligence, or improper installation or maintenance; equipment used beyond its rated capacity or service factors; unauthorized rework or modification; freight charges and damage caused by freight carriers; loss, injury, or property damage resulting from failure or defective operation; damage to paint coatings and finishes caused by negligence or improper storage (such as storing an indoor system outdoors); or products designed to deform or absorb energy during a fall event that require replacement after such an event. Under the reimbursement disclaimer, written notice of any claimed system defect must be given within ninety (90) days of shipment, all reimbursement requests must include proper documentation, reimbursement is provided as a credit unless otherwise approved by Rigid Lifelines management, labor reimbursement is capped at $90 per hour, and all reimbursement remains subject to Rigid Lifelines management approval.
