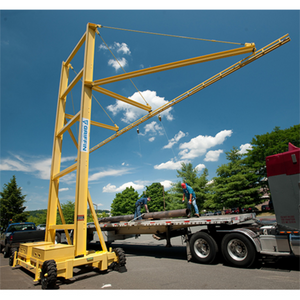

When your work moves from site to site, FAMTPB-2-12-40-520DST-WHL gives you portable overhead fall protection you can relocate whenever your job changes. This unit is the wheeled version of this system, configured as a 2-users (passable), dual track setup with a 40 foot track length and a 12 foot arm reach. It carries a Low Headroom design and a total system weight of approximately 19000 pounds, so you can move it into place with a heavy duty pickup truck whenever your project relocates. The wheeled base rolls on hard rubber tires with a steerable chassis, and it includes a drawbar eye coupler for a pintle hitch along with bubble levels, leveling jacks, a bottle jack, and a bottle jack plate so you can level the system quickly once it is in position.

The trolley hook height sits at 22 feet, and the trolley itself gives your worker up to 30 degrees of off center coverage while traversing the tops of trucks, railcars, or aircraft. Like all Rigid Lifelines track systems, the enclosed and internally tapered track self centers the trolley for smooth, quiet rolling motion and keeps dirt or dust from interfering with performance.

Field assembly uses bolt together components, so there is no welding required to get the system operational on site. This system is rated for a maximum person weight, including tools, of 310 pounds when used with a 1350 MAAF energy absorbing self retracting lanyard. Custom systems are available for heavier workers up to 420 pounds, so contact your Rigid Lifelines sales team if your crew needs a higher rated configuration. Once positioned and leveled, this system performs like a permanent installation, then moves again the moment your job site changes.

Product Info:
•  System Type: Griffin Wheeled Anchor Track System
•  Base Type: Wheeled
•  Worker Capacity and Track Type: 2-Users (Passable), Dual Track
•  Track Length: 40 ft
•  Arm Reach: 12 ft
•  Trolley Hook Height: 22 ft standard
•  Coverage: Up to 30 degrees off center
•  Approximate System Weight: approximately 19000 pounds
•  Maximum Rated User Weight: 310 lbs with 1350 MAAF SRL, up to 420 lbs on custom systems
•  Assembly: Bolt together field assembly, no welding required
•  Compliance: Meets or exceeds OSHA and ANSI standards
•  Available Options: Custom heights and spans, single, dual, or multi track configurations, custom paint or galvanized finishes, dual steer with two tow bars
