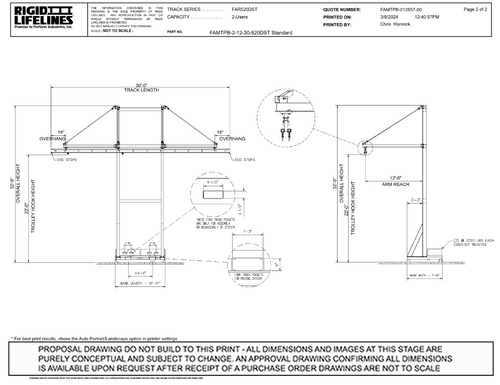

Standard Griffin Skidded System 2-Person, Track Length: 30'-0" Including 18" Overhangs on Both Ends, Trolley-Hook Height: 22'-0", Arm Reach: 12'-0, Centerline of Track: 6'-9" FAMTPB-2-12-30-520DST Rigid Lifelines

Product Overview

• Worker Capacity: 2-Users (Passable): This system is designed to support up to two users simultaneously, ensuring productivity while adhering to safety protocols.

• Trussed Dual Track: The system features a dual-track design with trussing, enhancing its structural integrity and load-bearing capacity.

• Track Length: 30'-0" Including 18" Overhangs on Both Ends: The track spans a total length of 30 feet, inclusive of 18-inch overhangs on both ends. This provides ample working space and flexibility for users.

• Trolley-Hook Height: 22'-0": The height from the ground to the trolley-hook attachment point is set at 22 feet, enabling access to elevated work areas.

• Overall Height: ± 0: The overall height remains consistent, ensuring uniformity and stability in the system's configuration.

• Arm Reach: 12'-0": Users can effectively access work areas within a radius of 12 feet from the track, maximizing productivity and safety.

• Edge of Base to Centerline of Track: 6'-9": This measurement specifies the distance from the edge of the base to the centerline of the track, aiding in proper positioning and alignment during installation.

• Trolleys: 2 Anchor Trolleys with Patented Auto-Brake Technology: The system includes two anchor trolleys equipped with patented auto-brake technology, enhancing safety by automatically engaging brakes to prevent falls.

• Weight: ± 16,810 lbs: The total weight of the system is approximately 16,810 pounds, crucial for transportation, installation, and load-bearing considerations.

• Painted with Armorpoxy Safety Yellow for Outdoor Application: The system is coated with Armorpoxy Safety Yellow paint, optimized for outdoor use, ensuring high visibility and durability in various environmental conditions.

• Greatly reduces the risk of suspension trauma: The system is engineered to significantly mitigate the risk of suspension trauma during fall arrest situations, prioritizing user safety and well-being.

• All components supplied by RIGID LIFELINES meet or exceed the performance requirements of ANSI Z359, OSHA 1910, and OSHA 1926 Fall Arrest regulations: The components of the system comply with or exceed the performance standards established by ANSI and OSHA, ensuring adherence to stringent safety regulations and guidelines.

Overall, this worker capacity system offers advanced safety features, robust construction, and compliance with industry standards, making it a reliable solution for fall protection in industrial environments.
