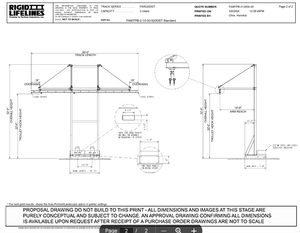

Standard Griffin Skidded System 2-Person, Track Length: 30'-0" Including 18" Overhangs on Both Ends, Trolley-Hook Height: 22'-0", Arm Reach: 10'-0, Centerline of Track: 6'-9" FAMTPB-2-10-30-520DST Rigid Lifelines

Griffin Skidded System Overview

• Capacity: Designed to accommodate two users with passable operations, allowing for simultaneous work and efficient material handling.

• Track Type: Utilizes a Trussed Dual Track configuration, ensuring robust support for heavy loads and stability during operation.

• Track Length: The track measures 30 feet, including 18-inch overhangs on both ends, providing ample space for maneuvering materials while optimizing floor space.

• Trolley-Hook Height: With a trolley-hook height of 22 feet, the system facilitates easy attachment and movement of materials, ensuring smooth workflows.

• Overall Height: Maintained at approximately 0, ensuring compatibility with various workplace environments and overhead obstructions.

• Arm Reach: Operators benefit from a 10-foot arm reach, allowing for easy access to materials within their workspace and minimizing operational downtime.

• Edge of Base to Centerline of Track: Offers optimal clearance with a distance of 6 feet 9 inches from the edge of the base to the centerline of the track, ensuring safe operation within confined spaces.

• Trolleys: Equipped with two Anchor Trolleys featuring Patented Auto-Brake Technology, ensuring precise control and enhanced safety during material transportation.

• Weight: Weighing approximately 14,973 lbs, the system is robust and stable, capable of handling heavy loads with ease.

• Coating: Painted with Armorpoxy Safety Yellow for Outdoor Application, providing visibility and corrosion resistance suitable for outdoor use.

• Safety Standards: The system greatly reduces the risk of suspension trauma and complies with ANSI Z359, OSHA 1910, and OSHA 1926 Fall Arrest regulations.

All components supplied by RIGID LIFELINES meet or exceed performance requirements, ensuring reliability and safety in industrial environments.

Worker Capacity: 2-Users (Passable)
Trussed Dual Track
Track Length: 30'-0" Including 18" Overhangs on Both Ends
Trolley-Hook Height: 22'-0"
Overall Height: ± 0
Arm Reach: 10'-0"
Edge of Base to
Centerline of Track: 6'-9"
Trolleys: 2 Anchor Trolleys with Patented Auto-Brake Technology
Weight: ± 14,973 lbs
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Greatly reduces risk of suspension trauma. All components supplied by
RIGID LIFELINES meet or exceed the performance requirements of ANSI
Z359, OSHA 1910, and OSHA 1926 Fall Arrest regulations.
