Product Overview
-
Worker Capacity: 2-Users (Passable): The system is designed to accommodate up to two users simultaneously, ensuring that tasks can be efficiently completed without compromising safety standards.
-
Trussed Dual Track: The system utilizes a dual-track design that incorporates trussing for added stability and strength. This configuration enhances the system's load-bearing capacity and durability.
-
Track Length: 20'-0" Including 18" Overhangs on Both Ends: The total length of the track is 20 feet, inclusive of 18-inch overhangs on both ends. This extended length provides ample working space for users while ensuring secure attachment points.
-
Trolley-Hook Height: 22'-0": The trolley-hook height refers to the distance from the ground to the attachment point on the track. In this case, it is set at 22 feet, allowing for safe and convenient access to elevated work areas.
-
Overall Height: ± 0: The overall height remains consistent and does not vary, ensuring uniformity and stability in the system's configuration.
-
Arm Reach: 12'-0": The arm reach denotes the maximum distance from the track that users can access while utilizing the system. With a reach of 12 feet, users can effectively perform tasks within a designated radius.
-
Edge of Base to Centerline of Track: 6'-9": This measurement specifies the distance from the edge of the base to the centerline of the track. It helps in determining the system's positioning and alignment during installation.
-
Trolleys: 2 Anchor Trolleys with Patented Auto-Brake Technology: The system includes two anchor trolleys equipped with patented auto-brake technology. This feature enhances safety by automatically engaging brakes in the event of sudden stops or falls, minimizing the risk of accidents.
-
Weight: ± 15,074 lbs: The total weight of the system is approximately 15,074 pounds. This information is crucial for transportation, installation, and load-bearing considerations.
-
Painted with Armorpoxy Safety Yellow for Outdoor Application: The system is coated with Armorpoxy Safety Yellow paint, specifically designed for outdoor applications. This high-visibility color enhances safety by increasing awareness and visibility of the system in various environmental conditions.
-
Greatly reduces the risk of suspension trauma: The system is engineered to mitigate the risk of suspension trauma, which can occur during prolonged suspension in fall arrest situations. This feature prioritizes user safety and well-being.
-

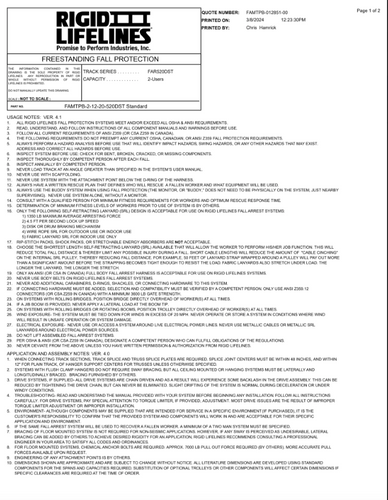

All components supplied by RIGID LIFELINES meet or exceed the performance requirements of ANSI Z359, OSHA 1910, and OSHA 1926 Fall Arrest regulations: The components of the system comply with or surpass the performance standards set by ANSI (American National Standards Institute) and OSHA (Occupational Safety and Health Administration), ensuring adherence to stringent safety regulations and guidelines.
Overall, this worker capacity system offers a comprehensive solution for fall protection, with its robust construction, advanced safety features, and compliance with industry standards.
Worker Capacity: 2-Users (Passable)
Trussed Dual Track
Track Length: 20'-0" Including 18" Overhangs on Both Ends
Trolley-Hook Height: 22'-0"
Overall Height: ± 0
Arm Reach: 12'-0"
Edge of Base to
Centerline of Track: 6'-9"
Trolleys: 2 Anchor Trolleys with Patented Auto-Brake Technology
Weight: ± 15,074 lbs
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Greatly reduces risk of suspension trauma. All components supplied by
RIGID LIFELINES meet or exceed the performance requirements of ANSI
Z359, OSHA 1910, and OSHA 1926 Fall Arrest regulations.
