Rigid Lifelines Standard Fold-Away Anchor Track System, 2-User, 23 ft Track, 8 ft Arm Reach

Write a Review
$12,149.06
$10,529.19
(You save $1,619.87 )
SKU: FAF-2-10-23-520DST-20
Weight: 1,047.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Rigid Lifelines Standard Fold-Away Anchor Track System, 2-User, 23 ft Track, 8 ft Arm Reach

Rigid Lifelines Standard Fold-Away Anchor Track System, 2-User, 23 ft Track, 8 ft Arm Reach

$12,149.06
$10,529.19
(You save $1,619.87 )

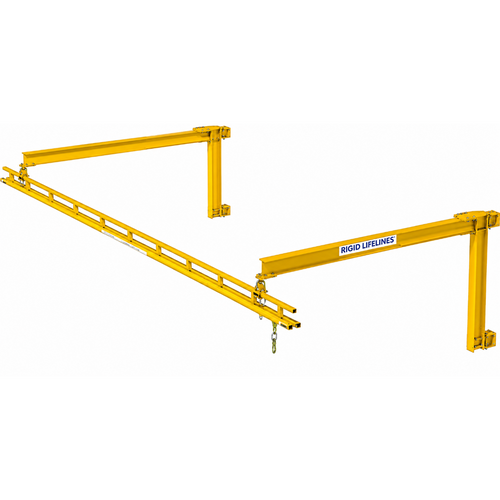

You get fall protection that adapts to your workflow with FAF-2-10-23-520DST-20, extending when you need it and folding away when you do not. This unit is built as a 2-user (dual track) arrangement with a 23 foot track length, support spacing at 20 feet, and a 10 foot arm reach, giving your team a fixed path of protection whenever the arms are extended. Users can travel up to 30 degrees off center along the track while working, and when the shift is done, the entire track and arm assembly folds back against the support columns to clear the way for your overhead crane.

Locking mechanisms hold the system securely in place whether it is extended for use or folded away for storage, and the enclosed, internally tapered track keeps trolley movement smooth and quiet while resisting dirt and dust buildup. This system can be column mounted or foundation mounted depending on your facility layout, and field assembly uses bolt together components with no welding required, except when the motorized rotation option is selected.

Every unit meets or exceeds OSHA and ANSI standards. This system is rated for a maximum person weight, including tools, of 310 pounds when used with a 1350 MAAF energy absorbing self retracting lanyard. Custom systems are available for heavier workers up to 420 pounds, so contact your Rigid Lifelines sales team if your crew needs a higher rated configuration. You can cover multiple work areas along a single run of track without permanently obstructing your crane path.


Product Info:
•  System Type: Column-Mounted Fold-Away Anchor Track System
•  Worker Capacity and Track Type: 2-User (Dual Track)
•  Track Length: 23 ft
•  Support Spacing: 20 ft
•  Arm Reach: 10 ft
•  Coverage: Up to 30 degrees off center
•  Maximum Rated User Weight: 310 lbs with 1350 MAAF SRL, up to 420 lbs on custom systems
•  Mounting: Column mounted or foundation mounted
•  Assembly: Bolt together field assembly, no welding required, except motorized rotation option
•  Compliance: Meets or exceeds OSHA and ANSI standards
•  Available Options: Electric motorized rotation for 3 or more arms or track lengths of 63 ft or more, single, dual, or multi track configurations, custom paint or galvanized finishes

Rigid Lifelines warrants its products to be free from defects in material and workmanship as follows: engineered track equipment, wearable end truck wheels, and Anchor Trolley(TM) wheels and teeth for ten years; motorized products, drive components, and paint and finishes for non-aluminum components for two years; and soft goods, devices, connectors, and accessories for one year. Specifically, manual Anchor Track(TM) systems and equipment are warranted against defects in material and workmanship for ten years or 20,000 hours from the date of shipment to the first retail purchaser, covering only nonwearable parts except that wearable wheels on end trucks and wearable Anchor Trolley wheels and teeth are also included; motorized equipment is warranted for two years or 4,000 hours from the date of shipment, and paint and finishes are warranted for two years, with coating-related claims requiring documentation of the product's application and environmental conditions from delivery through the time of claim; and fall protection soft goods, devices, connectors, and accessories are warranted for one year from the date of shipment to the first retail purchaser. All warranty claims must be approved by Rigid Lifelines before any work is performed, and its sole obligation is to repair or replace products at the factory or an approved location, with no other express, implied, or statutory warranties honored - including any warranty of merchantability or fitness for a particular purpose - and Rigid Lifelines reserves the right to reject claims due to harsh or inappropriate environmental conditions. Rigid Lifelines is not liable for indirect, incidental, or consequential damages (including lost profits, operating costs, loss of production, or travel expenses); components or accessories not manufactured by Rigid Lifelines (except soft goods components and accessories it sells and warrants, which are governed by the original manufacturer's warranty terms); defective equipment or system failure caused by misuse, negligence, or improper installation or maintenance; equipment used beyond its rated capacity or service factors; unauthorized rework or modification; freight charges and damage caused by freight carriers; loss, injury, or property damage resulting from failure or defective operation; damage to paint coatings and finishes caused by negligence or improper storage (such as storing an indoor system outdoors); or products designed to deform or absorb energy during a fall event that require replacement after such an event. Under the reimbursement disclaimer, written notice of any claimed system defect must be given within ninety (90) days of shipment, all reimbursement requests must include proper documentation, reimbursement is provided as a credit unless otherwise approved by Rigid Lifelines management, labor reimbursement is capped at $90 per hour, and all reimbursement remains subject to Rigid Lifelines management approval.
