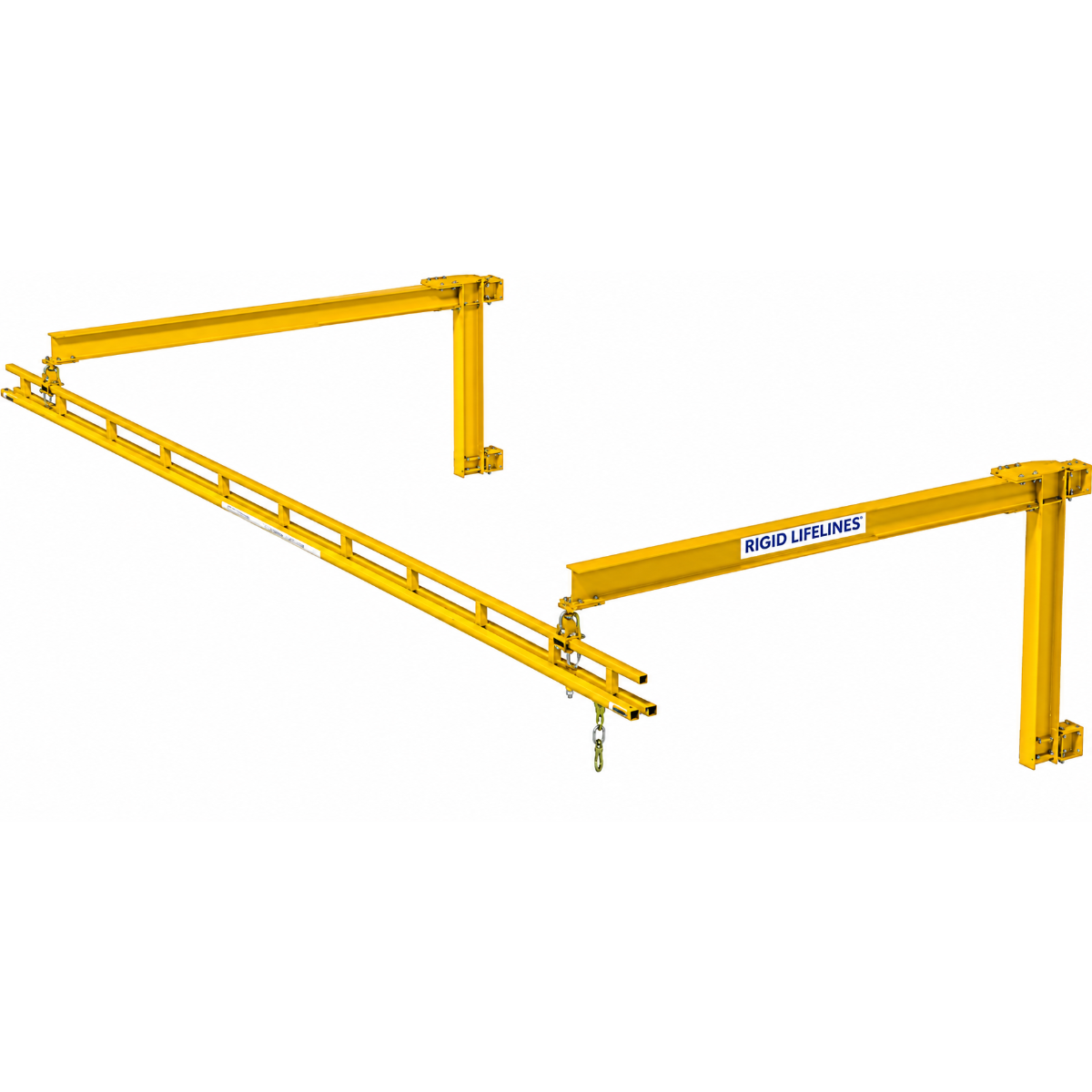

Rigid Lifelines Standard Fold-Away Anchor Track System, 2-User, 28 ft Track, 8 ft Arm Reach
For facilities that cover multiple work areas with one crane bay, FAF-2-08-28-520DST-25 gives your team a fixed path of protection that will not get in the way. This unit is built as a 2-user (dual track) arrangement with a 28 foot track length, support spacing at 25 feet, and a 8 foot arm reach, giving your team a fixed path of protection whenever the arms are extended. Users can travel up to 30 degrees off center along the track while working, and when the shift is done, the entire track and arm assembly folds back against the support columns to clear the way for your overhead crane.
Locking mechanisms hold the system securely in place whether it is extended for use or folded away for storage, and the enclosed, internally tapered track keeps trolley movement smooth and quiet while resisting dirt and dust buildup. This system can be column mounted or foundation mounted depending on your facility layout, and field assembly uses bolt together components with no welding required, except when the motorized rotation option is selected.
Every unit meets or exceeds OSHA and ANSI standards. This system is rated for a maximum person weight, including tools, of 310 pounds when used with a 1350 MAAF energy absorbing self retracting lanyard. Custom systems are available for heavier workers up to 420 pounds, so contact your Rigid Lifelines sales team if your crew needs a higher rated configuration. It is built for facilities that need fall protection and full crane clearance in the same footprint.
Product Info:
• System Type: Column-Mounted Fold-Away Anchor Track System
• Worker Capacity and Track Type: 2-User (Dual Track)
• Track Length: 28 ft
• Support Spacing: 25 ft
• Arm Reach: 8 ft
• Coverage: Up to 30 degrees off center
• Maximum Rated User Weight: 310 lbs with 1350 MAAF SRL, up to 420 lbs on custom systems
• Mounting: Column mounted or foundation mounted
• Assembly: Bolt together field assembly, no welding required, except motorized rotation option
• Compliance: Meets or exceeds OSHA and ANSI standards
• Available Options: Electric motorized rotation for 3 or more arms or track lengths of 63 ft or more, single, dual, or multi track configurations, custom paint or galvanized finishes
