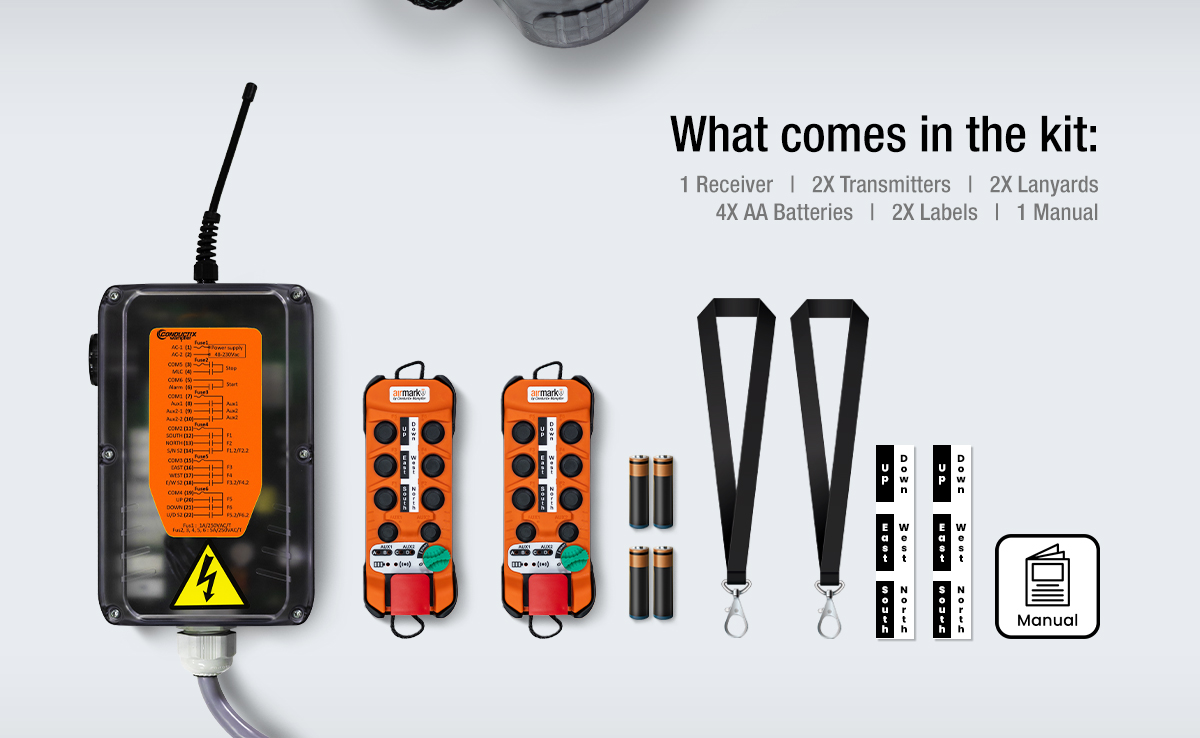

The JAY_MKP46B01 AirMark Kit delivers a fully equipped radio remote control system designed for overhead cranes, hoists, conveyors, and other industrial lifting applications. This turnkey kit includes:
2 _ AirMark Premium Transmitters (433_MHz)
Each features 6 two-step pushbuttons (for multi-speed control), 2 one-step auxiliary buttons, Off/On/Start selector, and emergency-stop mushroom
Pre-loaded with AA batteries and neck lanyards
Portable, durable, and ergonomically designed
1 _ AirMark Receiver (433_MHz)
Inputs: 48–230_VAC power
Outputs: 1 start relay + 12 function relays (rated 10_A @ 125_VAC / 5_A @ 250_VAC / 8_A @ 30_VDC)
Integrated horn with 99 selectable tones and warning lamp
Pre-wired 1.5_m cable with M32 gland and fixed _-wave antenna
Safety & Convenience Features
92-channel FSK with manual/auto channel hopping for reliable operation
Automatic transmit power control optimizes battery life
Tandem crane support with auto shutdown on link loss
Pin-code protection to prevent unauthorized use
Compact receiver enclosed in IP65-rated housing, ready for surface or panel mounting
Accessories & Documentation
Neck lanyards, button decals, AA batteries, and user manual included
Plug-and-play installation with factory-set pairing
Key Features & Specifications
Feature Specification
Frequency 433_MHz FSK, 92 channels
Transmitters 2 _ 8-button Premium (6 two-step + 2 one-step + Off/On/Start + E_STOP)
Receiver Supply 48–230_VAC ±10%
Receiver Outputs 1 start relay + 12 function relays (10_A @ 125_VAC, etc.)
Audio/Visual Alerts Built-in horn & warning lamp
Safety Features Pin-code startup; tandem crane auto-shutdown
Cable & Antenna Pre-wired 1.5_m cable; fixed antenna
Receiver Enclosure IP65-rated; UL-listed; 310_150_80_mm; 3.08_lb
Included Accessories AA batteries, decals, lanyards, manual
__ Ideal For
Overhead and gantry cranes
Hoists, elevators, conveyors
Tandem crane coordination
Applications where robust, safe, and versatile wireless control is required
