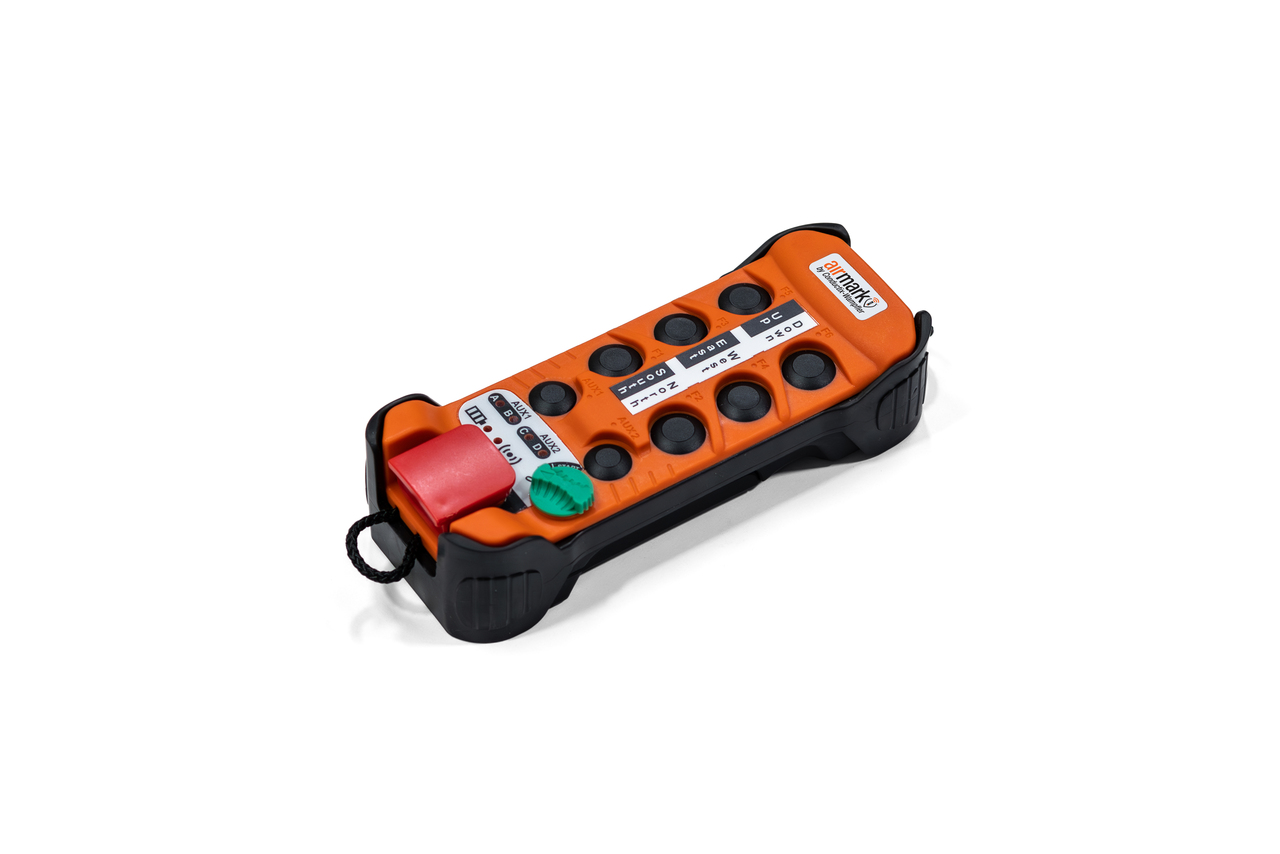

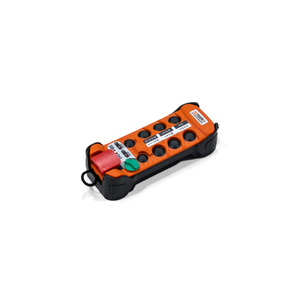

The JAY_MKT4631 is part of Conductix_Wampfler’s AirMark line of advanced radio remote control transmitters for industrial crane, hoist, and machinery operation. This premium-quality transmitter offers:
Button Configuration:
6 _ two-step pushbuttons (for high/low-speed or dual-function commands)
2 _ one-step auxiliary pushbuttons
1 _ Off/On/Start selector switch
1 _ mushroom-style Emergency_Stop (E_STOP)
Electrical & Mechanical Specs:
433_MHz FSK communication with up to 92 selectable channels (per AirMark specs)
Durable housing rated IP65, suitable for rugged industrial environments
Supplied with 2 AA batteries, directional decal sheet, and neck lanyard for immediate use
Weight: approx. 0.66_lb (0.30_kg)
Safety & Convenience Features:
Integrated E_STOP to ensure immediate shutdown
Color-coded LEDs indicate transmitter power, radio link, and auxiliary mode selections (A/B/C/D)
Allows pin-code protection, automatic/manual channel selection, auto power adjustment, and standby features
Applications:
Designed for use with AirMark receivers (e.g., JAY_MKR4MB10). Ideal for overhead cranes, hoists, conveyors, and industrial processes requiring two-speed and auxiliary function control with emergency-stop safety.
