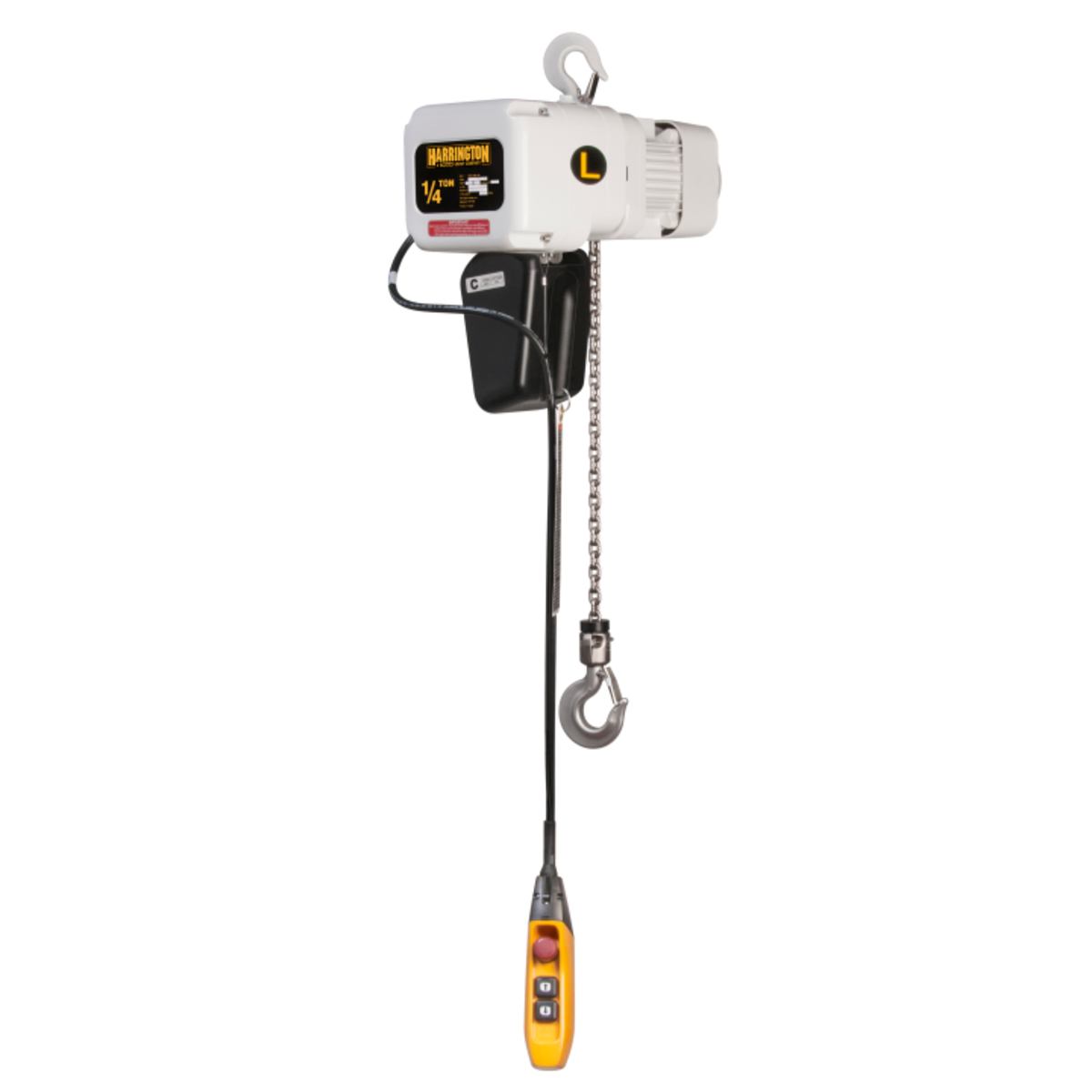

NER-FG Food Grade Electric Chain Hoist Lift-Capacity 1/4 Tons NER003L-FG Electric Chain Trolley HARRINGTON

Write a Review
$5,623.75 - $5,959.93
SKU: NER003L-FG-10
Condition: New
Availability: In stock
Weight: 86.00 LBS
Width: 18.00 (in)
Height: 25.00 (in)
Depth: 19.00 (in)
Shipping: Free Shipping
Part Number: NER003L-FG
Color: White
Hoist Lift: 10, 15, 20
Product: Electric Food Grade Chain Hoist, 500 lb, Hook Mounted-No Trolley, White Hoist Mount Hook Mounted-No Trolley
Includes: Chain Container, Quick Disconnect Plugs On Pendant and Power Cord
Lift Speed: 15 fpm
Housing Width: 8 1/2 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 13 13/16 in
Housing Length: 13 13/16 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 8 1/2 in
Body Depth: 13 13/16 in
For Minimum Beam Height: Not Applicable
Body Length: 13 13/16 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 10 ft
Controller Cord Length: 6 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 13 13/16 in
Minimum Retracted Length: 14 19/32 in
Load Capacity: 500 lb
Minimum Between Hooks: 13 13/16 in
Motor HP: 0.75 hp
Phase: 3
Standards: ASME B30.16, ASME HST-1M, FDA Approved, RoHS Compliant
Voltage: 230/460V
Fits Brand: Harrington Hoists Inc
Lubrication: Food Grade Oil
Reeving: 1
Thermal Protection: Yes
Brake: DC Current
Control Cord: 6 ft
Amps @ Low Volts: 3.4 A
Number of Speeds: 1
Trolley Configuration: Hook Mounted-No Trolley
Trolley Speed: Not Applicable
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 15 fpm
Clutch Type: Friction
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Epoxy Painted
Controls: Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 3/4 hp
Headroom: 13 13/16 in
Includes Brake: Brake Included
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 500 lb
Current at Minimum Voltage: 3.4 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 3.4 A
Body Finish: Epoxy Painted
Number of Load Chains: 1
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
NER-FG Food Grade Electric Chain Hoist  Lift-Capacity 1/4 Tons NER003L-FG Electric Chain Trolley HARRINGTON

NER-FG Food Grade Electric Chain Hoist Lift-Capacity 1/4 Tons NER003L-FG Electric Chain Trolley HARRINGTON

$5,623.75 - $5,959.93

NER-FG Food Grade Electric Chain Hoist Lift-Capacity 1/4 Tons NER003L-FG Electric Chain Trolley HARRINGTON

$5,623.75 - $5,959.93

The NER-FG Food Grade Electric Chain Hoist by HARRINGTON is a standout solution for the food processing and packaging sector. Designed specifically to meet the stringent requirements of the food industry, the NER003L-FG model features food-grade materials that prioritize the safety and purity of your products.

With an impressive lift capacity and the ability to handle loads from 1/4 to 2 tons, this hoist is versatile enough to tackle various tasks, whether it‚ lifting heavy bags of ingredients or carefully maneuvering sensitive packaging materials. Its electric-powered functionality streamlines operations by allowing users to lift and lower loads effortlessly with the simple push of a button. This not only enhances efficiency but also promotes a cleaner and quieter working environment, setting it apart from conventional manual hoists.

Reliability is paramount in the food industry, and HARRINGTON ensures compliance with strict food safety standards through the use of high-quality, food-grade materials in the construction of the NER003L-FG. This feature is essential for safeguarding your products from contaminants, which is critical for maintaining quality and compliance in food production.

Durability is another hallmark of this electric chain hoist. Designed to withstand the rigors of demanding food processing environments, it promises long-lasting performance you can rely on year after year.

In summary, the NER003L-FG HARRINGTON NER-FG Food Grade Electric Chain Hoist is an invaluable asset for enhancing operational efficiency and safety in your food processing or packaging facility. Investing in this hoist ensures you are equipped with a dependable tool that adheres to the highest standards of food safety and operational performance.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE
