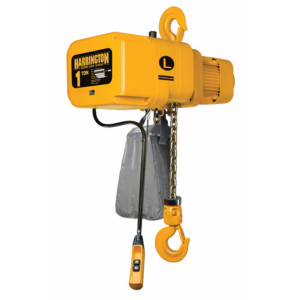

NER Electric Chain Hoist Lift-Capacity 1/8 Tons NER001H Electric Chain Hoist HARRINGTON

Write a Review
$3,305.02 - $3,561.16
SKU: NER001H-10
Condition: New
Availability: In stock
Weight: 93.00 LBS
Width: 17.00 (in)
Height: 25.00 (in)
Depth: 19.00 (in)
Shipping: Free Shipping
Color: Yellow
Hoist Lift: 10 ft
Includes: Chain Container, Quick Disconnect Plugs On Pendant and Power Cords, 10 yr Brake Warranty
Lift Speed: 55 fpm
Housing Width: 12 19/32 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 6 5/8 in
Housing Length: 18 13/16 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 12 19/32 in
Body Depth: 6 5/8 in
For Minimum Beam Height: Not Applicable
Body Length: 18 13/16 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 10 ft
Controller Cord Length: 8 3/16 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 1 3/32 in
Minimum Retracted Length: 13 13/16 in
Load Capacity: 250 lb
Minimum Between Hooks: 13 13/16 in
Motor HP: 0.75 hp
Phase: 3
Standards: ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340
Voltage: 208/230/460V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Clutch: Friction
Reeving: 1
Thermal Protection: Yes
Classification: H4
Control Cord: 6 ft
Amps @ Low Volts: 3.4 A
Number of Speeds: 1
Trolley Configuration: Hook Mounted
Trolley Speed: Not Applicable
Features: Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 55 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 3/4 hp
Headroom: 13 13/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 250 lb
Current at Minimum Voltage: 3.4 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 1.7 A
Body Finish: Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
NER Electric Chain Hoist Lift-Capacity 1/8 Tons NER001H Electric Chain Hoist HARRINGTON

NER Electric Chain Hoist Lift-Capacity 1/8 Tons NER001H Electric Chain Hoist HARRINGTON

$3,305.02 - $3,561.16

NER Electric Chain Hoist Lift-Capacity 1/8 Tons NER001H Electric Chain Hoist HARRINGTON

$3,305.02 - $3,561.16

The NER001H-10 HARRINGTON NER Electric Chain Hoist stands out as an essential tool for both professional and industrial applications. With a remarkable lifting capacity of 1/8 tons and a generous 10-foot lift, this electric chain hoist is engineered to handle challenging tasks with ease and efficiency, making it perfect for a variety of settings such as manufacturing, construction, and warehousing.

Built utilizing advanced technology, the NER001H-10 ensures optimal performance and precision with every lift. Its robust construction guarantees durability, allowing it to endure the rigors of heavy-duty operations while maintaining its reliability over time. Whether maneuvering heavy machinery or lifting materials in a tight space, this hoist delivers exceptional results consistently.

Safety is paramount, and the NER001H is designed with multiple features to protect users and machinery alike. Equipped with a load limiter, it prevents overloading, which safeguards both the operator and the hoist from potential hazards. This commitment to safety, combined with easy maintenance options, minimizes downtime, ensuring that productivity remains at its peak, regardless of the workload.

Moreover, the compact and lightweight design of the NER001H facilitates straightforward installation and operation, even for beginners. Its user-friendly controls allow for intuitive handling, making it accessible to users of all skill levels.

Investing in the NER001H HARRINGTON NER Electric Chain Hoist signifies a commitment to excellence and efficiency in lifting solutions. With its blend of robust design, safety features, and versatile application capabilities, this hoist is tailored to meet the demands of today's most challenging work environments. Elevate your productivity and streamline your operations with the unparalleled performance of the NER001H.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE
