Product Overview

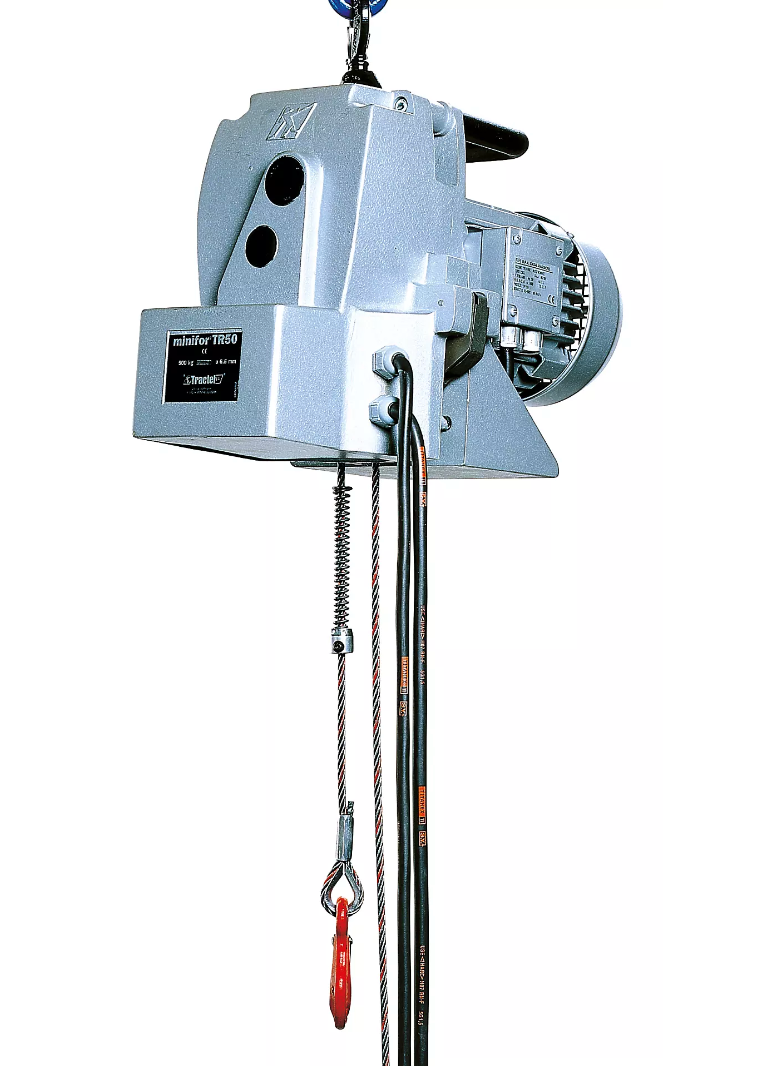

minifor® — TR50
portable electric hoists with unlimited lifting height
FEATURES
- Portable and powerful
- Compact, lightweight design for easy installation
- Unlimited height of lift
- Optional rope reeler
- Direct lift or sheaving kit for increased capacity
- Single phase or three phase power
- Comes with blue steel box
- Optional wireless remote control available
QUALITY AND POWER
- High power to weight ratio
- Body in aluminum alloy
- Unlimited length of lifting wire rope
- Rated loads: 1,000 lbs. (500 kg)
- Wire rope diameter: 1⁄4 in. (6.5 mm)*
- Lifting speed: 23 fpm (7 m/min)
- 115 V standard
- 220 V standard
SAFETY
- Upper and lower adjustable end limit stops
- Motor integrated brake
- Meets ANSI ASME B30.16
* Wire rope sold separately
Description
Minifor™ are portable and powerful motorized hoists with a traversing wire rope. They can lift or pull loads across great distances without exceeding their maximum torque. They are operated through a push button control pendant. Portable hoist to lift and pull loads, for utilization in numerous applications.
FEATURES
- Portable and powerful
- Compact, lightweight design for easy installation
- Unlimited height of lift
- Optional rope reeler
- Direct lift or sheaving kit for increased capacity
- Single phase or three phase power
- Comes with blue steel box
- Optional wireless remote control available
QUALITY AND POWER
- High power to weight ratio
- Body in aluminum alloy
- Unlimited length of lifting wire rope
- Rated loads: 1,000 lbs. (500 kg)
- Wire rope diameter: 1⁄4 in. (6.5 mm)*
- Lifting speed: 23 fpm (7 m/min)
- 115 V standard
- 220 V standard
SAFETY
- Upper and lower adjustable end limit stops
- Motor integrated brake
- Meets ANSI ASME B30.16
* Wire rope sold separately
Specifications
- Capacity: 1,000 Lb.
- Lift: Unlimited
- Hoist Speed: 23 FPM
- Suspension: Hook
- Pendant Drop: 10 Feet
- Housing Dimensions: 19"L x 9"W x 17"D
- Voltage: 115V Single Phase (220V Single Phase optional), 20 Amps
- Weight: 70 Pounds
