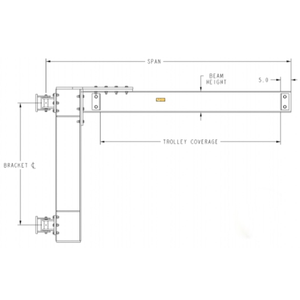

When a workstation needs repeated overhead lifts in the same spot, the Machining & Welding Cantilever Jib Crane 20 FT Span is built for the job. Its 20 foot span and 6,000 pound capacity put a hoist within reach across the full swing radius.

Because the boom swings freely, operators can pull a load away from a machine and set it down nearby in one continuous motion, cutting cycle time compared to a straight-line hoist.

A reinforced base plate anchors the mast, while the boom is engineered to carry the working load limit at any point along its span, not just close to the mast.

This is the type of crane most shops add once they notice the same manual lift happening at the same workstation day after day.

Facilities ranging from small machine shops to large distribution centers keep equipment like this on hand for the lifts that come up week after week. It is the kind of tool that earns its spot on the floor by saving time on every single pick, and it pays for itself quickly once it replaces improvised rigging on a recurring job.

Rated capacity should always be treated as a hard limit, not a target, and a quick visual inspection before each lift is one of the simplest ways to keep a lifting operation safe. Make sure your operators are trained on the specific rigging setup this equipment requires, and confirm that anyone signing off on a lift understands how to read the working load limit and match it against the actual load being moved.

Equipment that sees daily use benefits from a quick visual check every time it comes out of storage, not just during scheduled inspections. Catching a small issue, like surface corrosion or a bent component, before it becomes a larger problem keeps rigging hardware safe and in service longer.

The specifications below cover everything you need to check compatibility with your equipment.

Once installed, the Machining & Welding Cantilever Jib Crane 20 FT Span turns a single fixed mast into a dedicated overhead lifting station for everything within its swing.

Product Info:
•  Working Load Limit: 6,000 lbs
•  Boom Span: 20 ft
•  Style: Cantilever, rotating mast
•  Frame Material: Structural steel
•  Shipping Weight: 2560 lbs
