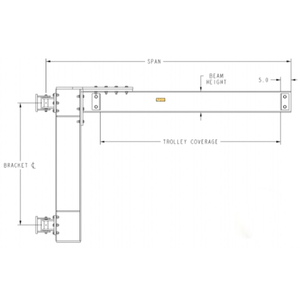

For workbenches, machine cells, and assembly stations, the Machining & Welding Cantilever Jib Crane 14 FT Span delivers a 14 foot span of rotating coverage rated to 4,000 pounds, so operators can swing loads in and out without walking a bridge crane across the building.

Mount a hoist or trolley to the boom and the whole assembly rotates, letting one operator load, lift, and swing parts into a machine, workbench, or pallet without repositioning the crane.

The mast and boom are fabricated from structural steel and designed to rotate smoothly on a bearing or collar assembly, holding the rated capacity through the full range of rotation.

A dedicated jib crane frees up your bridge crane or forklift for other tasks by handling the repetitive lifts at one station on its own.

From production floors to rail yards to municipal utility crews, this style of equipment gets used wherever a load needs to move safely between two points. Standardizing on purpose-built lifting equipment also makes training new operators easier, since the rigging setup stays consistent from lift to lift instead of changing based on whatever hardware happens to be nearby.

Pairing the right lifting equipment with proper technique keeps a shop's safety record intact. Inspect connection points regularly, respect the rated working load limit, and make sure every operator understands how the rigging is meant to be used before the first lift of the day. Small, consistent habits like these tend to matter more over time than any single piece of equipment, no matter how well it is built.

Well-built rigging hardware holds its rated capacity through years of regular use, provided it is inspected and stored properly between jobs. A dry, organized storage area away from corrosive chemicals or extreme temperature swings goes a long way toward extending the service life of steel components.

The specifications below cover everything you need to check compatibility with your equipment.

The Machining & Welding Cantilever Jib Crane 14 FT Span is ready to mount a hoist and start handling the same lift, in the same spot, day after day.

Product Info:
•  Working Load Limit: 4,000 lbs
•  Boom Span: 14 ft
•  Style: Cantilever, rotating mast
•  Frame Material: Structural steel
•  Shipping Weight: 1670 lbs
