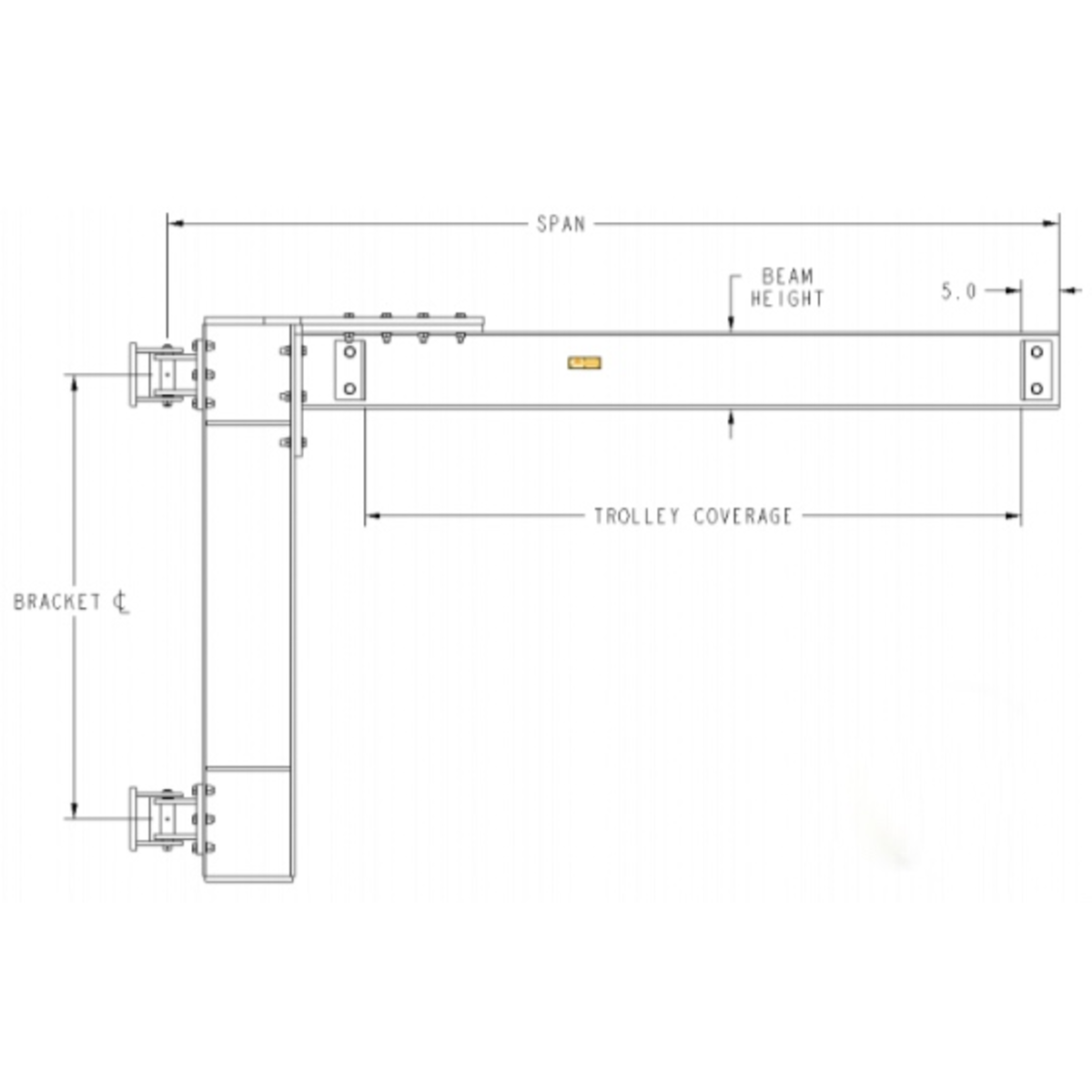

For workbenches, machine cells, and assembly stations, the Machining & Welding Cantilever Jib Crane 10 FT Span delivers a 10 foot span of rotating coverage rated to 2,000 pounds, so operators can swing loads in and out without walking a bridge crane across the building.

This style of crane is a common fit for welding bays, tool cribs, and inspection stations where parts need to move a short distance but need to move often.

Structural steel construction throughout keeps deflection low under load, and the rotating joint is built to turn under rated capacity without binding.

A dedicated jib crane frees up your bridge crane or forklift for other tasks by handling the repetitive lifts at one station on its own.

Equipment like this shows up across a wide range of industries, from steel fabrication and machine shops to warehousing, construction, and vehicle service centers. Anywhere crews need to move a load overhead in a controlled, repeatable way, a purpose-built lift beam or crane keeps the job safer and faster than improvised rigging. Once a facility standardizes on the right lifting equipment for its typical loads, operators spend less time rigging and more time actually getting work done.

Good lifting practice starts before the load ever leaves the ground: confirm the working load limit fits the job, check that all hardware is in good condition, and keep the load centered to avoid uneven strain on the rigging. These habits matter as much as the equipment itself, and they cost nothing beyond a few extra minutes of attention before each pick, which is a fair trade for a safer shop floor.

Durability matters as much as initial capacity when choosing rigging equipment, since hardware that wears unevenly or corrodes quickly ends up costing more over its service life. Choosing components built to recognized manufacturing standards is one of the simplest ways to avoid that added cost down the road.

Full specifications are listed below so you can confirm fit against your current rigging before it ships.

Once installed, the Machining & Welding Cantilever Jib Crane 10 FT Span turns a single fixed mast into a dedicated overhead lifting station for everything within its swing.

Product Info:
•  Working Load Limit: 2,000 lbs
•  Boom Span: 10 ft
•  Style: Cantilever, rotating mast
•  Frame Material: Structural steel
•  Shipping Weight: 960 lbs
