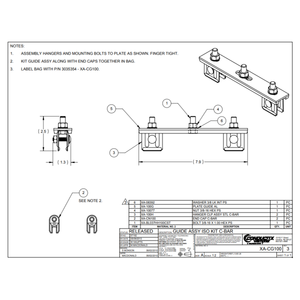

GUIDE ASSY ISO KIT C-BAR Conductix XA-CG100

The XA_CG100 is a field-installed guide assembly and insulation kit for Saf_T_Bar C_Series power conductor rails. It integrates a molded isolating guide component with mounting hardware and is available with a matching PVC cover. Designed to fix conductor segments in place, it ensures stable bar alignment and prevents electrical leakage. Ideal for use at splices, expansions, and feed points, this kit is suited for C_Series systems up to 350_A. It supports smooth collector movement while upholding system integrity. Key Features Combined guide & isolation — securely aligns conductor bar while providing electrical insulation. PVC joint cover option — helps protect the assembly against dust and moisture. Optimized for C_Series systems (≤_350_A) — perfect for typical industrial conductor installations. Snap-fit or bolt-on mount — tool-free installation with optional isolation sleeves. Field-customizable — supports retrofits or new builds without special tools. Technical Specifications Specification Details Part Number XA_CG100 Component Type Guide + isolation kit for C_Series conductor rails Compatible Series Saf_T_Bar C_Series (up to 350_A rating) Includes Molded insulating guide, fasteners, optional PVC cover Function Stabilizes rail position and provides electrical isolation Applications At splice, feed, or expansion points in conductor layouts Material Insulating plastic guide; PVC cover option
