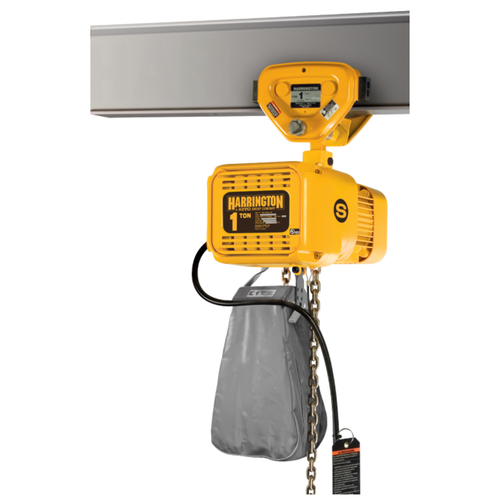

ERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/4 Tons ERP003H Electric Chain Hoist with Push Trolley HARRINGTON

Write a Review
$5,040.81 - $5,299.74
SKU: ERP003H-10
Condition: New
Availability: In stock
Weight: 93.00 LBS
Shipping: Free Shipping
Color: Yellow
Hoist Lift: 10, 15, 20
Product: Electric Chain Hoist, 500 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley
Includes: 10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords
Lift Speed: 53 fpm
Housing Width: 13 11/16 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 7 1/2 in
Housing Length: 20 in
For Minimum Beam Flange Width: 2 1/4 in
For Maximum Beam Flange Width: 4 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 13 11/16 in
Body Depth: 7 1/2 in
For Minimum Beam Height: 3 in
Body Length: 20 in
Minimum Radius Curve: 43 5/16 in
Maximum Lifting Length: 10 ft
Controller Cord Length: 11 ft
Trolley Wheel Diameter: 3 1/5 in
Lifting Hook Opening Width: 1 3/32 in
Minimum Retracted Length: 16 5/16 in
Load Capacity: 500 lb
Minimum Between Hooks: 16 5/16 in
Motor HP: 1.2 hp
Phase: 3
Standards: ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage: 208/230/460V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 11 ft
Amps @ Low Volts: 4.8 A
Number of Speeds: 1
Trolley Configuration: Push Trolley
Trolley Speed: Not Applicable
Features: Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 53 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Push Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 1 1/4 hp
Headroom: 16 5/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 500 lb
Current at Minimum Voltage: 4.8 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 2.5 A
Body Finish: Enamel
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
ERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/4 Tons ERP003H Electric Chain Hoist with Push Trolley HARRINGTON

ERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/4 Tons ERP003H Electric Chain Hoist with Push Trolley HARRINGTON

$5,040.81 - $5,299.74

ERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/4 Tons ERP003H Electric Chain Hoist with Push Trolley HARRINGTON

$5,040.81 - $5,299.74

The ERP003H HARRINGTON ERP Electric Chain Hoist with Push Trolley is a top-of-the-line equipment designed to revolutionize the efficiency and productivity of your workshop. A wide range of load Capacity, ranging from 1/4 Tons, this electric chain hoist is capable of effortlessly handling loads of various sizes. Whether you have small or heavy loads to move, this hoist is your ultimate solution.Equipped with a PT push trolley, this hoist offers an easy and cost-effective means of transporting your loads. The trolley ensures seamless and effortless moves, enabling you to transport your loads with minimal strain and maximum efficiency. By using this hoist, you not only save considerable time and effort, but you also reduce the risk of accidents or injuries.The ERP003H HARRINGTON ERP Electric Chain Hoist with Push Trolley is engineered to deliver unmatched performance and reliability. Crafted from top-notch materials, this hoist guarantees exceptional durability and longevity. You can count on this hoist to withstand the demands of your workshop for many years to come.Versatility is a key feature of this hoist. It is suitable for a wide range of applications, making it an invaluable addition to any workshop. Whether you need to lift and transport materials in a manufacturing facility, construction site, or any other industrial setting, this hoist rises to the occasion effortlessly.Safety is paramount with this hoist, as it is equipped with various safety features to safeguard both the operator and the load. An overload protection system prevents the hoist from exceeding its rated capacity, ensuring your safety. Additionally, a reliable brake system guarantees secure load holding and stops the hoist in the event of power failure. Maximize the efficiency of your workshop today with the ERP003H HARRINGTON ERP Electric Chain Hoist with Push Trolley. Its exceptional performance, durability, and versatility make it a worthy investment that will optimize your workflow and deliver improved results. Don't miss out on the opportunity to enhance the efficiency of your workshop. Obtain the ERP003H HARRINGTON ERP Electric Chain Hoist with Push Trolley now and experience the transformative difference it can make.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
