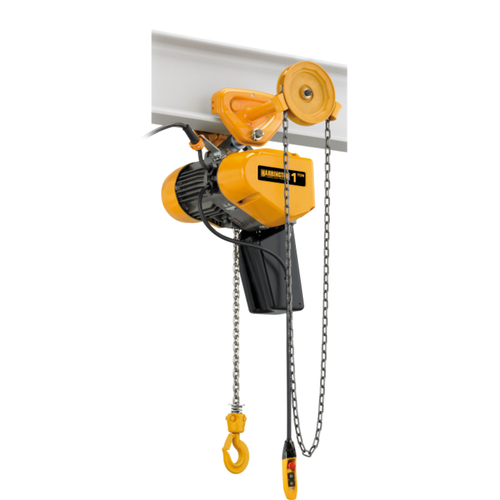

Harrington EQG Series Electric Chain Hoist with Geared Trolley - 1 Ton - 10 ft Lift

Write a Review
$4,252.35 - $4,632.63
SKU: EQG010SD-10
Condition: New
Availability: Subject to Availability
Weight: 123.00 LBS
Shipping: Calculated at Checkout
Part Number: EQG010SD
Color: Yellow
Hoist Lift: 10 ft
product: Electric Chain Hoist, 2,000 lb, Geared Trolley, Yellow Hoist Mount Geared Trolley
Includes: Chain Container
Lift Speed: 23/3.8 fpm
Housing Width: 15 29/32 in
Manufacturers Warranty Length: 3 yr
Housing Depth: 9 39/64 in
Housing Length: 19 19/64 in
For Minimum Beam Flange Width: 2 9/32 in
For Maximum Beam Flange Width: 5 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 3 yr
Body Width: 15 29/32 in
Body Depth: 9 5/8 in
For Minimum Beam Height: 3 9/16 in
Body Length: 19 5/16 in
Minimum Radius Curve: 51 3/16 in
Controller Cord Length: 6 ft
Trolley Wheel Diameter: 4 1/4 in
Lifting Hook Opening Width: 1 3/16 in
Minimum Retracted Length: 19 5/16 in
Load Capacity: 1,000 - 2,499 lbs
Minimum Between Hooks: 19 5/16 in
Motor HP: 2 hp
Phase: 3
Standards: ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 5.5 A
Number of Speeds: 2
Trolley Configuration: Geared Trolley
Trolley Speed: Not Applicable
Features: Extreme-Duty, Fan-Cooled Motor, Manually Operated Trolley, No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: 23 fpm
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: Not Applicable
Clutch Type: Friction
Minimum Lift Speed: 3.8 fpm
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant, Mount Type: Geared Trolley
Starts and Stops per Hour: 120, 240
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 2 hp
Headroom: 19 5/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 2,000 lb
Current at Minimum Voltage: 10.5 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 5.5 A
Body Finish: Epoxy Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Programmable by Internal Controls
Suspension / Mounting: Geared Trolley
Control: Dual Speed
Capacity: 1,000 - 2,499 lbs
Lift: 10 ft
Voltage: 460/3/60
Adding to cart… The item has been added
Harrington EQG Series Electric Chain Hoist with Geared Trolley - 1 Ton - 10 ft Lift

Harrington EQG Series Electric Chain Hoist with Geared Trolley - 1 Ton - 10 ft Lift

$4,252.35 - $4,632.63

Harrington EQG Series Electric Chain Hoist with Geared Trolley - 1 Ton - 10 ft Lift

$4,252.35 - $4,632.63

The EQG010SD HARRINGTON EQG Electric Chain Hoist with Geared Trolley is engineered for excellence, elevating your industrial operations with unmatched efficiency and reliability. Perfectly suited for medium to heavy-duty applications, this electric chain hoist is designed to handle your material handling needs while optimizing your productivity.

Featuring a robust construction, this hoist guarantees safe and smooth lifting operations in diverse environments such as factories, warehouses, and construction sites. The combined strength of this electric chain hoist and the precision-engineered GT geared trolley ensures that your operations are not only efficient but also built to last, tackling even the most demanding tasks with ease.

  • High-performance lifting with 1-ton capacity, designed for medium to heavy-duty applications.
  • Innovative dual speed functionality for precise control over lifting operations.
  • Durable construction that withstands rigorous use in industrial environments.
  • Seamless movement and positioning capabilities, facilitated by the precision-engineered geared trolley.
  • Advanced safety features including overload protection and emergency stop button for optimal safety.

Transform your workflow and enhance overall efficiency with the EQG010SD HARRINGTON EQG Electric Chain Hoist with Geared Trolley. This advanced hoist and trolley system not only increases productivity but also ensures maximum safety for your operators and equipment. Investing in this reliable hoisting solution means empowering your team to achieve their best performance while efficiently managing materials. Experience a new standard of operational excellence with HARRINGTON's robust electric chain hoist and geared trolley combination.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
