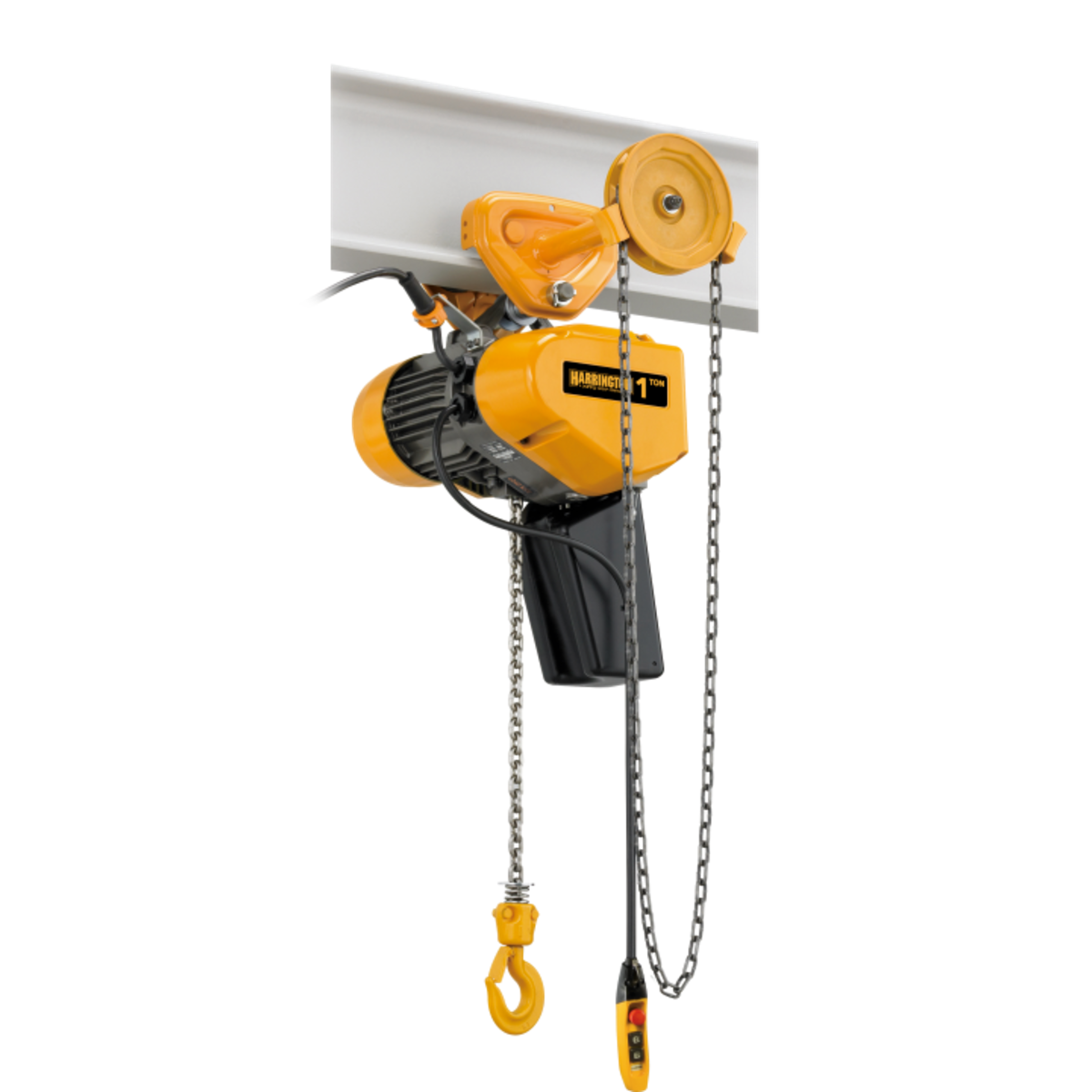

EQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1/4 EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

Write a Review
$3,790.14 - $4,135.09
SKU: EQG003SD-10
Condition: New
Availability: In stock
Weight: 99.00 LBS
Shipping: Free Shipping
Part Number: EQG003SD
Color: Yellow
Hoist Lift: 10, 15, 20
Product: Electric Chain Hoist, 500 lb., 10 ft, Geared Trolley, Yellow=Hoist Mount=Geared Trolley
Includes: Chain Container
Lift Speed: 33/5.5 fpm
Housing Width: 14 13/32 in
Manufacturers Warranty Length: 3 yr
Housing Depth: 9 7/64 in
Housing Length: 16 45/64 in
For Minimum Beam Flange Width: 2 9/32 in
For Maximum Beam Flange Width: 5 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 3 yr
Body Width: 14 13/32 in
Body Depth: 9 1/8 in
For Minimum Beam Height: 3 in
Body Length: 16 23/32 in
Minimum Radius Curve: 51 3/16 in
Controller Cord Length: 6 ft
Trolley Wheel Diameter: 4 1/4 in
Lifting Hook Opening Width: 1 3/32 in
Minimum Retracted Length: 16 11/16 in
Load Capacity: 500 lb.
Minimum Between Hooks: 16 7/16 in
Motor HP: 0.67 hp
Phase: 3
Standards: ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage: 460V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Brake: Pull Rotor
Control Cord: 6 ft
Amps @ Low Volts: 2.9 A
Number of Speeds: 2
Trolley Configuration: Geared Trolley
Trolley Speed: Not Applicable
Features: Extreme-Duty, Fan-Cooled Motor, Manually Operated Trolley, No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: 33 fpm
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: Not Applicable
Clutch Type: Friction
Minimum Lift Speed: 5.5 fpm
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Geared Trolley
Starts and Stops per Hour: 120, 240
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 5/8 hp
Headroom: 16 13/32 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 500 lb
Current at Minimum Voltage: 5.1 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 2.8 A
Body Finish: Epoxy Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Programmable by Internal Controls
Adding to cart… The item has been added
EQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1/4 EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

EQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1/4 EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

$3,790.14 - $4,135.09

EQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1/4 EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

$3,790.14 - $4,135.09

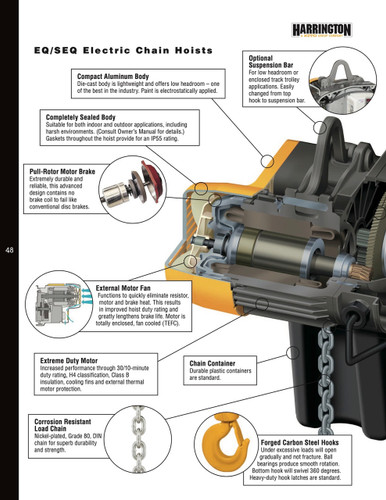

The EQG003SD HARRINGTON EQG Electric Chain Hoist with Geared Trolley is engineered for exceptional performance and durability in industrial environments. Designed specifically for medium to heavy-duty applications, this electric chain hoist elevates your operational efficiency by ensuring seamless material handling.

Packed with advanced features, the EQG003SD is outfitted with a state-of-the-art three-phase dual speed motor that allows for precise load control and superior performance. Whether lifting heavy equipment or transporting materials, you can effortlessly navigate tasks with the included GT geared trolley, enabling pinpoint placement of every load.

  • Heavy-Duty Lift Capacity: With a robust lifting capability of up to 1/4 ton, this electric chain hoist is suitable for various applications, from intricate operations to heavy machinery lifting.
  • Precision Engineering: The dual speed motor offers fine control for handling loads, providing a seamless operation that enhances workplace efficiency.
  • Exceptional Durability: Constructed from high-quality materials, this hoist is designed to withstand the rigors of daily industrial use, promising longevity and reliability.
  • Geared Trolley Included: The GT geared trolley ensures smooth and accurate movements, allowing operators to position loads with exactness.
  • Versatile Applications: This hoist can adapt to various industrial tasks, making it an invaluable tool for any job site.

Invest in the EQG003SD HARRINGTON EQG Electric Chain Hoist with Geared Trolley and transform the way you manage operations. Redefine productivity and streamline your workflow with a reliable hoist known for its industry-leading performance. Discover the difference that quality and expertise can make in your work environment with HARRINGTON's commitment to excellence.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
