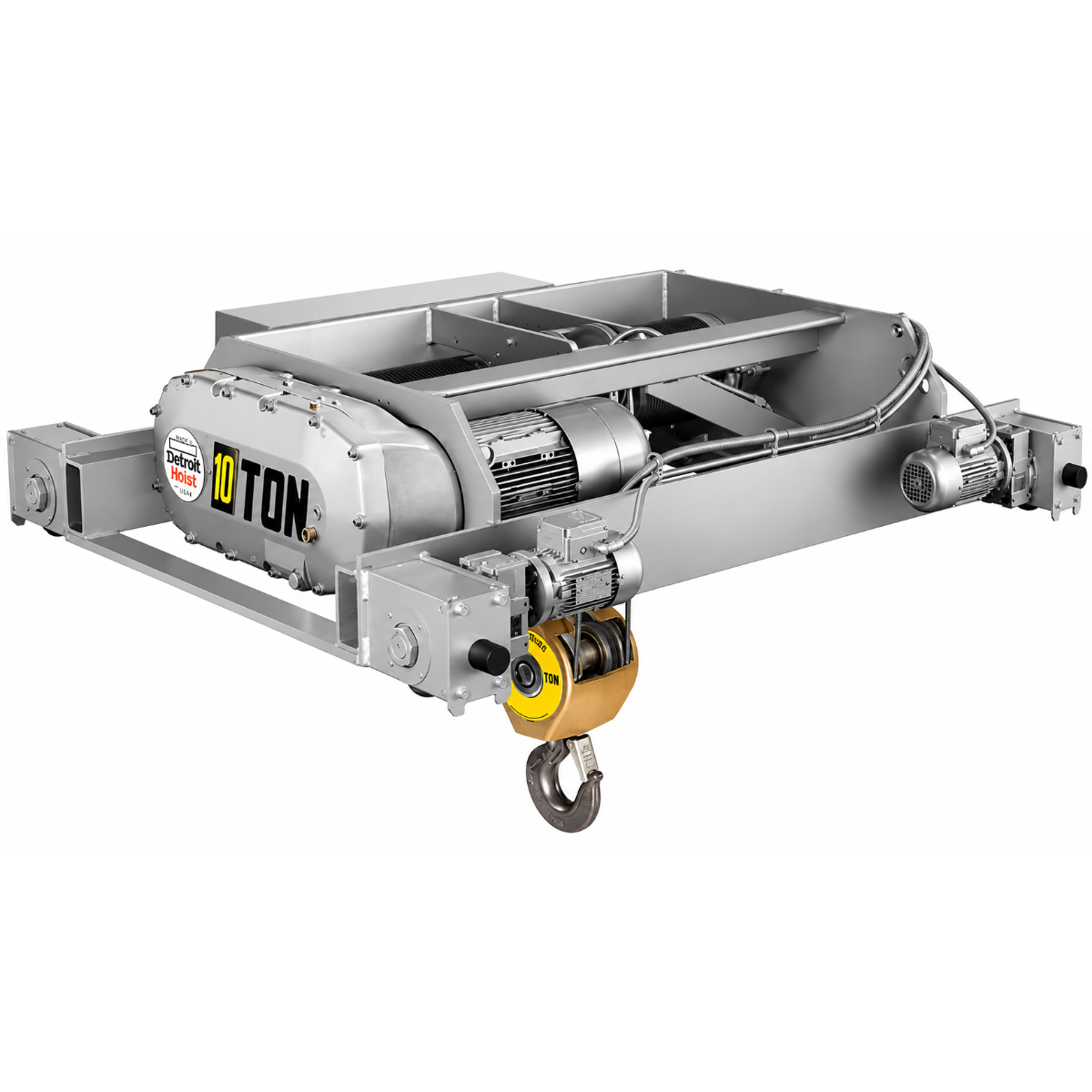

Detroit Hoist Top Running Double Girder Crane, 10 Ton Capacity, 30 FPM Lift Speed, 120 FPM Trolley Speed, 72" Trolley Gauge, Model DRF20T62-30

Write a Review
$54,000.00
$47,250.00
(You save $6,750.00 )
SKU: DRF20T62-30
Weight: 3,600.00 LBS
Shipping: Calculated at Checkout
Capacity: 20,000 - 29,999 lbs
Lift: 62.3 ft
Mounting: Top Running
Configuration: Double Girder
Voltage: 460/3/60
Adding to cart… The item has been added
Detroit Hoist Top Running Double Girder Crane, 10 Ton Capacity, 30 FPM Lift Speed, 120 FPM Trolley Speed, 72" Trolley Gauge, Model DRF20T62-30

Detroit Hoist Top Running Double Girder Crane, 10 Ton Capacity, 30 FPM Lift Speed, 120 FPM Trolley Speed, 72" Trolley Gauge, Model DRF20T62-30

$54,000.00
$47,250.00
(You save $6,750.00 )

Detroit Hoist Top Running Double Girder Crane, 10 Ton Capacity, 30 FPM Lift Speed, 120 FPM Trolley Speed, 72" Trolley Gauge, Model DRF20T62-30

$54,000.00
$47,250.00
(You save $6,750.00 )

The Model DRF20T62-30 Top Running Double Girder crane is an exceptional lifting solution designed for heavy-duty applications, offering a remarkable capacity of 10.00 tons. Built for industrial environments where strength and reliability are paramount, this crane guarantees efficient handling of substantial loads with precision.

This advanced crane model features a comprehensive 2-part reeving system, providing a lift height of 62 feet and 4 inches. Its efficient reeving mechanism ensures smooth vertical movement, catering to various applications and increasing operational productivity.

  • Maximum hoist lift speed of 30.00 feet per minute, enhancing vertical movement efficiency.
  • Robust 22.5 kW hoist motor guarantees consistent performance under heavy loads.
  • Closed-loop vector Variable Frequency Drive (VFD) for precise hoist control.
  • Exceptional trolley speed of 120.00 feet per minute for rapid horizontal transitions.
  • Two 0.86 kW motors ensure optimal trolley propulsion for superior handling.
  • Sensorless vector VFD control for accurate trolley movement and positioning.
  • Operates on standard 460VAC, 3-phase, 60Hz electric supply.
  • Compliant with CMAA standards, suited for Class D atmospheric conditions.
  • Durable trolley gauge of 72.0000 inches ensures stability during operations.
  • Weighing 3600.00 lbs, constructed with high-quality materials for stability and durability.

With its dynamic features, including AC squirrel cage inverter-rated motors and high-performance braking systems, the Model DRF20T62-30 stands out in its class for safety and efficiency. It includes adjustable electronics for upper and lower limits, ensuring precise operation while minimizing wear and tear on components. Choose the DRF20T62-30 for an unmatched blend of power, reliability, and advanced engineering, perfect for your heavy lifting needs.

The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
