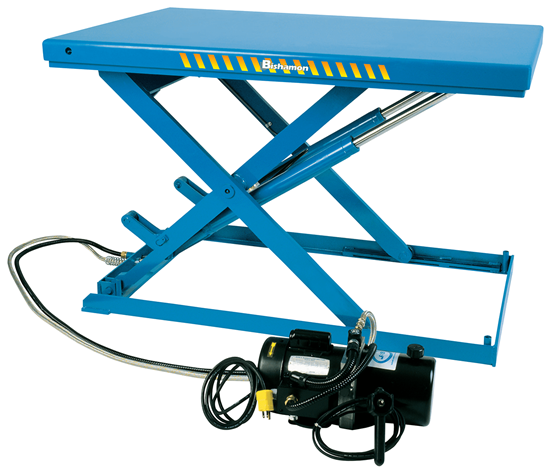

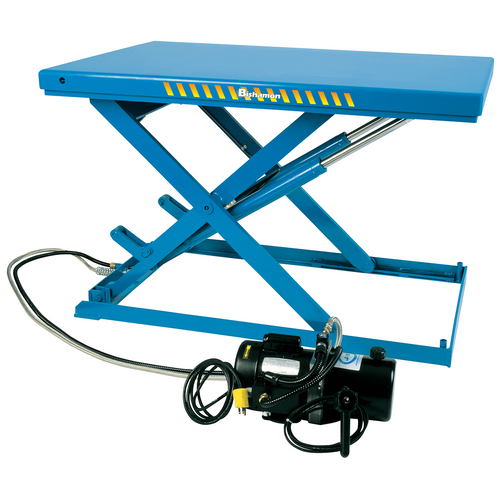

Bishamon Lo-Profile Lift Table, 4400 lb Capacity, 115V Hand Control

Write a Review
$7,553.00
SKU: LX-200NE-H
Weight: 929.00 LBS
Width: 30.00 (in)
Height: 28.00 (in)
Depth: 61.00 (in)
Shipping: Calculated at Checkout
Capacity: 2,500 - 4,999 lbs
Style: Scissor Lift Table
Table Size: 33.5 x 55.5 in
Table Height Min: 4.3 in
Table Height Max: 39.4 in
Power Type: 1 HP, 115V/230V 1-3PH/480V 3PH
Shipping Weight: 860 lbs
Adding to cart… The item has been added
Bishamon Lo-Profile Lift Table, 4400 lb Capacity, 115V Hand Control

Bishamon Lo-Profile Lift Table, 4400 lb Capacity, 115V Hand Control

$7,553.00

Bishamon LX-200N – Manual Scissor Lift Table (4,400 lb Capacity)

Heavy-Duty Lifting Power. Reliable Manual Operation.

The Bishamon LX-200N is a robust, high-capacity manual hydraulic scissor lift table built for the most demanding industrial environments. With a 4,400 lb (2,000 kg) lifting capacity, this table is ideal for heavy material handling applications such as parts assembly, machine loading, and warehouse operations where strength, safety, and efficiency are critical.

This lift table features a durable foot pump for effortless lifting and a hand-operated lowering lever for precise control. The steel construction, finished in Bishamon’s signature blue powder coat, provides exceptional strength and resistance to wear. The polyurethane wheels with brakes offer smooth mobility and secure positioning, even under full load.

The LX-200N is a dependable solution for improving productivity and reducing injury risk in workplaces that demand powerful lifting in a compact and portable design.

Key Features

  • Heavy-Duty Capacity – Handles up to 4,400 lbs (2,000 kg) with ease
  • Manual Hydraulic Lift – Smooth foot pump operation for precise lifting
  • Rugged Steel Construction – Built to last with a powder-coated finish
  • Enhanced Mobility – Polyurethane wheels with brakes for safe transport
  • Ergonomic Design – Minimizes strain and enhances operator comfort

Common Applications

  • Industrial manufacturing and assembly
  • Tool and die handling
  • Pallet positioning and loading
  • Machine maintenance and repair shops

Technical Specifications – Bishamon LX-200N

SpecificationDetails

Model LX-200N

Load Capacity 4,400 lbs (2,000 kg)

Lift Mechanism Manual hydraulic (foot pump)

Platform Size Approx. 39.5" L x 20.5" W

Lowered Height Approx. 15 inches

Raised Height Approx. 39 inches

Lift Control Foot pump (lift), hand lever (lower)

Wheel Type Polyurethane

Wheel Configuration 2 swivel with brakes, 2 rigid

Frame Material Powder-coated steel

Color Bishamon Blue

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
