Product Overview
Experienced Overview of the HBSLB-5-8 Below-The-Hook Lifting Device

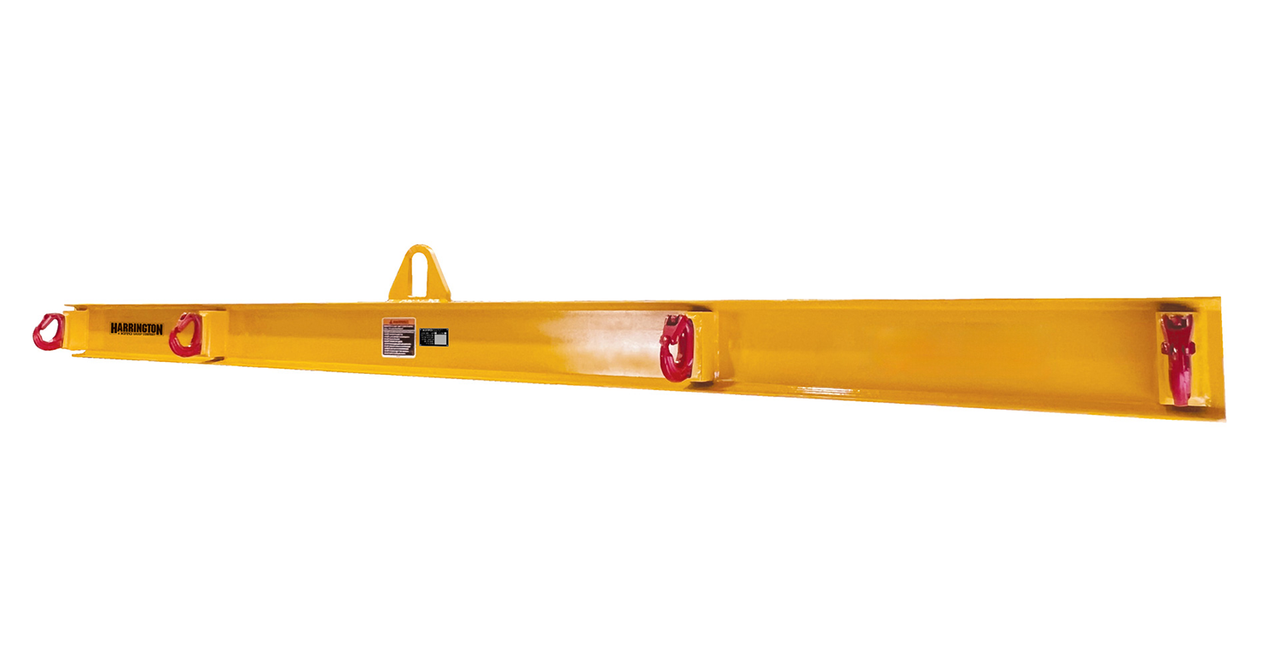

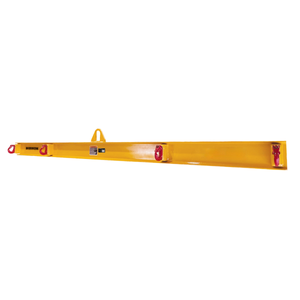

The Harrington HBSLB-5-8 Below-The-Hook Lifting Device is engineered to provide reliable and efficient lifting capabilities for heavy industrial applications. This experienced overview delves into its key specifications and features, highlighting its robust design elements that ensure precise and safe material handling operations.
Delivery: 4 weeks
Includes: TWO SETS OF FIXED HOOKS INNER SET OF HOOKS IS AT 1/2 THE OVERALL SPREAD

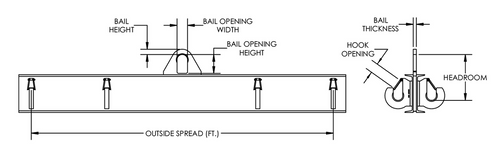

Key Specifications and Features
1. Capacity: 5 Tons
The HBSLB-5-8 is designed to lift loads to 5 tons, making it suitable for handling substantial industrial materials with ease and precision.
2. Outside Spread: 8 ft.
With an 8-foot outside spread, this lifting device offers enhanced stability and balance when maneuvering loads over a moderate distance. The wider spread contributes to improved load control and ensures safe handling during lifting operations.
3. Headroom: 17"
Featuring a headroom clearance of 17 inches, the HBSLB-5-8 provides ample space above the load for securely attaching lifting hooks, slings, or chains. This generous clearance accommodates various rigging configurations and allows for smooth lifting operations without obstruction.
4. Bail Height: 2"
The 2-inch bail height facilitates easy attachment to lifting hardware such as hooks or shackles. This height ensures compatibility with standard lifting attachments, enabling quick and secure engagement with the load.
5. Bail Opening Width: 4"
With a bail opening width of 4 inches, the HBSLB-5-8 allows for straightforward insertion and removal of lifting attachments. This feature enhances flexibility in handling different load shapes and sizes, simplifying the rigging process for operators.
6. Bail Opening Height: 7"
The 7-inch bail opening height accommodates various lifting attachments and load configurations, ensuring versatility in material handling operations. This height capability allows the device to handle diverse loads effectively, enhancing its utility in different industrial applications.
7. Bail Thickness: 1"
A bail thickness of 1 inch provides sufficient strength and durability for lifting loads to 5 tons. This robust construction ensures reliable performance during lifting operations, maintaining safety and operational efficiency.
8. Hook Opening: 1.13"
The 1.13-inch hook opening accommodates standard lifting hooks, providing secure attachment and dependable load support. This feature ensures stability and proper positioning of the load during lifting, promoting safety and operational efficiency.
9. Weight: 368 lbs.
Weighing 368 pounds, the HBSLB-5-8 balances strength with maneuverability. This weight facilitates ease of transportation and installation while ensuring stability and durability during lifting operations.
The HBSLB-5-8 Below-The-Hook Lifting Device is an ideal choice for industries requiring robust and efficient handling of loads up to 5 tons. With its sturdy construction, thoughtful design features, and manageable weight, this device ensures superior performance and operational safety in heavy industrial settings. Whether used in manufacturing, construction, or maintenance operations, the HBSLB-5-8 enhances productivity and facilitates seamless material handling processes. For industries seeking dependable and versatile lifting solutions, the HBSLB-5-8 stands out as a valuable asset, delivering exceptional reliability and performance in industrial lifting equipment.
