Atlas Lifting and Rigging Lever Hoist, Compact, 3/4 Ton, 1,650 lb, 5 ft Lift
Atlas Lifting and Rigging Lever Hoist, Compact, 3/4 Ton, 1,650 lb, 5 ft Lift

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Atlas Lifting and Rigging Lever Hoist, Compact, 3/4 Ton, 1,650 lb, 5 ft Lift

Write a Review
$489.90
$275.63
(You save $214.27 )
SKU: ALHC-0075-05
Availability: Subject to Availability
Weight: 8.82 LBS
Width: 9.49 (in)
Height: 5.20 (in)
Depth: 5.35 (in)
Shipping: Calculated at Checkout
Capacity: 1,000 - 2,499 lbs
Lift: 5 ft
Adding to cart… The item has been added
Atlas Lifting and Rigging Lever Hoist, Compact, 3/4 Ton, 1,650 lb, 5 ft Lift

Atlas Lifting and Rigging Lever Hoist, Compact, 3/4 Ton, 1,650 lb, 5 ft Lift

$489.90
$275.63
(You save $214.27 )
Description

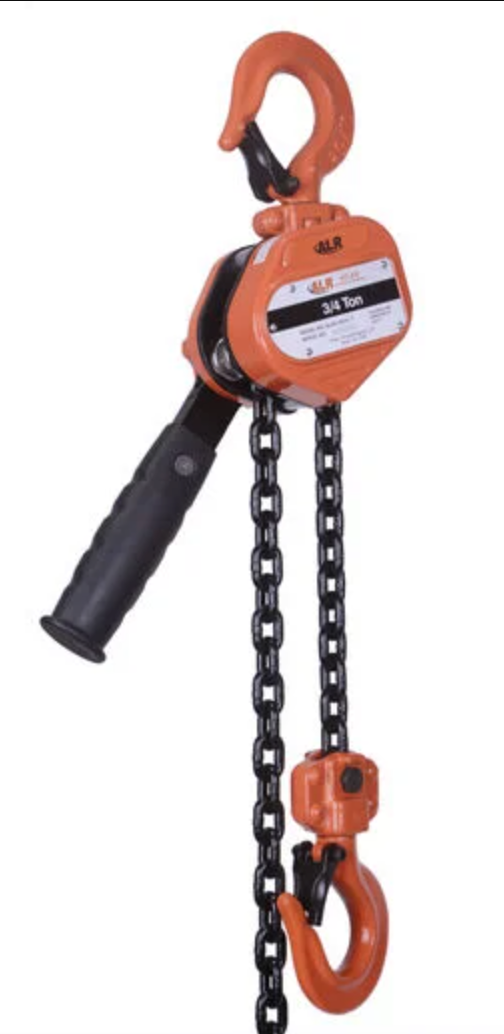

Atlas Lifting and Rigging ALHC-0075-05 Compact Lever Hoist

The ALHC-0075-05 lever hoist offers powerful lifting capability in a compact, user-friendly form. With a 0.75-ton (1,500 lbs) rated capacity and a 5-foot lift height, it is engineered for everyday lifting, pulling, and positioning tasks in tight or elevated work areas.

This hoist features a durable steel construction, an ergonomic handle, and a smooth ratcheting mechanism for easy operation. Its free-chaining function allows fast slack chain adjustment, reducing downtime and increasing job efficiency.

Key Features:

  • 0.75-Ton Capacity: Ideal for medium-duty lifting and rigging applications.
  • Compact, Portable Design: Lightweight for easy transport and use in confined spaces.
  • Free-Chaining System: Enables quick and easy slack chain take-up without load tension.
  • Heavy-Duty Steel Body: Built to withstand harsh job site conditions.
  • Swivel Top and Bottom Hooks: Forged alloy with safety latches for secure load engagement.
  • Sleek Handle: Designed for comfort and control during operation.

Specifications:

  • Model: ALHC-0075-05
  • Capacity: 0.75 Ton (1,500 lbs / 680 kg)
  • Lift Height: 5 ft (1.5 m)
  • Hook Type: Forged alloy swivel hooks with safety latches
  • Load Chain: Grade 100 heat-treated alloy steel
  • Free Chaining: Yes
  • Body Material: Steel
  • Lever Handle Length: Approx. 11 inches
  • Net Weight: Approx. 15.4 lbs (7.0 kg)
  • Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)

The Atlas ALHC-0075-05 is a dependable, compact hoist designed for real-world job sites where strength, control, and durability are essential. Perfect for field work, construction, and rigging operations.

Warranty Information
All products sold by Atlas Lifting & Rigging are warranted to be free of defects in material and workmanship from the date of shipment, with a standard limited warranty of 2 years that ALR extends by an additional 1 year (for a total of 3 years) if the product is registered through www.alrlift.com, while accessories carry a limited warranty of one year from the date of receipt; this warranty covers only the initial purchaser from the date of delivery and applies to defects in workmanship or materials subject to stated limitations, but does not cover failures due to misuse, abuse, negligence, accidents, normal wear-and-tear, improper repair, alterations, or lack of maintenance, and customers needing repair or service should contact ALR Technical Service at 1-833-ALR-LIFT, available 8AM to 5PM Monday through Friday.
