Product Overview
Capacity: 4000 lbs
This system boasts an impressive weight capacity of 4000 lbs, ensuring robust support for various applications, from industrial settings to construction projects.
Span: 14' - 0''
With a generous span of 14 feet, this system offers ample coverage, providing support across a wide area.
Clear Span: 12' - 8''
The clear span, measuring 12 feet 8 inches, ensures unobstructed space beneath the structure, facilitating smooth operations and movement.
Support Bracket Centers: 4'-6"
The support brackets are strategically spaced at intervals of 4 feet 6 inches, optimizing load distribution and stability.
Thrust/Pull: 16580 lbs
Capable of withstanding a thrust or pull force of 16580 lbs, this system exhibits exceptional strength and resilience.
Beam Size: S8x18.4#
The beams are constructed with a size of S8x18.4#, ensuring structural integrity and durability under heavy loads.
001 301-200-14 JIB, WALL TIE ROD SUPPORTED 2 TON (INDOOR)
This component, identified as 001 301-200-14 JIB, WALL TIE ROD SUPPORTED 2 TON (INDOOR), is designed to provide robust support, with a capacity of 2 tons for indoor applications.
Beam Bracket Center: 2'-0"
The beam brackets are spaced at a center distance of 2 feet, providing secure attachment points for beams and ensuring stability.
Tie Rod Length: 11'-5"
The tie rod, with a length of 11 feet 5 inches, plays a crucial role in reinforcing the structure and enhancing its stability.
Flange Width: 4.00''
With a flange width of 4 inches, the beams offer ample surface area for secure attachment and distribution of loads.
Coating & Painting: PAINT, SPRAY YELLOW
Finished with a protective coating of spray yellow paint, this system not only enhances visibility but also provides corrosion resistance, ensuring longevity and durability.

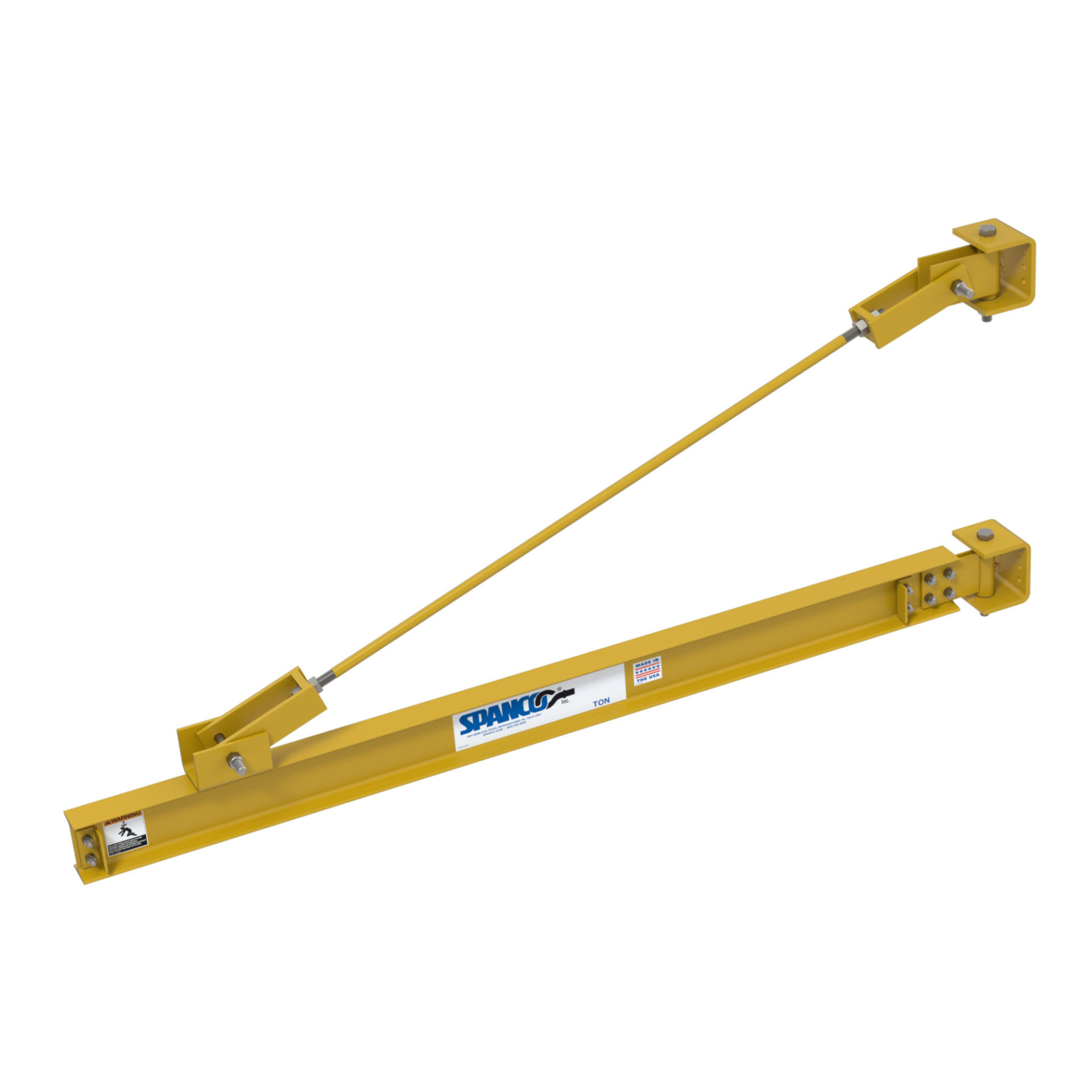

Spanco 301-200-14 JIB Crane, WALL TIE ROD SUPPORTED 2 TON (INDOOR) 14' span
Capacity:4000 lbs
Span:14' - 0''
Clear Span:12' - 8''
Support Bracket Centers:4'-6"
Thrust/Pull:16580 lbs
Beam Size:S8x18.4#
001 301-200-14
JIB, WALL TIE ROD SUPPORTED 2 TON (INDOOR)
Beam Bracket Center: 2'-0"
Tie Rod Length: 11'-5"
Flange Width: 4.00''
Coating & Painting: PAINT, SPRAY YELLOW
( Hoist not included must be purchased separately )
