Product Overview

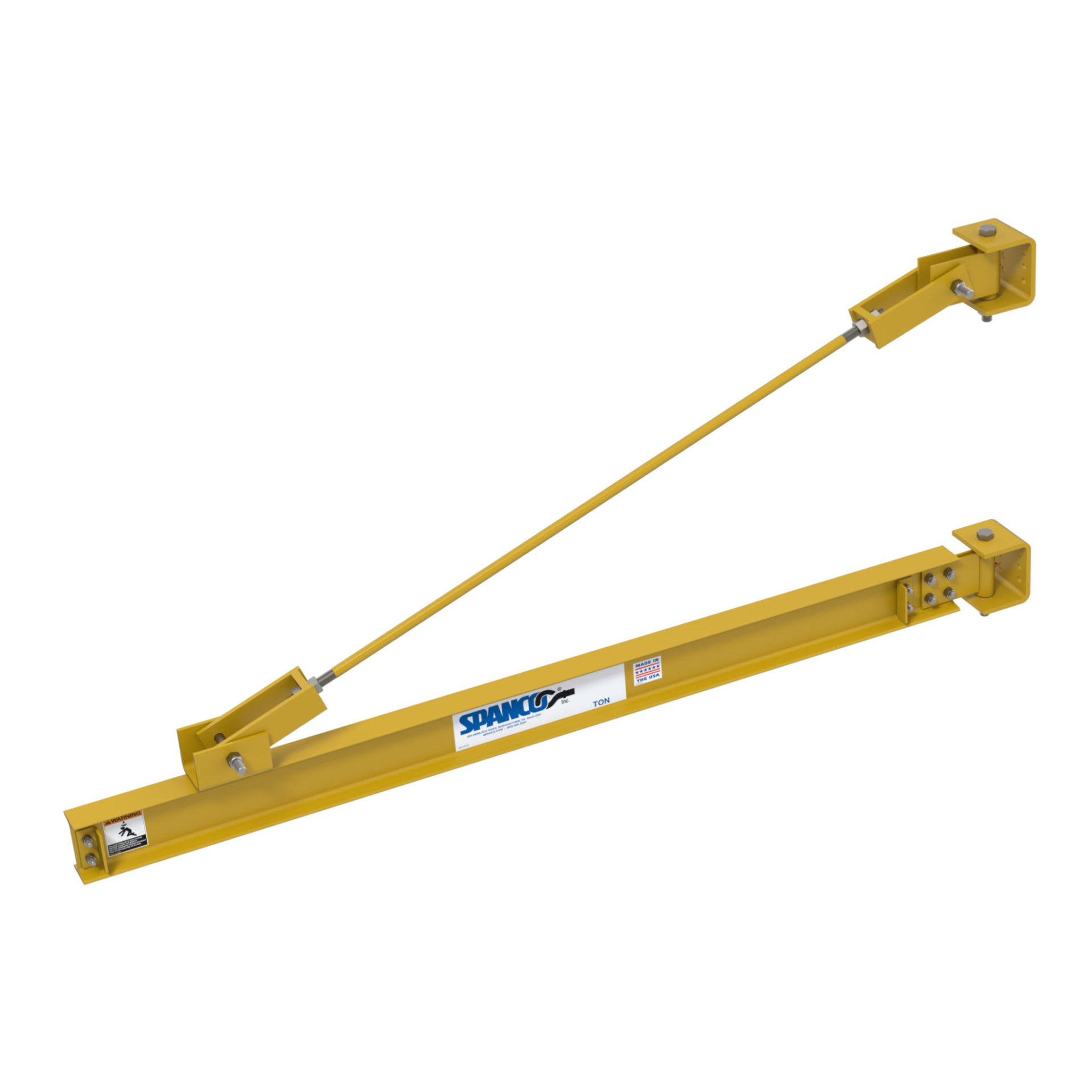

Introducing our cost-effective solution, the Tie-Rod 301 Series cranes, designed for efficiency without compromising functionality. These cranes boast a unique configuration with no support structure under the boom, allowing trolley hoists to traverse nearly the entire length seamlessly.
Featuring a wall bracket with a tie-rod supported boom, this design incorporates a standard I-beam and a single tie rod to eliminate any off-center loading concerns. The top and bottom wall brackets utilize a robust formed steel channel, complete with two bronze bushings, bronze thrust washers, and meticulously crafted tie-rod clevises. All bolted connections are placed in double shear, ensuring enhanced stability.
Swivel connections, equipped with bronze bushings and grease fittings, facilitate smooth rotation, promoting prolonged operational life and minimizing maintenance requirements. The crane's specifications include a capacity of 4000 lbs, a 12-foot span, a clear span of 10 feet 8 inches, and support bracket centers at 3 feet 9 inches. With a formidable thrust/pull capacity of 16780 lbs, this crane utilizes a 3-foot 9-inch beam, positioned beam bracket center at 1 foot 9 inches, a tie rod length of 9 feet 6 inches, and a 4.00-inch flange width.
To ensure both durability and visual appeal, the crane is finished with a protective layer of yellow spray paint. The Tie-Rod 301 Series 2-ton JIB Crane (001 301-200-12) is not just a cost-effective solution; it's a testament to ingenuity, providing reliable performance for indoor material handling while maintaining an economical edge.
Capacity:4000 lbs
Span:12' - 0''
Clear Span:10' - 8''
Support Bracket Centers:3'-9"
Thrust/Pull:16780 lbs
Beam Size:3'-9"
001 301-200-12 1
JIB, WALL TIE ROD SUPPORTED 2 TON (INDOOR)
Beam Bracket Center: 1'-9"
Tie Rod Length: 9'-6"
Flange Width: 4.00''
Coating & Painting: PAINT, SPRAY YELLOW
( Hoist not included must be purchased separately )
