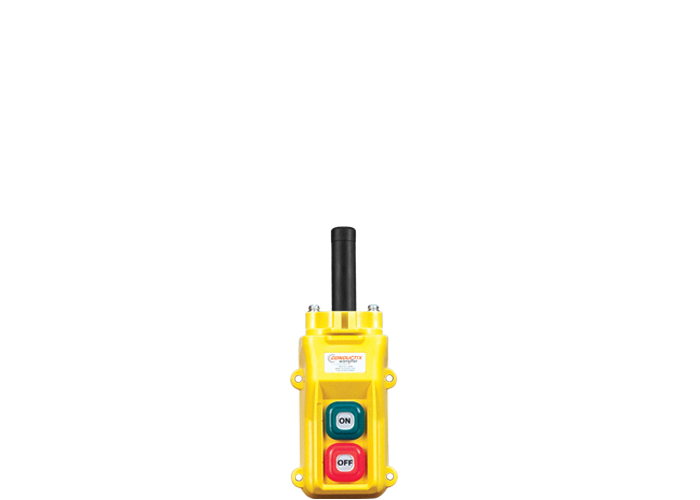

The XA_34212 is a compact, spring-ready 2-button pendant from Conductix_Wampfler’s 80_Series, built for reliability in material-handling operations. It includes two color-coded silicone-booted momentary on/off switches (red and green), a cable bushing with strain-relief hook, and a sturdy two-piece ABS housing that simplifies wiring
Key Features & Specifications
Switches: Two momentary on/off buttons—color-coded red/green
Electrical Rating: 5_A at 120_VAC (typical industrial control duty)
Enclosure: High-impact yellow ABS, UL/cUL listed, NEMA_4X/IP65 rated (water- and dust-resistant), two-piece for easy wiring
tsoverheadcrane.com
Cable Bushing: Accepts 0.30_–1.16_ (7.5–29.5_mm) cable; includes S-hook strain relief
Shock/Temp Rating: Up to 100_g shock resistance; –15_°C to 70_°C ambient temperature
Weight: Approx. 0.65_lb (0.30_kg)
