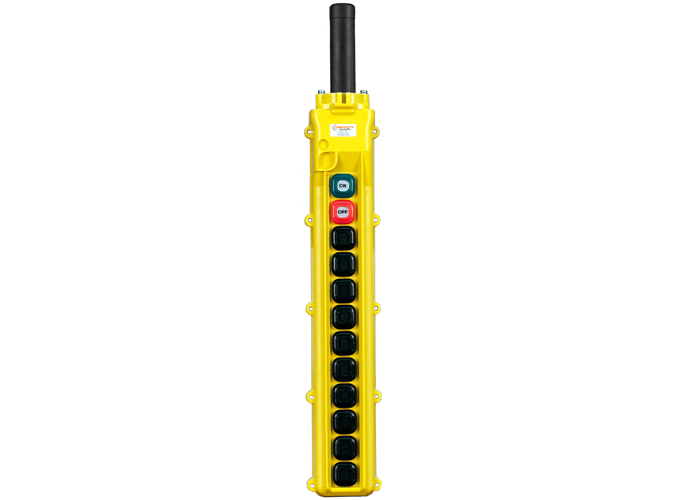

The XA_34255, part of Conductix_Wampfler’s 80_Series 12-button pendants, is a versatile, factory-assembled control station engineered for indoor industrial environments where multiple maintained dual-speed controls with momentary power switching are needed. Its key features include:
10 _ two-speed maintained selector switches — spring-return detents for reliable low/high speed operation
1 _ momentary on/off switch pair (typically red/green) for instant circuit control
Encased in a durable two-piece high-impact yellow ABS housing, the unit is UL/cUL-listed and sealed to NEMA_4X/IP65 standards, ensuring protection against dust and water ingress. It features a stepped cable bushing accommodating Ø_7.5–29.5_mm cables and an integrated S-hook strain relief for secure cable installation. With an approximate weight of 2.11_lb, this pendant balances rugged durability with ergonomic handling.
Conductix_Wampfler offers optional pre-assembly and pre-wiring services when ordered with pendant cable to simplify installation and configuration.
Key Features & Specifications
Feature Specification
Switch Configuration 10 _ two-speed maintained selector switches
1 _ momentary on/off pair
Enclosure Yellow ABS, two-piece; UL/cUL-listed; sealed NEMA_4X/IP65
Cable Strain Relief Stepped cable bushing with integrated S-hook
Weight Approx. 2.11_lb
Assembly Options Factory-assembled; optional pre-assembly/pre-wiring available
